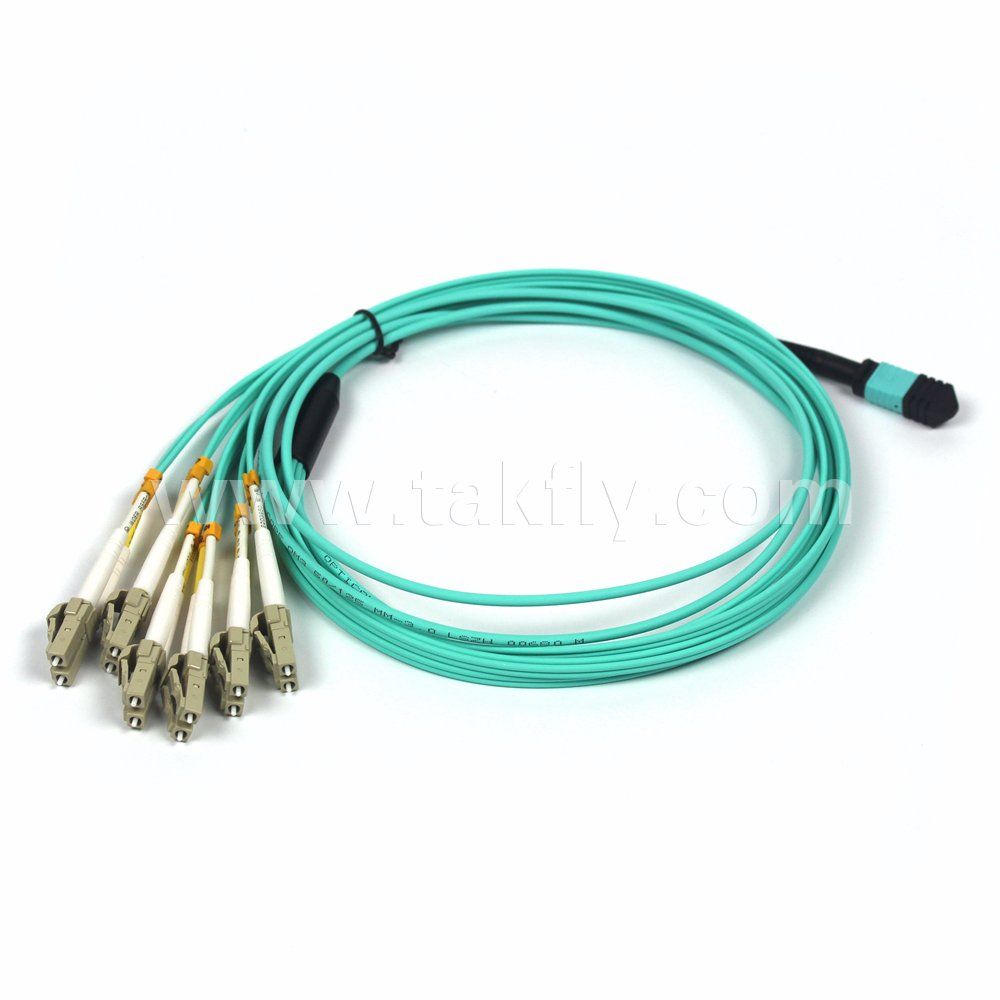

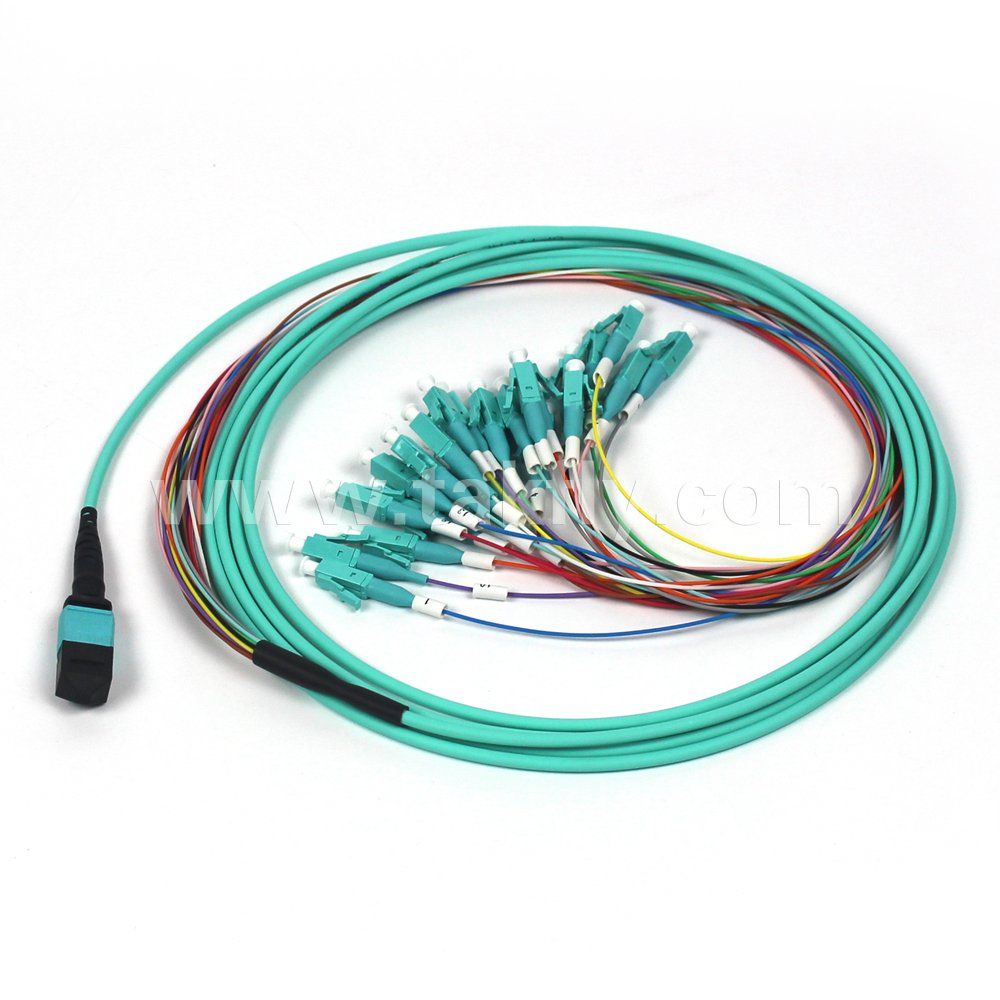

8 Cores/12 Cores/24cores Om3 Om4 Fiber Optical MPO/MTP Patch Cord

8 Cores/12 Cores/24cores Om3 Om4 Fiber Optical MPO/MTP Patch Cord
Price: US $ 20-22.2/Piece
Min Order: 10/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: MPO/MTP Patch Cord
Product Name: MPO-MPO Fiber Patch Cord
Store: in Stock
Fiber Cores: 8, 12, 20, 24
Fiber Type: OS1, OS2, Om1, Om2, Om3, Om4
Cable Jacket Color: Yellow, Blue, Green, Aqua, Red, Magenta, Beige
Application: Communication
Certification: CCC
Type: MPO
Connection Structure: MPO-MPO
Brand: Takfly
Sheath Material: PVC or LSZH

Product Description

8 Cores/12 Cores/24cores OM3 OM4 Fiber Optical MPO/MTP Patch Cord




A patch cord is a fiber optic cable used to attach one device to another for signal routing.
MPO connector realizes high density interconnection by MT Ferrule with Fiber Ribbon.

Features:
Low insertion loss, high return loss
MT based Multi-fiber Connector up to 12 fibers
High credibility and stability
Good in repeatability and exchangeability

Application:
Testing equipment
FTTX+LAN
Optical fiber CATV
Optical communication system
Telecommunication
arameterUnitFC, SC, LC/ Armoured fiber patch cord      ST, MU    MT-RJ, MPO    E2000
    SM    MMSM  MMSM  MMSM



    PCUPCAPCPCPCUPCPCPCUPCPCPCAPC























Insertion loss(typical)dB≤0.3≤0.2≤0.3≤0.2≤0.3≤0.2≤0.2≤0.3≤0.2≤0.2≤0.3≤0.3































Return lossdB≥45≥50≥60≥30≥45≥50≥30≥45≥50≥35≥55≥75































Operating wavelengthnm1310, 1510      1310, 1510    1310, 1510    1310, 1510
ExchangeabilitydB≤0.2      ≤0.2    ≤0.2    ≤0.2
VibrationdB≤0.2      ≤0.2    ≤0.2    ≤0.2
Operating temperatureºC -40~75      -40~75    -40~75    -40~75
Storage temperatureºC -45~85      -45~85    -45~85    -45~85
Cable diametermmφ3.0, φ2.0, φ0.9      φ3.0, φ2.0, φ0.9    φ3.0, φ2.0, φ0.9    φ3.0, φ2.0, φ0.9









Takfly Communications Co., Ltd. is a Hi-Tech enterprise having its own brand and specializing in R&D, manufacture and sales of fiber optical communications equipments.

The main products of TAKFLY include fiber optic patch cord, connector, adapter, optical coupler, attenuator, optic media converter, optic splice closure, optic terminal box, ODF etc, which are widely used in telecommunications, broadband, broadcast, CATV and network industry. All the products acquired the approval of the Network Access License for Telecommunication Equipment Ministry of Information Industry, PRC, ISO9001, UL and CE standard, which ensure the reliability and make them sold very well not only in the domestic market but also the overseas market.

TAKFLY was establish in 2000, grow up rapidly. Now it has workshop area about 3000 square meters, more than 200 workers, the production capacity of fiber optic connectors is about 600, 000PCS per month. It controls the quality constantly and strictly in order to give the best products to the users. The outstanding features and advantage are the high technology, professional and excellent sales team, efficient and sound management, competitive price, wide and superior channels, as well as high-quality and flexible service.

Many international exhibitions upgraded "TAKFLY" as the well-known brand in the world. To be the super leader of the optical communications scopes in China is the goal of TAKFLY. In the next five years, TAKFLY will keep the strategic pattern of development ---"based in South China, penetrate into whole country, extend over the world". It will bring the fiber optic industry into a brilliant future. TAKFLY--- Your Honest Team, will be always ready for you.
