| Prod Model: |

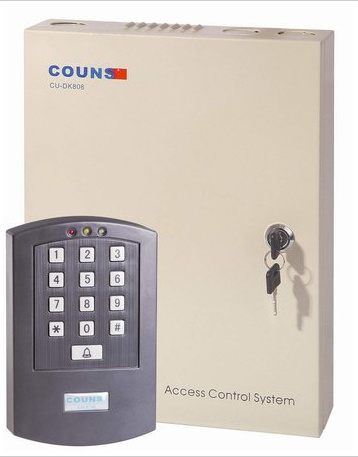

CU-DK808 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Infrared |
| Type: |
Button |
Product Description
system structure :
A DK808 host controller can connect eight F16 door , the door of each line of communication with the host controller via the RS485 connection . Multiple DK808T LAN hosts can be directly linked with the network of any one to four single PC networking ; an DK808R host via RS232 or RS485 communication via multiple DK808R with PC serial communications.
Storage capacity:
Each door controller can have 15,000 users, but eight different door controller card total of only 15,000 users . Each user has a four-digit password, use the password to open the door when reading Calgary . Each door controller has a password to open the door when the reader or to use a six-digit password to open the door . A total of eight gater 98,000 access records : Records respectively open door controller 's built-in card reader , external card reader to open the door , the limit line periods , holidays , emergency, illegal card does not open the door, tamper alarm , door different abnormal alarm recording .
restricted access time :
Controller can be set separately for each door daily limit line eight different sessions, each user can select individual lines for different time limits effective
holidays controls:
Each door controller can set up multiple holidays can also set any two week holiday ; and each user can select individually holidays valid or invalid. As effective as the holidays can also be set to be read forbidden line or holiday card and password to open the door
open mode period :
Each door controller can be set to open a day were eight different modes sessions, each session can each choose a different door model , the time period in open mode for the reader directly outside the door
system parameters :
Each door controller were set : open time ( default is 6 seconds ) ; alarm time ( default is 2 points ) ; safe mode ; magnetic door status monitoring
Real-time monitoring :
Users door , the user out, the password to open the door , open the door to go out buttons , forbidding hours , holidays , illegal card , the state of emergency does not open , tamper reported alarm, door sensor error alarm , door alarm interrupt controller communication
attendance functions:
Powerful time and attendance software , custom attendance rules and frequency settings, etc. ; scheduling flexible and practical , to solve the overtime, three shifts , Kuari attendance and other issues ; automatic statistics late, leave early , frequency and timing of absences ; attendance results can be printed a report by the Excel format or output
remote control, emergency, fire linkage function
Real prosucts ;
Shenzhen Hui Trade Industry Co., Ltd was established in the 1990 s, nearly 20 years in the automatic door control and related products field continuously explore. To products responsible for, is responsible for the customer for the development of the enterprise the premise, and with the overwhelming majority of the automatic door users provide safe, stable, with the highest cost-effective automation product categories for development goals.
In the growth process, successively in mainland area to the user with Chris dodd and, open he is cut off, the brand such as China' S total operation by the service, with the efficient, earnest, practical work for many of the same industry partners consistent approval. Now, the improved "CATERLY" automatic door unit to a lower price, consummate craft, fully functional advantages and the solid price for all the distributors love.
In 2007, in response to the changing market demand, home to more than HuiTrade joint development institutions, successfully develop T8-100 door machine translation, and 2008 years into production, so as to realize the transformation from the trade for production, trade, sales for the integration of diversified management, as the few independent research and development of one of the enterprise completely...In various special door, it has the very strong overweight door industry advantage. Products have been exported to Vietnam and southeast Asia as well as Hong Kong CATERLY "series products already has won the ISO9001: 2000 international standard authentication, and Pass CE certification.
Through the understanding of the Hui Trade to you, you will find that the choice of different channels more automation, unique solutions and the company always insists on the principle of the supremacy of the customer will let our pleasant cooperation, and in the automation channel field high-speed growth. Sincerely welcome vistit our factory to guidance, negotiations.
We, Shenzhen Hui Trade Industry Co., Ltd do our best to satisfied you.
