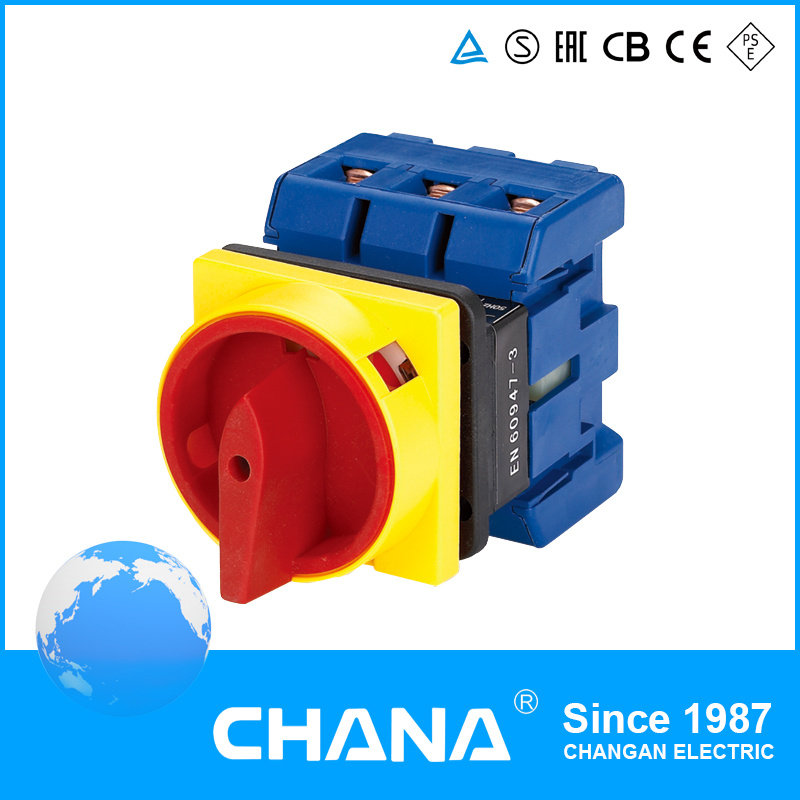

8 Pole PV DC Type Isolation Switch

Prod Model:	LW30-20
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Use Category:	DC-22A
Voltage Type:	DC
Pole:	8 Poles
Approval:	CE
Type:	High-voltage
Structure:	Single-column Disconnector
Installation:	Indoor High-voltage
Operation:	Manual
Grounding:	Double Ground
Series:	Three
Run:	Vertical Rotation
Switching Mode:	Single Throw-in
Certification:	CE
Number Of Poles:	8 Pole
Brand:	Chana

Product Description

LW30-20 type 8 Pole PV DC Type  Isolation Switch, mainly use for PV DC solar system.

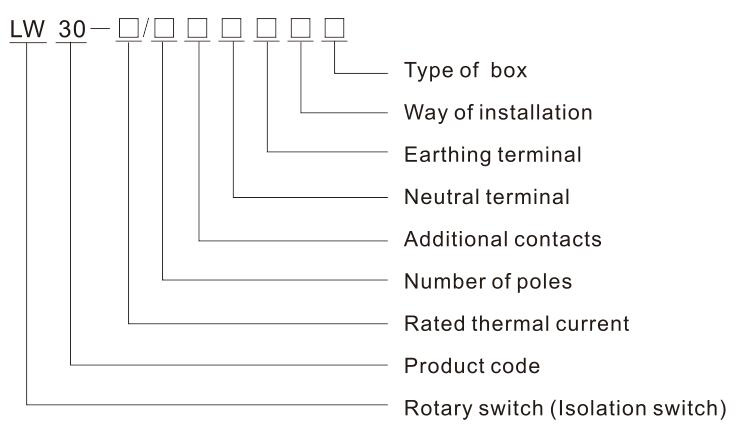

1. Order Procedurer

When you order our LW 30 series, we need your data as following:
1). Rated owrking current, for example: LW 30-20
2). Accessorial code, please write it orderly
   A) Number of pole: 1- 3P; 2-4P; 3-6P; 4-8P
   B) Do you need additional contacts: 0 without; 1 with
   C) Do you need neatral terminal: 0 without; 1 with
   D) Do you need earthing terminal: 0 without; 1 with





2. Installation and functiion:

1). Panel mounting with padlock
2). Panel mounting
3). With door interlock base mounting
4). With padlock handle/ door interlock base mounting
5). Bullet hole mounting
6) Type of box: 0- without; 1- with
7) Additional function: 0 - without; 1- with multithrow function; 2- with NO/NC auciliary contact

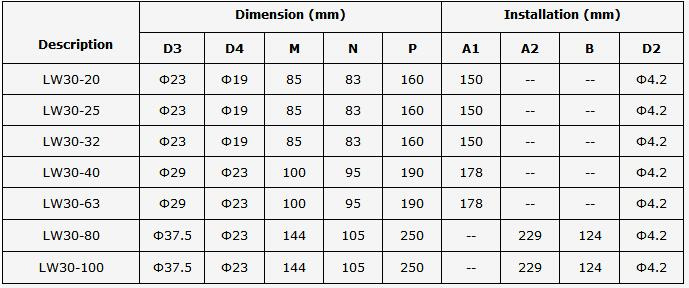

Description	Working current	Working voltage (DC)	MAX PV load voltage (DC)	Insulation voltage	Connection wire diameter (mm)
LW30-20	16A	800V	920V	1000V	Φ2.5
LW30-32	25A	800V	920V	1000V	Φ4
LW30-40	32A	800V	920V	1000V	Φ4.5

3. Shipping

1). Normally by SEA From NINGBO TO ...
2). Products are shipped via UPS / DHL / FedEx / TNT and so on expresses (door to door) If the amount is Small.
3). We Provide Drop shipping Service.
4). In order to ensure you receive your order tax free upon import, we can declare lower value according to your demand.
5). Shipping via EMS. UPS. FedEx and TNT express usually takes 3~7days dependent on the destination country.



3. Payment:

1). We usually use T/T (30% deposit before production and 70% to be paid against the copy of B/L).
2).If the Amount is small,you can pay to us by western union/Paypal/Money Gram.
3). L/C also acceptable



4. Warranty:

1). We provide 18 months warranty.
2). If the product is defective, please notify us within 10 days of delivery.
3). All products must be returned on their original condition, in order to qualify for a refund or exchange of goods
