| Prod Model: |
Queen Star Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Voltage: |
220/230VAC(1±2%) |
| Transfer Time: |
0 |
| Power Factor: |
0.99 |
| On-Load Factor: |
0.8 |
| Phase: |
Single Phase |
| Type: |
On-line |
| Protection: |
Overvoltage |
| Brand: |
Upsen |
Product Description

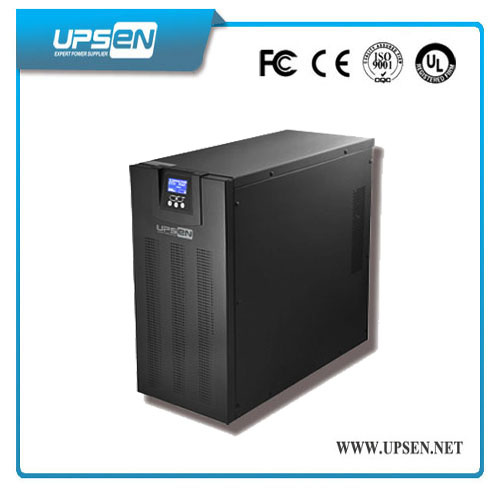

0.8 Power Factor Dual Conversion Online UPS with IGBT
Model: High Frequency Online UPS Queen Star Series 1-20 Kva (1ph in / 1ph out) (3ph in / 1ph out)
Key Features:
1:Smart RS232 port
2:cold start directly
3:UPS management software(optional)
4:Sealed lead-acid, maintenance free battery
5:Equipped with Maintenance Bypass Switch
6:Zero switching time, pure sine wave output
7:Protection against all type of power problems
8:Pure sine wave output and 0.8 output power factor
9:Double Conversion Online UPS with IGBT and DSP Tech
10:Wide input voltage range with high frequency technology
11:High Loads Compatibility and Output Overload Ability to ensure safety
12:Auto restart after utility power restore when UPS shutdown due to battery low
Applications:
Home, Office, Computer, PC, Data Room, Communication, Server, network devices, ATM, Bank System, etc.
Technical Specification
| MODEL | Q1K | Q1KL | Q2K | Q2KL | Q3K | Q3KL |
| Rated capacity | 1KVA/800W | 2KVA/1600W | 3KVA/2400W |
| Input | Voltage | 115 - 300Vac |
| Frequency | 40-60Hz / 50-70Hz |
| Power factor | 0.99 |
| Output | Voltage | 220/230Vac(1±2%) |
| Frequency |
Synchronize with utility power(utility mode);
50 / 60Hz ± 0.2Hz(battery mode) |
On-load factor | 0.8 |
| Overload rating | 125% overload,1min |
| Battery | Type | Valve-control lead acid maintenance-free battery |
| Back up time |
> 11min
(half load) |
External |
> 11min
(half load) |
External |
> 11min
(half load) |
External |
| Rated voltage | 36V | 72V | 96V |
| Transfer time | 0 |
| Operating environment | Humidity: 20%-90%, Temperature:0oC-40oC |
| Size (WxDxH)mm | 350 x 144 x 229 | 424 x 190 x 328 | 424 x 190 x 328 |
| Net Weight(kg) | 11.5 | 5.7 | 22.2 | 10 | 26.3 | 10 |
Queen Star Series Q6K-20Kva | | | |
| Model | Q6K | Q6KL | Q10K | Q10KL | 31Q10KL | 31Q15KL | 31Q20KL |
| Capacity | 6KVA/4800W | 10KVA/8000W | 15KVA/12KW | 20KVA/16KW |
| Input | Nominal Voltage | 220/230/240Vac | 380/400/415Vac |
| Voltage Range | 176~276Vac (1P2W+G) | 304~478Vac (3P4W+G) |
| Current | 31A (max) | 50A (max) | 50A (max) | 75A (max) | 100A (max) |
| Frequency | 46~54Hz/56~64Hz |
| Power Factor | ≥0.99 |
| Output | Voltage | 220/230/240± 2%Vac (1P2W+G) |
| Frequency | 50/60Hz(adjustable) 50/60Hz± 5% (Line mode)
50/60Hz ± 0.05Hz ( Battery mode) |
|
|
| Current | 27.3A | 45A | 68A | 91A |
| Power Factor | 0.8lag |
| Waveform | Pure Sine Wave |
| Waveform Distortion | Line load <2% | Line load <3% |
| Back-up Time | Full Load | ≥7′ | Depends on external batteries bank's Capacity | ≥5′ | Depends on external batteries bank's Capacity |
| Half Load | ≥20′ | ≥13′ |
| Battery Nominal Voltage | 192/240Vdc |
| Transfer Time | 0ms |
| Overload Capacity | >105% 1min, >120% 30s transfer to bypass, shut down in 1min |
| Communication | SNMP,RS-232,USB+Intelligent Slot |
| Operating Environment | Temperature | 0C~40ºC |
| Humidity | 15%~90% |
| Dimension | Width (mm) | 260 | 260 | 260 | 260 | 260 |
| Depth (mm) | 560 | 533 | 560 | 533 | 560 |
| Height (mm) | 717 | 501 | 717 | 501 | 717 |
| Net Weight(Kg) | 68 | 18 | 70 | 20 | 28 | 30 | 30 |
| *Specification are subject to change without prior notice |
