8-Shape of Self Support Communications Outdoors Optical Fiber Cable

Name: 8-Shape of Self Support Communications Outdoors Optical Fiber Cable
Brand: all-electronics-online.com
SKU: 796889835
Availability: InStock
Rating: 4.8 (108 reviews)

Price:	US $ 20-200/Roll
Min Order:	10/Roll
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	GYFTC8Y
Max. Allowable Crush(N/100m):	1000/300 (Short Term/ Long Term)
Attenuation(dB/Km):	≤0.36dB/Km@1310nm, ≤0.22dB/Km@1550nm
Minimum Bend Radius (mm):	During Installation 20d, During Service 10d
Operating Temperature (ºC ):	-40~+60
Application:	Communication
Type:	Multi-mode Fiber
Connection Structure:	SC-SC
Certification:	ISO9001
Sheath Material:	PE

Product Description

Jacket printing			Application
Per request			Used for core net, city local net and OAN and applied to aerial.
Characteristic:

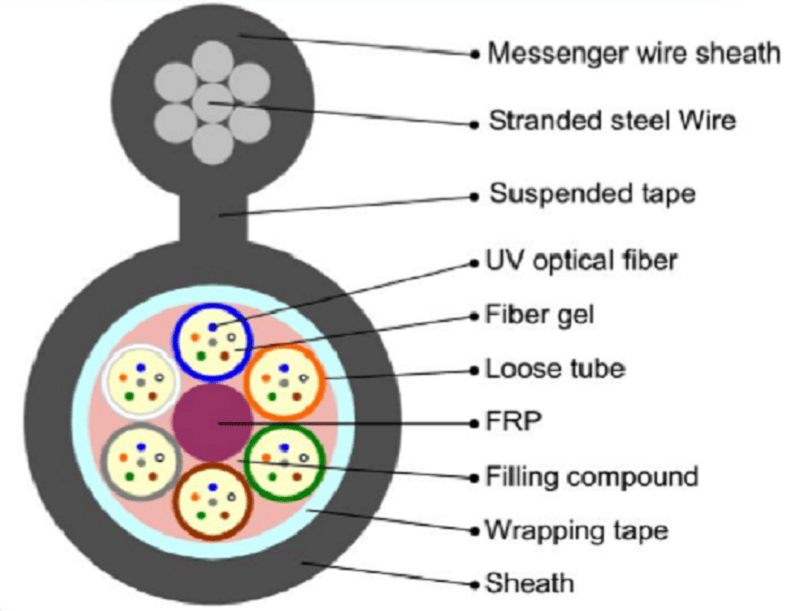

1. The messenger wire together with OFC as a whole part. OFC installation can be completed at one time. Ease construction and less affected by environment, reducing installagion cost.
2. It adopts stranded galvanize steel wire with high tensile strength, which can meet the requirement of existing telelphone pole.
3. The resonable structure design and recision control for over length ensure OFC with excellent performance of mechanical tensile strain and environment temperature.
4. It could ensure moisture and water resistant performance of OFC with filling compound filled outside strength member and inside cable core.
Technical Parameters:
Items	Unit	Index
Core No.		2~36	38~72	74~96
Diameter/Height	mm	10.5/18.5	10.7/18.7	11.9/19.9
Unit Weight	Kg/Km	170	180	210
Max. Allowable Tension	N	5000/2000 (Short Term/ Long Term)
Max. Allowable Crush	N/100m	1000/300 (Short Term/ Long Term)
Attenuation	dB/Km	≤0.36dB/Km@1310nm, ≤0.22dB/Km@1550nm
Minimum Bend Radius	mm	During Installation 20D, During Service 10D
Operating Temperature	ºC	-40~+60
