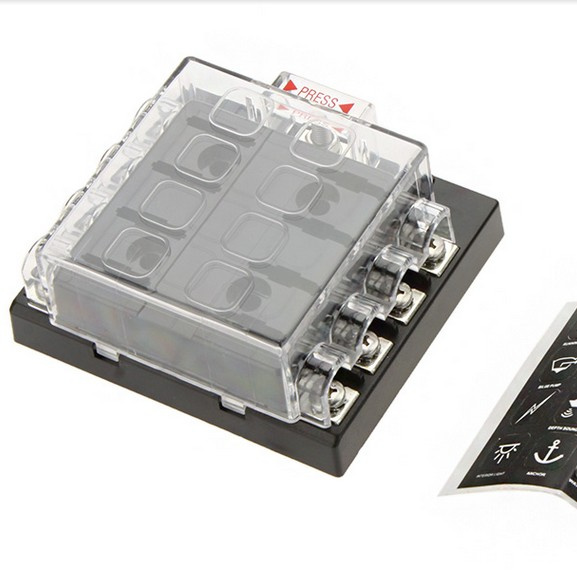

8 Way Circuit Car Fuse Box 32V DC Blade Fuse Holder Box Block Auto Car Boat Unviersal High Quality Waterproof Dustproof

Name: 8 Way Circuit Car Fuse Box 32V DC Blade Fuse Holder Box Block Auto Car Boat Unviersal High Quality Waterproof Dustproof
Brand: all-electronics-online.com
SKU: 775472275
Availability: InStock
Rating: 4.8 (75 reviews)

Price:	US $ 15-16/Piece
Trade Terms:	FOB,EXW
Min Order:	50/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	MY-008
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
For Fuse:	8 Middle-Sized Blade Fuses
Fuse Current:	150AMPS
Max Voltage:	32VDC
Temperature Range:	-20 to 150oc
Item Size:	856532mm
Item Weight:	165g / 5.8oz
Brand:	My

Product Description

Features:

For ATY-N(ATC,ATO) fuses.

6.3mm quick connect terminal.

#10-32 stud terminal with hex, nut, flat washer and lock washer supplied.

5.5mm diameter mounting holes for #10 screws.

Transparent cover for dust & humid protection.

Rugged, light weight construction.

Fuse dimension:fuse dimension:19x18x5mm

Specifications:

Circuit: 8 way

Maximum Amperage Per Ciruit: 25Amps

Max Amps Per Block: 150Amps

Maximum Voltage: 32V DC

Base Material: Thermoplastic

Cover Material: Clear Polycarbonate

Item Size: 9 * 8 * 4cm / 3.5 * 3.1 * 1.6in

Package Size: 10 * 9 * 4.5cm / 3.9 * 3.5 * 1.8in

Package Weight: 154g / 5.4oz

Package List:

1 * Fuse Box

1 * Pre-printed Sticker

*************************************************
