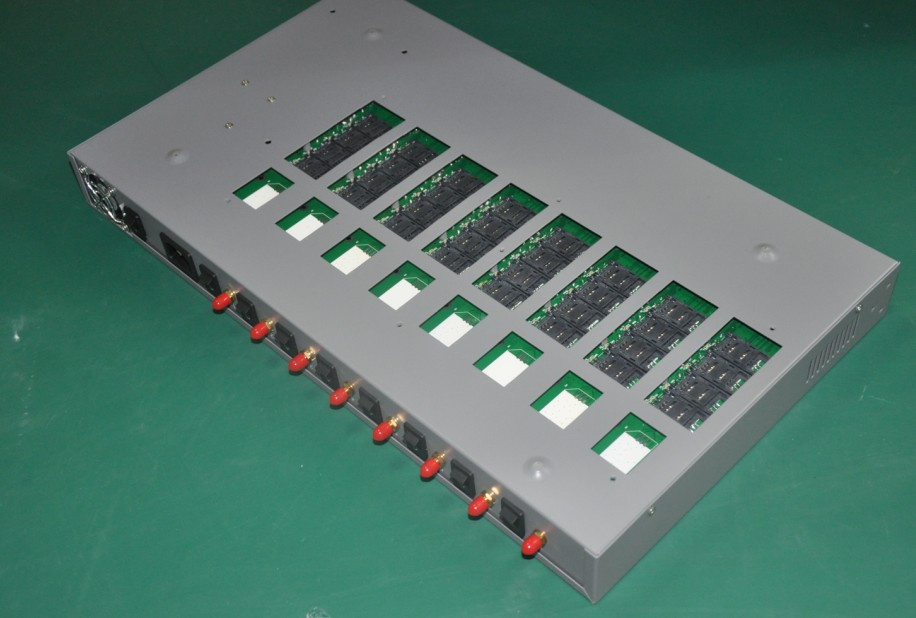

800/1900MHz 8 Channels 8 Ports 8 Ruim Cards CDMA Gateway/CDMA FWT/ Wireless Terminal/ Call Termination

Name: 800/1900MHz 8 Channels 8 Ports 8 Ruim Cards CDMA Gateway/CDMA FWT/ Wireless Terminal/ Call Termination
Brand: all-electronics-online.com
SKU: 678260255
Availability: InStock
Rating: 4.3 (82 reviews)

Price:	Negotiable
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Caller ID:	Avaialble
Dtmf:	Avaialble
Reversal Polarity:	Avaialble
Color:	Gray/Black
Type1:	Wireless
Usage:	Telephone
Support Network:	CDMA Termial
Type:	Wireless

Product Description

Brand: Etross or OEM
BrandModel No.: Etross-8888C
Product name: 8 ports CDMA FWT Ruim 800/1900MHz
Support Voice Analog
Frequencies: CDMA 800/1900MHzMHz 2000 1x RTT

Features:
1. It is a 8 channels CDMA Gateway that has 8 ports FXS interfaces;
2. It can connect with ordinary telephone set, PBX, VoIP Gateway etc.;
3, Dialing tone frequency: 450Hz;
4, Employ Industrial module ZTE 800MHz, Wavecom Q2438A( 800/1900MHz) to make;
5, Can adjust dial interval from 0.5sec to 9 secs by setting up from telephone set;
6, Can adjust voice volume by setting up from telephone set;
7, RUIM card supported (1.8V, 3V);
8) Caller ID display;
9) DTMF Dialing;
10) Bell signal;
11) Polarity reversal; 1
2) The RJ-11 socket which connect the phone or billing system for metering purpose;
13) Antenna socket (SMA);
14) IP Presetting;
15) Working status and Signal Strength by LED indicator;
16)Technical SpecificationsCDMA 800/1900MHz 2000 1X RTT

Frequency Rate
800MHz 1900MHz
RF receiving (RX): 869 ~894MHz 1930 MHz ~ 1990 MHz
RF transmitting (TX): 824 ~849MHz 1850 MHz ~ 1910 MHz

Phone interface: Supply RJ-11 Phone Interface
Hanging voltage: 45V
Picking off voltage: 30mA / 41mA
Dialing tone Frequency: 450HzAntenna
Interface: SMA
Antenna amplifying>1.5dB
Sensitivity: <-104dBm
Transmitting power<3W
Adapter interface: INPUT: AC 175~260VOUTPUT: +12V/1000mA
Transmitting Power: 2W
Sensitivity: <-104dBm
Antenna Amplifying: >1.5dB
Dialing frequency: 450HzHanging voltage: 45VPicking current: 30mA/41mA

Operation Circumstance:
Operation temperature: -10c~60C
Storage temperature: -20C~70C
Operation humidity: 45%-95%
Atmosphere pressure: 86-106Kpa
Environment noise: <60dB

Package(Standard carton, 1PCS/carton):
Color: GreySize: L455x W280 x H45mm
G. W: 4.5kg

General:
Shenzhen Etross Telecom Co., Ltd is a high-tech telecom company which specializes in developing and manufacturing wireless products, including GSM/CDMA/PCS FWT, FWP, And PC Multi user Share & Network Computing Terminal etc. For years, we have been devoted to providing good quality and hi-tech products to our clients, to be a China gold supplier of Telecom and IT products, we have operated around 7 years since 2000.

Business Description:
Currently we have several modern production lines producing GSM/CDMA/PCS FWT and FWP series devices, and coordinated factories producing Multi user PC share & Network Computing terminal products. The production capacity can reach 1000 sets a day. In our company's R&D center, our experienced engineers are working to develop new high technology to guarantee our products' good quality and competitive advantage in the market. And some of our products have passed CE, FCC &RoHS certification.

Etross series products have been sold to more than 100 cities in China and exported to over 40 countires spread over South Asia, Middle East, Africa, South America, Europe And North America. And also get good market share in some countries.
