| Prod Model: |
NK8000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item: |
Built in MPPT/PWM Charge Controller |
| Model: |
5kw-10kw |
| Warranty: |
1 Years |
| Color: |
Black&Orange |
| UPS Function: |
Online |
| LCD&LED Display: |
Available |
| Transfer Time: |
5ms |
| AVR Voltage Range: |
Auto-Sensing |
| Waveform: |
Pure Sine Wave |
| OEM: |
Available |
| Phase: |
Single |
| Type: |
DC/AC Inverters |
| Power Source: |
Solar Power |
| Output Power: |
>1000W |
| Application: |
Solar System, Home System. |
| Brand: |
Yompower |
Product Description
Features and function
1 Pure sine wave output
2 CPU control technology; SCM control
3 Strong ability of impact resistance
4 Have UPS function and AC charger function
5 Wide input voltage range: 145-275V; three step AVR (two step -up, one step -down)
6 Protection against overload, short-circuit, overvoltage, under-voltage and over-temperature, etc.
7 Anti reverse connection protection and high-low voltage protection(option)
8 Special overload protection: when it is overload, it will lock the unit automatically,when it restores,it will restart the unit automatically again.
9 Strong inverter ability. It can change frequency immediately and it is able to drive the inductive load such as air conditioner, refrigerator, motor, etc.
10 LCD display
11 Meet the need of different power supply
12 Can choose working mode by yourself
13 Built in with MPPT/PWM solar charge controller
Working Mode Option
1,The city power priority: when city power is available ,the inverter will work AC output , city power will supply to load ; when have both city power, inverter will charges power to battery . when city power failed, inverter will use battery power talk the load .
2,Solar power priority : when it have solar power , solar power charges the battery and take the load , when it does not have solar power,inverter will use battery power take the load , when battery power is lower ,inverter will automatically use ups function, use city power talk the load and charge the battery .
Application of solar energy system
This is a new type of electricity system, designed to resolve the problem of power shortage for the families, companies and other places. It can use for solar power system ,light, radio, DVD, TV set, fans, freezer, computers, small hand-drill, and communication equipment. The inverter /UPS is widely used in the field of family houses, schools, hospitals, offices, etc.
Technical Specifications

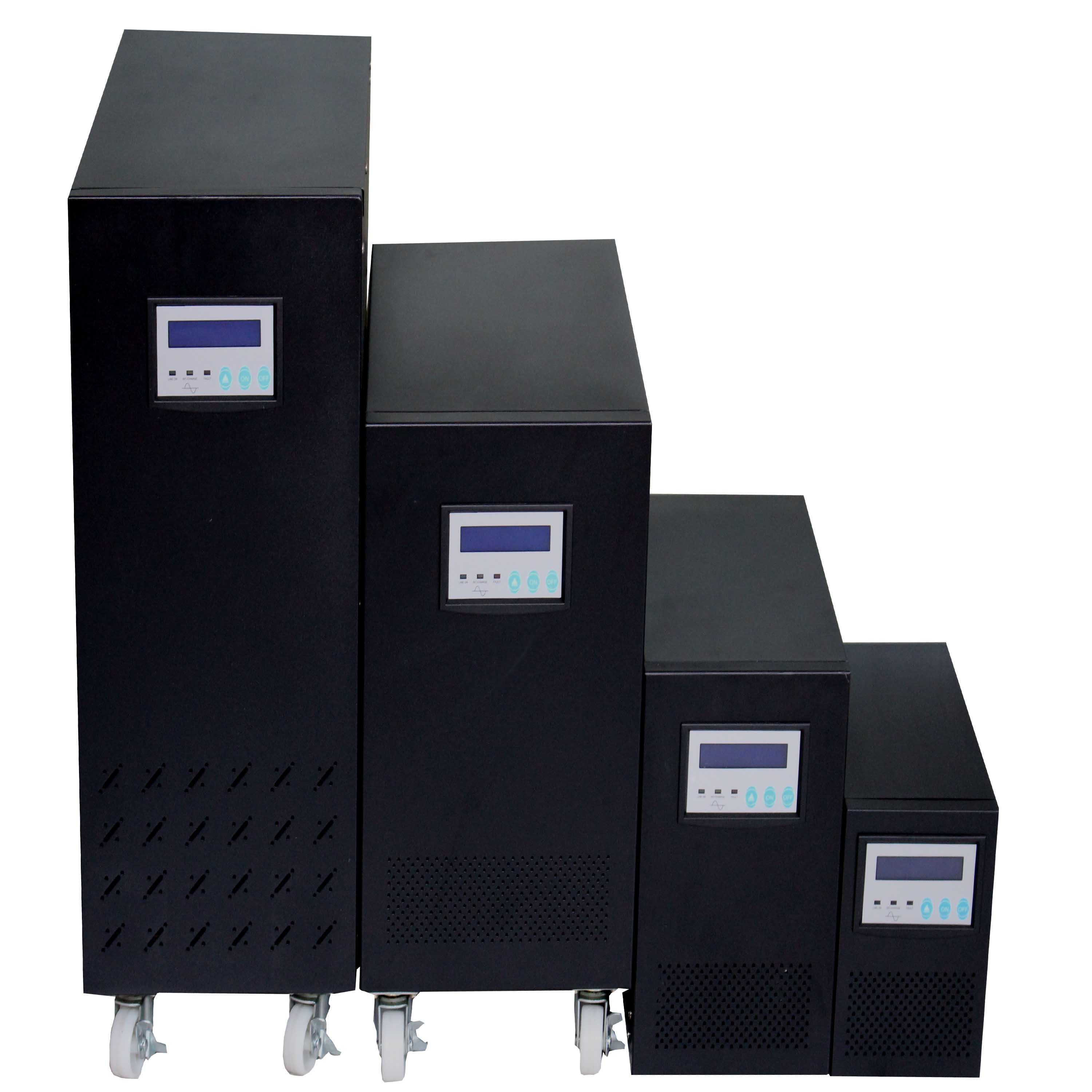

Pure Sine Wave Solar Power Inverte With Controller |
| Model | 5KW | 8KW | 10KW |
| Inverter Rated capacity(W) | 5K0W | 8KW | 10KW |
| Inverter Input | Rated Battery Voltage | 48V | 96V | 192V | 96V | 192V |
| Commercial Power range (VAC) | 100/110/120/127/220/230/240 (+25%,-35%) |
| Frequency(Hz) | 50±0.5/60±0.5 |
| Solar Input | Input power(W) | 2400W | 4800W | 19200W | 4800W | 19200W |
| Maximum power (WP) | 4800WP | 9600WP | 38400WP | 9600WP | 38400WP |
| Solar Controller (Optional) | Control Type | PWM or MPPT (Optional) |
| Rated Voltage | 48V | 96V | 192V | 96V | 192V |
| Rated Current | 50A | 50A | 100A | 50A | 100A |
| Equilibrium charging | 58V | 116V | 232V | 116V | 232V |
| Float charging pressure | 54.8V | 110V | 220V | 110V | 220V |
| Under voltage protection | 44.4V | 88.8V | 178V | 88.8V | 178V |
| Inverter Output | Rated capacity | 5KW | 8KW | 10KW |
| Waveform | Pure sine wave |
| Frequency(Hz) | 50±0.5/60±0.5 |
| AVR voltage range(VAC) | No(Auto-sensing ) |
| Protection | Over Load Protection | 30 seconds delay shutdown for 105~130% exceeded |
| Battery | Type | Sealed, maintenance-free lead acid |
| Battery protection | Automatic self-test, discharge protection, over-charge protection, smart management system. |
| Recharge current | 30A(Maximum) |
| DC voltaget | 48V | 96V | 192V | 96V | 192V |
| battery input voltage range | DC:44V~60V | DC:88V~120V | DC:176V~240V | DC:88V~120V | DC:176V
~240V |
| Working Environment | Working Temperature | 0ºC ~ 40ºC (0m~1500m) |
| Noise | 60dB |
| Store Temperature | 0ºC ~ 40ºC |
| Humidity | <95% |
| Size(L*W*H) | 470*260*500mm | 550*260*710mm |
| Packing Size(L*W*H) | 540*320*560mm | 620*330*770mm |
| Net weight(kg) | 42 | 72 | 72 | 82 | 82 |
| Gross weight(kg) | 46 | 77 | 77 | 87 | 87 |
| Remarks | Specifications subject to change without prior notice |
| Our company accept customized special specifications products |
Payment and Shipping
1. We accept T/T, Paypal, Western Union, Money Gram;
2. For sample, it's better via Paypal or Western Union; For quantity order, we can go for T/T;
3. For small order, we usually transport by express like FedEx, DHL, TNT, EMS.
For big order, we can ship by air or by sea.
