| Prod Model: |
DX8000W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Western Europe |
| Rated Power: |
8000W |
| Peak Power: |
16000W |
| Input Voltage: |
DC96V |
| Output Voltage: |
AC220V |
| Output Frequency: |
50/60Hz |
| Computer Monitor: |
RS232 |
| Charger Short Circuit Protection: |
Trip |
| Charger Type: |
Three Step |
| Size: |
310*610*520mm |
| Nw: |
78kg |
| Power Source: |
Electric Power |
| Type: |
DC/AC Inverters |
| Phase: |
Three |
| Brand: |
Doxin |
| Output Power: |
8000W |
Product Description

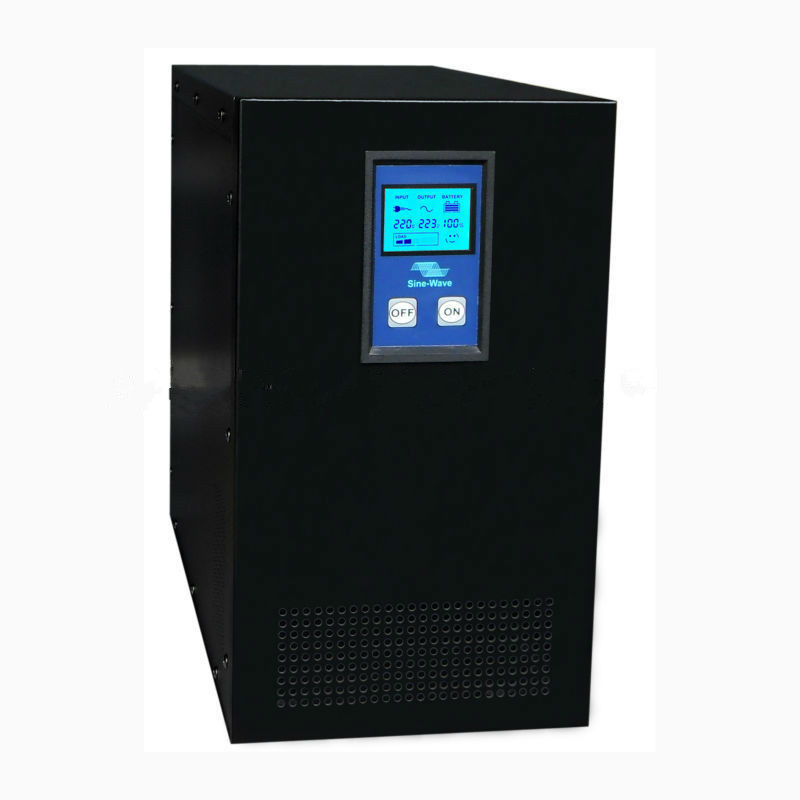

8000W pure sine wave DC96V to AC220V 230V Power low frequency inverter UPS LCD display with battery charger
Specifications
1.Pure Sine Wave Off Grid Tie Inverter 8000W
2.Wide input voltage range
3.PFC for charger
4.High overload ability.
5.CE certification
Featurespure sie wave inverte
1. Rated power: 1000w 2000w 3000w
5000w 6000w 8000w 10000w
2. NEW funcitons: RS232 port
Charge current adjustable
3. DC voltage: 12V DC, 24V DC, 48V DC, 96V DC
4. Battery charger buit in: 35-70amp
5. Pure cooper transformer buit in: YES, dimension: 375*130*190MM or 450*215*180MM or 620*215*180MM or 310*610*520MM
6. Charge mode: Three stage, boost Constant Current; Boost Contant Voltage;
Float(with small current)
7. Capable of starting electric motor: 1HP for 1000w-2000w; 2HP for 3000w-4000w;
3HP for 5000w-6000w
8. Over-load & Output short circuit protection: circuit breaker
Technical Specification
Type: | DX2000W | DX3000W | DX5000W | DX6000W | DX8000W | DX10000W |
| | DC12V | DC24V | DC48V | DC12V | DC24V | DC48V | DC48V | DC48V | DC96V | DC96V |
| 1.AC Mode Specifications: |
| Input wave form | pure sine wave |
| Input voltage | 220Vac |
| Low voltage cut off | 145Vac±4% | 165Vac±4% |
| Low voltage recover | 155Vac±4% | 175Vac±4% |
| High voltage cut off | 285Vac±4% | 265Vac±4% |
| High voltage recover | 275Vac±4% | 255Vac±4% |
| Frequency | 50Hz/60Hz(Atomatic detection) |
| Output wave form | pure sine wave |
| Overload protection | alarm |
| Short circuit protection | trip |
| Efficiency | >95% |
| Transfer current | 30A | 60A |
| Transfer time DC TO AC | 10ms |
| Transfer time AC TO DC | 10ms |
| 2.Inverter Mode Specifications: |
| Rated power | 2000W | 3000W | 5000W | 6000W | 8000W | 10000W |
| Power factor | 0~1.0 |
| Output voltage | 220Vac |
| Frequency | 50Hz ± 0.3Hz |
| Automatic tracking the main frequency | Yes(start from the first connection)50Hz @48-54Hz/ 60Hz @58-64Hz |
| Inputvoltage range | ±10% rms | (-25%/+20%) rms |
| Efficiency | >80% |
| Overload protection | (110% |
| (SMPS load) | (125% |
| Peak Capacity | 4000VA | 6000VA | 10000VA | 12000VA | 16000VA | 20000VA |
| Short circuit protection | Yes |
| Input voltage | 12V/24V/48V/96V |
| Min DC voltage | 10V/20V/40V/80V |
| Undervoltage warning | 10.5Vdc ± 0.3Vdc (12V battery)/42Vdc±1.2Vdc(48V battery) |
| 21.0Vdc ± 0.6Vdc (24V battery)/84Vdc±2.4Vdc(96V battery) |
| DC input too low, | 10.0Vdc ± 0.3Vdc(12V battery)/40.0Vdc±1.2Vdc(48V battery) |
| Automatic cut off | 20.0vdc± 0.6Vdc (24V battery)/80.0Vdc±2.4Vdc(96V battery) |
| input voltage warning &cut off | 15Vdc ± 0.3Vdc (12V battery)/30Vdc ± 0.6Vdc(24V battery) |
| 60Vdc±1.2Vdc(48V battery)/120Vdc±2.4Vdc(96V battery) |
| Save power | load≤25W |
| 3.Charger Mode Specifications: |
| Chargering current | 50A | 25A | 15A | 50A | 25A | 15A | 15A | 15A | 15A | 15A |
| Chargering current correction | ± 5Adc |
| Battery initial voltage | 0 -13.7 Vdc |
| Charger short circuit protection | trip |
| Overcharger protection | V ≥14.7Vdc / 30.4Vdc, every half second sounds |
| 4.Charging Rules: |
| Three Phases | constant current chargering →constant voltage phase →float |
| 5.Monitor | |
| Computer Monitor | RS232 |
| 6.Protection | |
| Low Voltage | LCD show low battery alarm |
| High Voltage | alarm |
| Inverter Mode overload | shut-down protection |
| Over Temperature | Heatsink temperature.≥90°C,shut-down protection |
| 7.Physical | |
| Operate Temperature Range | 0°C to 40°C |
| Store Temperature | -15ºC ~ 60ºC |
| Operate Humidity | 5% to 95% |
| Noise | 60dB max |
| Cooling | fan in ventiltation conditions |
| Dimension(L*H*W) | 450*215*180MM | 450*215*180MM | 620*215*180MM | 310*610*520MM |
| N.W (KG) | 20KG | 20KG | 20KG | 24KG | 24KG | 24KG | 44KG | 46KG | 80KG | 90KG
|
Main features:
1,low frequecy sine wave with Charge(HOME UPS).Never harm to any load
2,Thansfer time 10ms, Computer will not shut off when mains oss suddenly.
3,Digital control three stage charger, improve battery life
4,with battery selection for charger, improve battery life
5,prover saver function(Stand by)
6,High power Factor0.8
7,Low DC input,1-3KW/12V(24/48)VDC,4-5kw/24v(48)VDC,easy to arrange battery bank
8,Low idle current to reduce energy consumption
9,Big charge current, 35A-75Amp for different mode
10,Back-feed protection
11,full protection short circuit, overload, over temp, battery low/high protection
12,fault recovery
13,LED display and alarm
14,Remote control solution
15,Rs232 communication function optional, display and control product running by computer
16,SNMP Net agent function optional display and control product running by internet
17,Renote control cable optional
18,LCD display is optional
19,Wall mounting and tower type
Application:
* Office Equipment,Notebook Computer,Mobile Telephone,Printer,Display.
* Television,Video Recorder,Acoustics,DVD,VCD and Fridge etc.
* Outdoor lighting,Microwave Oven,Cooking etc.
* Electric Tool,Vehicle seek help,Do rescue and Relief work etc.
* PDA,Digital Camera,Battery Charge and GPS Satellite Navigation
