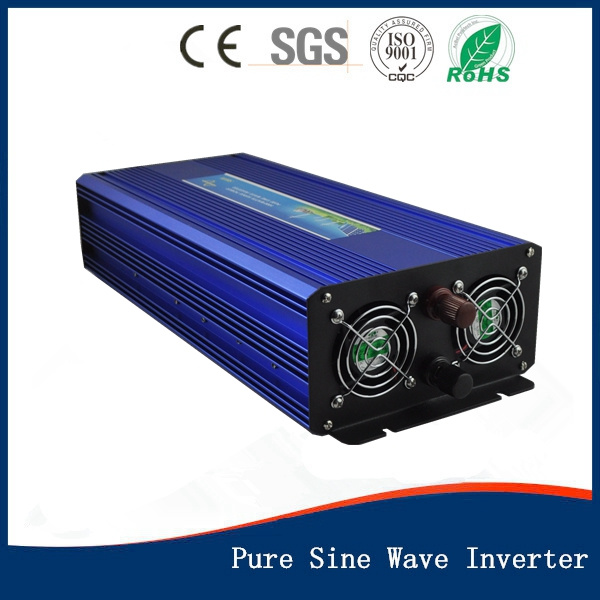

800W Pure Sine Wave UPS Inverter with Bypass (UPS Function)
| Price: |
US $ 102-125/Piece |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Paypal |
| Prod Model: |
CZ-800H |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power: |
800W |
| Function: |
Inverter with Bypass (ATS Switch) |
| Warranty: |
24 Months |
| USB Port: |
Available (5V) |
| Input Voltage: |
Optional |
| Output Voltage: |
Optional |
| Color: |
Blue/Silver |
| Phase: |
Single |
| Type: |
DC/AC Inverters |
| Power Source: |
Solar Power |
| Output Power: |
1000W |
| Application: |
Solar/Wind Power System,Home Use |
| Brand: |
Yompower |
Product Description
FeatureBattery Power First:The inverter will use the battery power first,if the power runs up,it will turn to use the grid power automatically by ATS switch.
Grid Power First:Will use the grid power first,if the city power cut down,will turn to use the battery power automatically by ATS switch.
Notice: This model can not charge the battery from the grid, if you want inverter with charge function,find our CZ-XXC series.1. Input & output fully insolated
2. High Surge: High surge current capability starts difficult loads such as TVs, camps, motors and other inductive loads
3. Grounding Protection: There is terminal in front panel, you can ground the inverter.
4. Soft start: Smooth start-up of the appliances.
5. Pure sine wave output waveform: Clean power for sensitive loads.
6. AC output identical to, and in some cases better than the power supplied by your utility
7. Cooling fan in the inverter is thermally activated and comes on when the inverters becomes warm, and turns off automatically after the inverter has cooled.
8. Low total harmonic distortion: Below 3%
9. Three LED indicators on the front panel shows the working and failure state.
Protection Function:
1. Low voltage alarm & Shutdown
2. Over-voltage protection
3. Overload protection
4. Over-temperature protection
5. Short circuit protection
6. Soft start
7. Auto. Reset after being in protected
8. Grounding protectionTechnical Parameters| Model | CZ-800H | CZ-1000H |
| Input | DC voltage | 12V | 24V | 48V | 110V |
| Voltage range | 10-16VDC | 20-33VDC | 40-63VDC | 90-130VDC |
| No load current draw | <0.8 | <0.4 | <0.2 | <0.1 |
| Efficiency | >90% |
| DC connection | Cables With terminal |
| AC connection | Power line with plug |
| Output | AC voltage | 100/110/120VAC or 220/230/240VAC |
| Continuous power | 800W | 1000W |
| Surge power | 1600W | 2000W |
| Waveform | Pure sine wave |
| Frequency | 50HZ or 60HZ |
| AC regulation | 3% |
| The mains bypass output | 100/110/120VAC or 220/230/240VAC |
| Protection | Low voltage alarm | 10.5DC±0.5V | 21DC±1V | 42VDC±1V | 96VDC±3V |
| Low voltage shut down | 10DC±0.5V | 20DC±1V | 40VDC±1V | 90VDC±3V |
| Short circuit | Shut off output automatically |
| Over load | Shut off output |
| Over voltage shut down | 16V±0.5V | 33V±1V | 63V±1V | 130V±3V |
| Over thermal | Shut off output automatically |
| Environment | Working temperature | Between -10ºC and +50ºC |
| Working humidity | 20%~90% RH |
| Storage temperature | Between -30ºC and +70ºC |
| Package | Machine size(mm) | 345*165*85 | 415*165*85 |
| Packing size(mm) | 445*230*148 | 510*230*148 |
| Net weight(kg) | 3.1 | 3.9 |
| Gross weight(kg) | 4 | 4.5 |
| Packing mode | Carton packaging |
| Other | Start | Soft start |
| Cooling ways | Intelligent cooling fan |
