800W Wide Input Voltage Range Inverter Home Use

Name: 800W Wide Input Voltage Range Inverter Home Use
Brand: all-electronics-online.com
SKU: 776188355
Availability: InStock
Rating: 4.6 (143 reviews)

Price:	US $ 90/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	EP2000
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Max Current:	25A
Weight:	36kg
Display:	LED/LCD
Size:	Size: 500260455mm
Interface:	Friendly HMI
Battery Charging Mode:	3 Steps Charging Algorithm
New Functions:	with USB/RS232 Function
AVR Function:	Avaiable
Charging Current:	Adjustable Utility Charging Current
Application:	TV, Computer,Fans, Bulbs etc.

Product Description

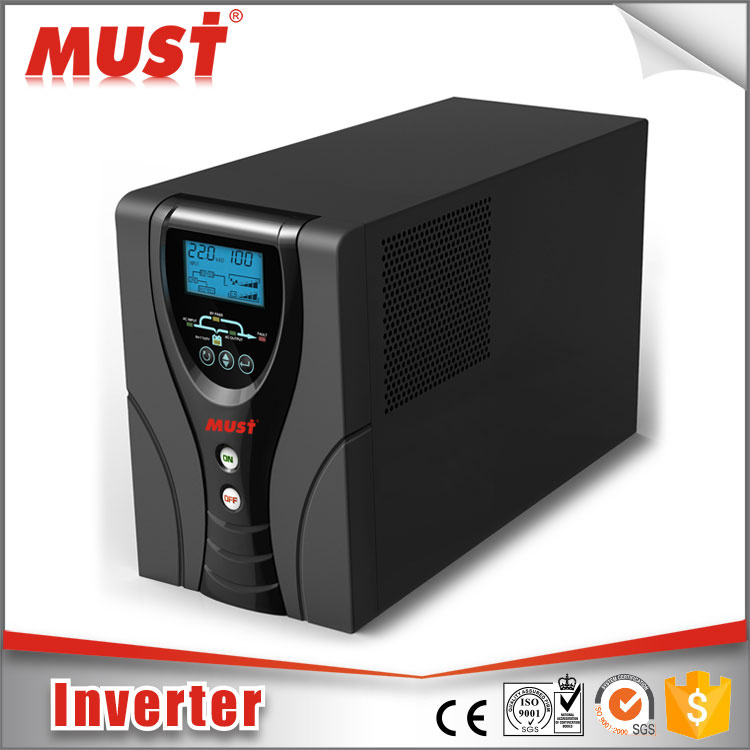

Must EP2000 LCD Single Phase Hybrid Inverter

Feature
Pure sine-wave output;
25A battery charge current;
Superior performance from CPU control technology;
Fast Action AC Synchronized Transfer Switch
Wide range of input voltage, accurate output, AVR function;
Inner-Equipped protection for over-load, short-circuit, over-voltage, low-voltage, over- heating, etc.
Easy to check with inverter condition with concise LCD indication.
Generator compatibly and external battery connection achievable.
Intelligent battery management with protection against over-charged and over-discharged etc.
Special charging system design for better protection of battery life.
Compatible with generators and suitable for harsh environment where power voltage is extremely unstable.
With standard on-line structure (three ports) and can be used as UPS.

MODEL	PT600	PT1000	PT1200	PT1500	PT2000	PT3000	PT3600	PT4000	PT5000
Rated capaclty(W)	600W	1000W	1200W	1500W	2000W	3000W	3600W	4000W	5000W
INPUT
Phase	Single
Voltage	100/110/120/127/220/230VAC(+25%,-35%)								100/110/120/127/220/230VAC±20%
Frequency Range	60/50±10%(auto sensing)
OUTPUT
Phase	Single
Voltage (Batt Mode)	100/110/120/127/220/230VAC/240VAC
Frequency Range(Batt Mode)	60/50±0.2Hz
Transfer Time	Typical 2-6ms ,10ms max
waveform	Pure Sine Wave
BATTERY
Recharge Current(S)	25Amax
Nominal DC input voltage	12VDC	12/24VDC	24VDC	24VDC	24/48VDCVDC	48VDC	48VDC		96VDC
INDICATORS
LCD/LED	Optional
PROTECTION
Overload	IPS automatically shutdown if overload exceeds 120% ofnormal value for 30 seconds IPS automatically resume work if overload comes back to rated load
Short circuit	Cut off immediately
ALARM
Battery back-up	Sounding every 4 second
Low Battery	Sounding every second
Overload	Audible alarm
Fault	Continuously sounding
OPERATING ENVIRONMENT
Humidity	0-90%RH @-5-55°C(non-condenslng)
Noise Level	Less than 60dB
Appearance
External Size(mm)LWH	375130190		452192338		500260455
Carton Size(mm)LWH	478463315(2 Piece)		584335495(1 Piece)		545345535(1 Piece)
Unit weight(kg/pc)	10	13.2	17	24.2	27.4	29.5	33	33	35/52
Gross weight(kg/ctn)	22.6	29	19.7	26.9	30.1	33.2	35.7	35.7

Shenzhen Must Power Limited established in 2010, with the headquarter in Hongkong, which is a professional hi-tech enterprise specialized in UPS, Power Inverter, Solar Power, VRLA Battery development, manufacturing, sales and after-service.

Our comprehensive product lines include:
Off-line UPS, line interactive UPS, On-line UPS, Solar inverter, Power inverters, Stabilizers and Solar battery.

Most of products from MUST applied with CE, FCC certificates. The main markets are Ukraine, Russia, Vietnam, Thailand, Pakistan, India, etc. Must Power Limited is one of the authorized suppliers for China Citic Bank, Ministry of Information Industry of China, Ministry of Power Industry of China, Ministry of Transportations of China.

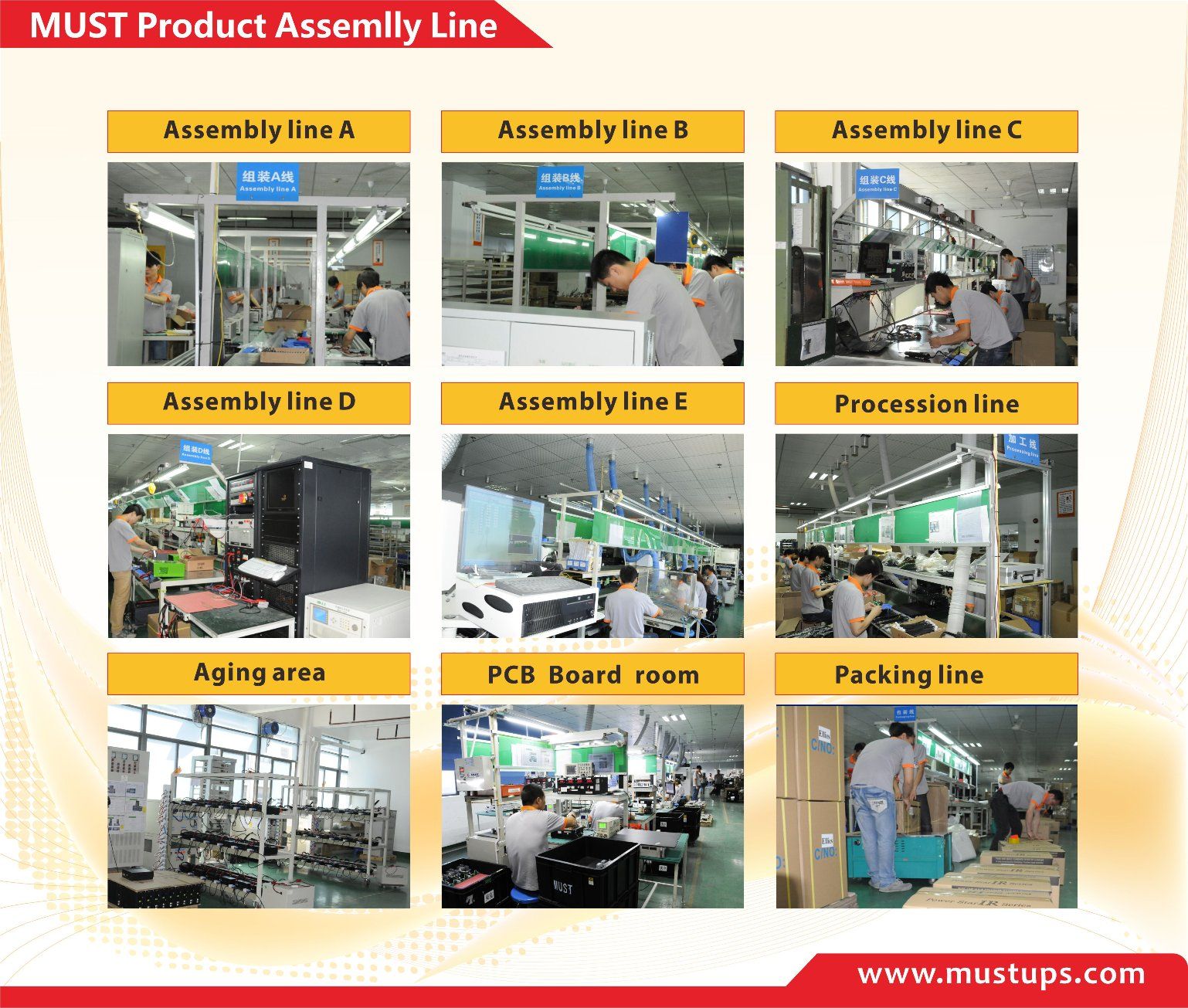

With an excellent R & D team formed by over 30 engineers and a skilled, dedicated workforce, together 10, 000 square meter in-house manufacturing facilities in Guangdong China, Shenzhen Must Power Limited has innovated, developed and improved the products to meet the demands of customers and keep pace with changing demands of the industries. With 'close to customer' notion, we have aligned most of its resources to support our Original Equipment Manufacturer (OEM) customers, and work with our customers as power partners. Our mission is to be the best supplier of power solutions, and to accomplish this, we will continue to tailor products for market needs while maintaining high quality, integrated customer service and prompt delivery.
