803048pl 1100mAh Rechargeable Battery for GPS/MID/Speaker

Name: 803048pl 1100mAh Rechargeable Battery for GPS/MID/Speaker
Brand: all-electronics-online.com
SKU: 831716685
Availability: InStock
Rating: 4.5 (24 reviews)

Price:	US $ 1.4-1.5/Piece
Min Order:	3000/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	3.7V 803048PL 1100mAh
Type:	Lithium-Ion Battery Pack
Connection Mode:	3.7V
Standard Voltage:	3.7V
Usage:	GPS/MID/Speaker

Product Description

Item specifics

Brand Name:Wanhong battery
Model Number:803048
Use:GPS / MP4 Player
Rechargeable:Yes
Type:Battery Pack
Package:Yes
Battery Properties:original
Type:Li-polymer

Product Description

Product model: 803048
• product capacity: 1100 mah
• product voltage: 3.7 V (standard)
Product specifications: 8.0 mm * 30 mm * 51mm long (wide and thick)
Charging current: standard charging 0.2C, quick charge 0.2C
• standard charging methods: 0.2 C CC (constant current) charged to 4.25 V, CV (4.2 V) constant voltage charging again until the charging current 0.02 C or less
Charging current: 1 cma (maximum)
2 cma (maximum), discharge current:
, discharge cut-off voltage: 2.75 V
Charging protection as voltage: 4.25 V
• discharge temperature: - 20 ° C ~ + 60 ° C
Charging time: 2-6 HRS (standard).3 HRS (fast)
, high safety, no explosion, fire, etc.
Protection function: with the charge, over discharge, over current, short circuit protection, over temperature protection

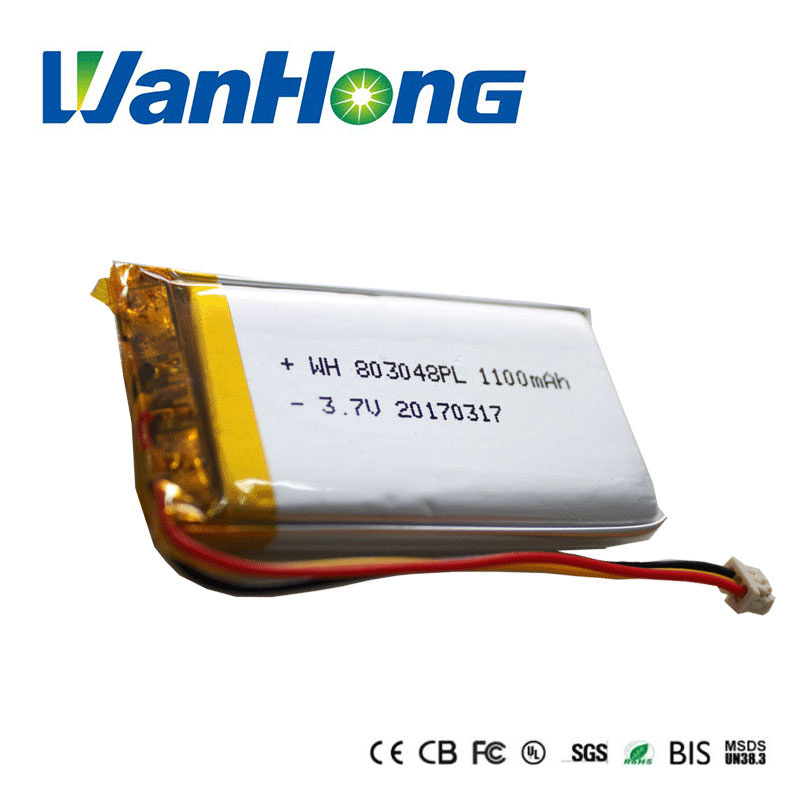

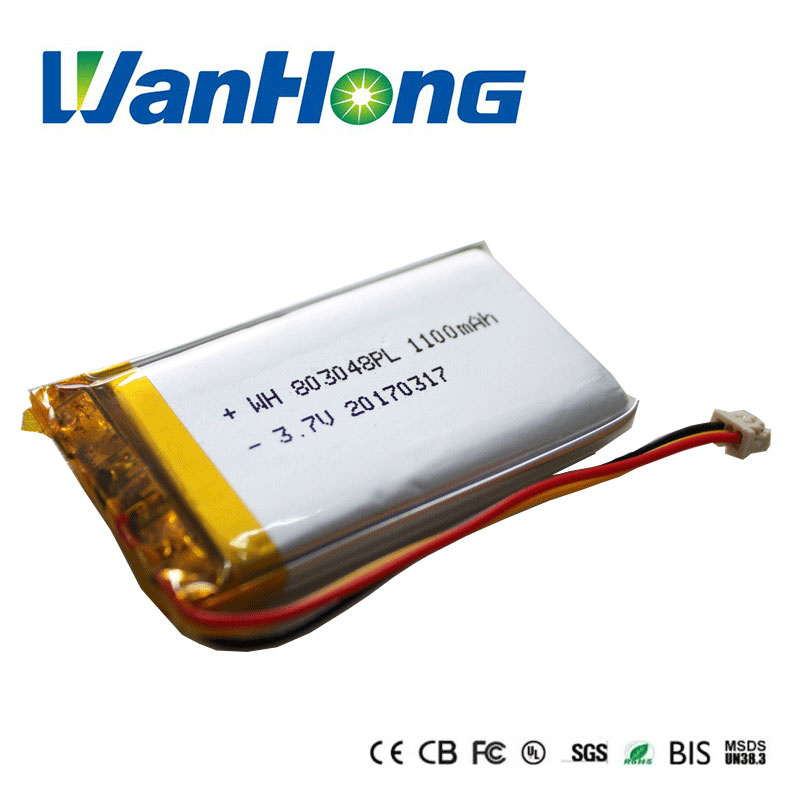

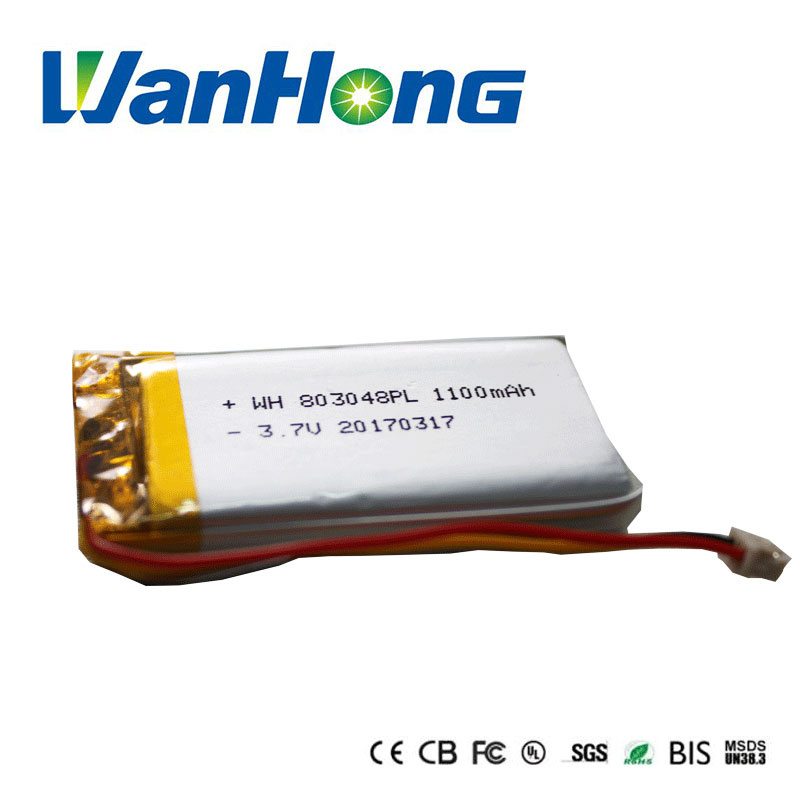

Real figure is as follows:

Please note: in each cell, its size, has the certain positive and negative tolerance size

Shenzhen Wanhong Technology Co., Ltd is a lithium batteries high-tech enterprise, professional on R&D, producing. Our company obtained independent import & export rights and general taxpayer qualification. Front-end application is positioned as World Power development direction. Offering"Quality, Efficient, Safety, Eco-friendly" Li-ion battery products is our mission. Continued research and innovation, competitive cost and manufacturing advantages already help Wanhong been many well-known enterprises lithium battery supplier.

Shenzhen Wanhong own an excellent engineer team, engaged in lithium batteries for many years. Our team have a lots of experiences on hardware and software R & D, always pay attention to the latest development of lithium batteries and latest applications.

Wanhong operate strictly according to ISO9001-2008 Quality Management System. The workshop is equipped with advanced production equipment and world-class testing instruments. Also has professional manufacturing and quality controlling staff team. They make batteries strictly on each step, optimize and improve the manufacturing technologies to ensure providing the customers with world-class products.

Wanhong's focus and professional spirit is helping us to provide a world-class environmentally energy and create green, low-carbon and clean home through constant effort and technology innovation.
