| Prod Model: |
AML-1504 |
| Wavelength: |
560/640/690-1200nm |
| Wave Length: |
808nm±10nm |
| Spot Area: |
10mm*16mm |
| Operation Way: |
Pulse Model |
| Pulse Wide: |
10-300ms |
| Max Energy Per Pulse: |
3j-140j |
| Pulse Energy: |
140j+10j |
| Output Power: |
600W |
| Type: |
Hair Removal Instrument |
| Application: |
Home |
| Portable: |
Non Portable |
| Theory: |
808nm Diode Laser |
Product Description

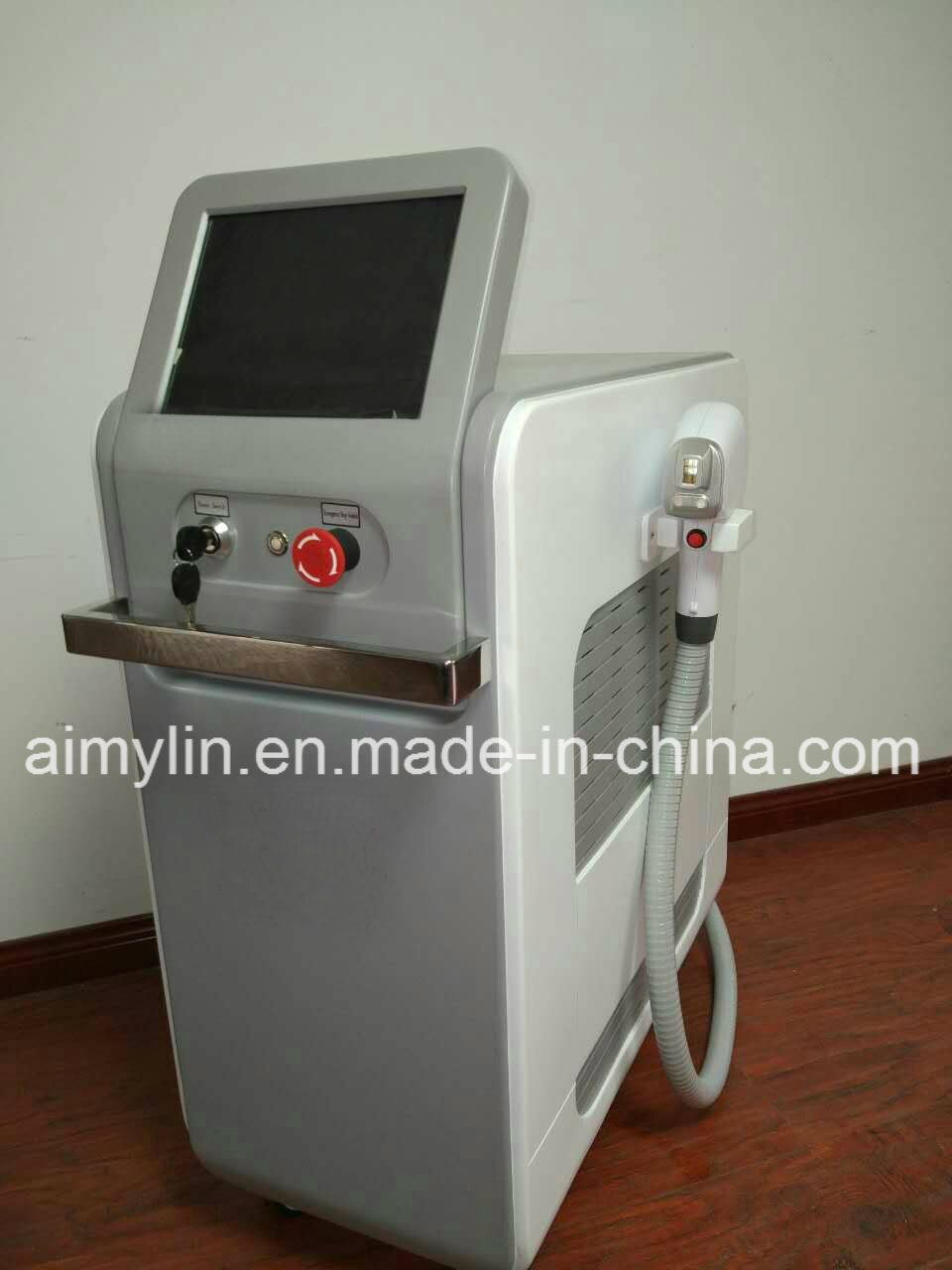

808nm diode laser hair removal machine high power Beauty Machine
Principle:
Diode laser hair removal technology is based on the selective dynamics of light and heat. The laser goes through the skin surface to reach the root of hair follicles; light can be absorbed and converted into heat damaged hair follicle tissue, so that hair loss regeneration without injury surrounding tissue. The slight pain, easy operation, the safest technology is the new way for permanent hair removal now.
Diode laser equipment adopts 808nm, particularly effective to hair follicle melanocytes without injury surrounding tissue. The laser light can be absorbed by hair shaft and hair follicles in the melanin, and converted into heat, thus increasing the hair follicle temperature. When the temperature raises high enough, after a period of natural physiological processes of hair follicles, it can irreversibly damage the hair follicle structure, which achieves the purpose of permanent hair removal.
Feature:1. World's top 808nm semiconductor laser has the best and safest whole performance and clinical effectiveness.
2. 808nm semiconductor laser, output power up to 600W or 1200W, energy density suit for most of skin type.
3. Maximum 10 HZ scanning frequency, sport size 10 mm X 16 mm, use the shortest current epilating for the most effective result.
4. Excellent sapphire lamp, sufficient epidermal cooling system protect the epidermis, so that the high energy density of 808nm laser action on the hair follicle becomes more effectively
5. Semiconductor array micro channel cooling technology, ensure that the laser stable in the launch of the high frequency 10HZ.
6. Touch screen system, easy to operation
Spec:Model | BL-D02 | BL-D02A |
Type: | Diode Laser | Diode Laser |
Wave length: | 808nm±10nm | 808nm±10nm |
Spot Area: | 10mm*16mm | 16mm*16mm |
Operation way: | Pulse model | Pulse model |
Pulse Wide: | 10-300ms | 10-300ms |
Max Energy per Pulse: | 3J-140J | 3J-140J |
Pulse Energy: | 140J+10J | 140J+10J |
Output Power | 600w | 1200w |
No. of Bar | 6pcs | 12pcs |
Crystal Filter | SAPPHIRE CRYSTAL | SAPPHIRE CRYSTAL |
Cooling Fin | 240*1 | 240*2 |
pump of Water | China | Import |
Operation Screen: | 8 inch color panel | 10.4 inch color panel |
Frequency: | 1-10hz | 1-10hz |
Input power | 1200W | 1600W |
Insurance Limit | Max10A | Max10A |
Size of Machine | 970*730*355(mm) | 1180*500*385(mm) |
Machine Display:
Treatment Before and After:
Shippment:
Do you have any warranty?
Yes, we have. Three years warranty on host machine is given. Six months free replacement warranty for handles, treatment heads, and parts.
How is your after-sale service?
We have a professional technology supporting team for your timely services. You can get the help you need in time by telephone, webcam, online chat (Google talk, Facebook, Skype). Please contact us once the machine has any problem. Best service will be offered.
What certification do you have?
All of our machines have the CE certification which ensures the quality and safety. Our machines are under strict quality management to ensure good quality. Because we fully understand that it will be a great trouble if machine have any problem during working at oversea.
Will you teach how to use the machine?
Yes, we can provide a complete user manual and usage video for instruction and application. And 24/7 online consultant service ensure you whatever problem and whenever you meet, you can solve easily. It is easy to operate by anyone with the instructions. about the shipment?
The machine will be shipped within 3-7 workdays after the receipt of your payment.
