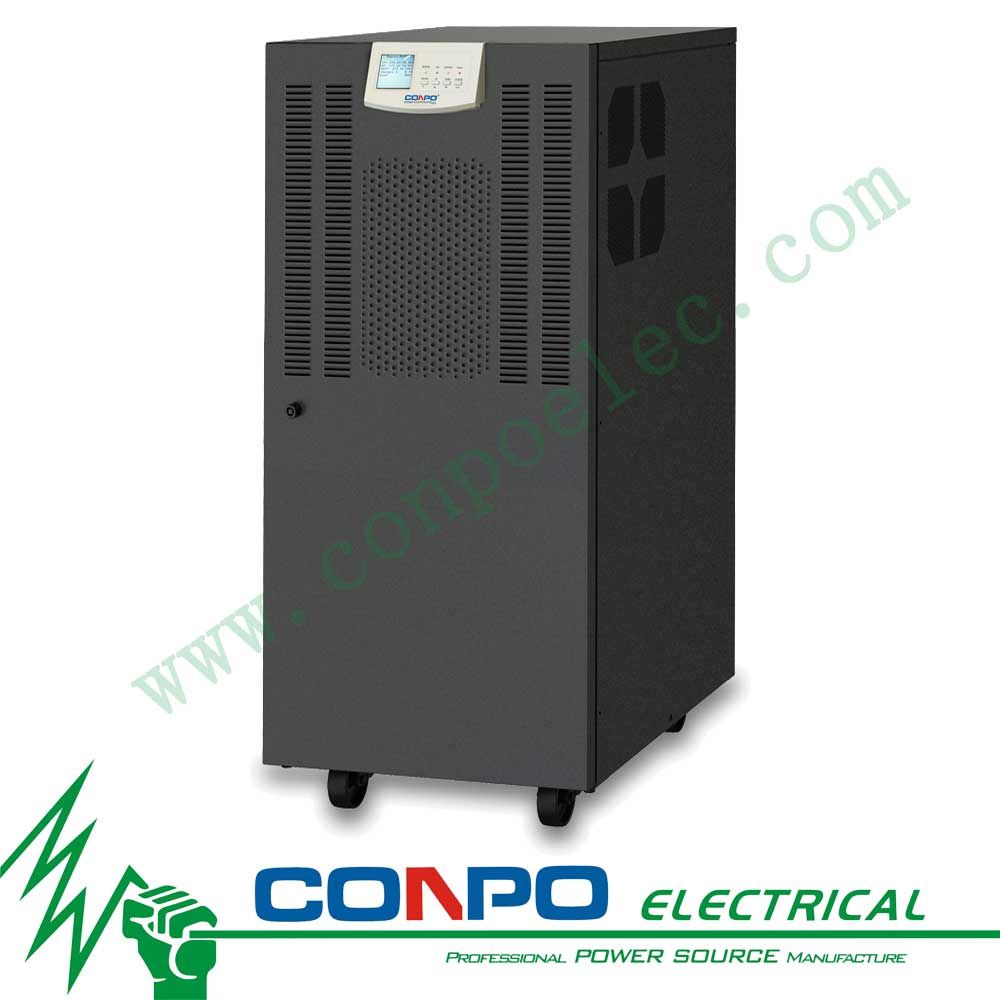

80kVA/72kw High Frequency Online UPS (3: 3)
| Price: |
Negotiable/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
PHT3380 |
| Phase: |
Three Phase in/Three Phase out |
| Type: |
High Frequency Online UPS |
| Protection: |
Full Protections |
| Application: |
Bank Security,Office Automation,Medical Equip etc |
| Classification: |
High Frequency Online UPS |
| Brand: |
Conpo |
Product Description
System overviewJupiter series 3P/3P High Frequency UPS 40K-120K provides better output power factor up to 0.9 with higher performance and efficiency for critical applications. Jupiter series is applied online double conversion technology to effectively insulate against network disturbances and enable higher load uptime. A Digital Signal Processor (DSP) control provides an improved solution with high performance. This Jupiter series 3P/3P 40K-120K series is also suitable for laser printer and ultrasound system load. Front Panel operation design, LCD panel multifunction button operation, friendly man-machine interface, adjoin Wall and equipment installation available, reduce the installation space of the UPS limit, convenient maintenance and replacement. Range of applicationsGovernment Department, Bank Securities, Office Automation, Precision Instrument And Equipment, Server Room, Scientific Research InstitutionsMedical Equipment, Industrial Automatic Function Features 1.Output power factor 0.9 Jupiter series (PHT3340~PHT33120) is providing output power factor up to 0.9 with higher performance and efficiency.2.Online double conversion technology with DSP controlJupiter series is applied online double conversion technology to effectively insulate against network disturbances and enable higher load uptime. A Digital Signal Processor (DSP) control provides an improved solution with high performance.3.Advanced control with Adaptive Feed Forward Cancellation (AFC) technology for very low harmonic distortion.By cancelling input current and output voltage harmonics, the harmful effects of harmonic injection into the power network is eliminated and it will enhance load integrity.4.Space-saving compact designThe use of transformerless technology allows a considerable reduction of the weight and volume of the units.5.Front access makes maintenance and replacement easilyFront Panel operation design, LCD panel multifunction button operation, friendly man-machine interface, adjoin Wall and equipment installation available, reduce the installation space of the UPS limit, convenient maintenance and replacement.6.Designed for a variety of different loadsStrong Load and overload capacity, Good load compatibility, can be applied to a variety of different types of load.7.Complete of communication portsProvide variety of communication ports , such like USB,RS-232,RS-485,AS-400,SNMP card ,parallel kit.8.Parallel redundant operation with up to 4 unitsUp to 4 units in parallel can be operated without additional hardware, to accommodate increases in power demand as well as to attain power redundancy with high system integrity. Main Features
• True double-conversion• DSP technology guarantees high performance• Output power factor 0.9• Active power factor correction in all phases• 50 Hz/60 Hz frequency converter mode• ECO mode operation for energy saving (ECO)• Emergency power off function (EPO)• Generator compatible• SNMP+USB+RS-232 multiple communications• 3-stage extendable charging design for optimized battery performance• Adjustable battery numbers for long-run model• Maintenance bypass available• Optional parallel operation up to 3 units Specifications| 40KVA-120KVA(Three phase in and Three phase out) |
| Model | PHT3340 | PHT3360 | PHT3380 | PHT33100 | PHT33120 |
| Capacity | 40KVA/36KW | 60KVA/54KW | 80KVA/72KW | 100KVA/90KW | 120KVA/108KW |
| Phase | 3-phase in / 3-phase out |
| Battery Voltage | 744V |
| Size, D X W X H (mm) | 770X450X1100 | 805X590X1320 |
| Net Weight (Kg) | 122 | 162 | 231 | 264 | 287 |
| Input |
| Input Voltage | 3 x 380 VAC (3-phase+N) / 3 x 400 VAC (3-phase+N) |
| Voltage Range | +15% or -20% |
| Frequency | 50/60Hz ± 5Hz |
| Power Factor | 1.0 |
| Total Harmonic Distortion (THDi) | < 2.5% @ 100% Load |
| Current Limitation | High overload : PFC Limit (Discharging batteries) |
| Inverter Output |
| Nominal Voltage | 3 x 400 VAC (3-phase+N) / 3 x 380 VAC (3-phase+N) |
| Precision | Stationary: ±1% |
| Frequency | 50/60Hz Synchronous ± 5% with mains absent ± 0.05% |
| Max. Synchronous Speed | ±0.1Hz/s |
| Waveform | Pure Sine Wave |
| Harmonic Distortion (THDv) | < 1% (Linear load); < 2.5% (Non-linear load) |
| Phase Displacement | 120°±1°(Balanced load); 120°±2°(Imbalances 50% of the load) |
| Dynamic Recovery Time | 10ms. at 98% of the static value |
| Overload Capacity | Phase overload:125% for 10 min.,150% for 60s; Total overload:112% for 10 min.,135% for 60s |
| Crest Factor | 3:1 | 2.8:1 | 3.2:1 |
| Imbalance Voltage | <1% |
| Current Limit | 300% |
| Static Bypass |
| Type | Static Bypass Switch |
| Voltage | 3 x 400 VAC (3-phase+N) / 3 x 380 VAC (3-phase+N) |
| Frequency | 50/60Hz |
| Activation Criterion | Microprocessor control |
| Transfer Time | 0ms |
| Overload Time | 200% for 10s |
| Transfer to Bypass | Immediate, for overloads above 150% |
| Retransfer | Automatic after alarm clear |
| Maintenance Bypass |
| Type | Without interruption |
| Voltage | 3 x 400 VAC (3-phase+N) / 3 x 380 VAC (3-phase+N) |
| Frequency | 50/60Hz |
| Overall Efficiency(AC Mode) | 92.5% | 93% | 94% | 93.5% | 94% |
| Battery |
| Battery Type | Depending on applications |
| Battery Numbers | 2 x 31 Pcs |
| Max. Charging Current | 47A | 70.5A | 188A |
| Environment |
| Temperature and Humidity | 0-95 % RH @ 0- 40°C (Non-condensing) |
| Operation Altitude | <1000m |
| Management |
| Smart RS-232 or USB | Windows® 2000/2003/XP/Vista/2008,Windows® 7/8,Linux,Unix,MAC |
| Optional SNMP | Power management from SNMP manager and web browser |
| Remark | Products specifications are subject to change without notice. |
| | | | | | | | |
CONPO Power Tech. Co., Ltd specializes in producing Power Source as a member of China Power Supply Society. Since being founded, we has been insisting on the theoretic guideline of "Science & Technology is the first productive force" and holding up brand strategy as the guide, relying on forward understanding about power supply technology, perfect craft and unwearied pursuing to quality, we can show top quality power supply products, and set up fine image in Chinese market and abroad market.
CONPO has the modern workshops and advanced production devices, besides we always introduce technology positively, reform craft continuously, devote to researching and developing Voltage Stabilizer/Voltage Regulator, Uninterruptible Power Supply(UPS), Power Inverter, Solar Panel, Solar Controller, Solar Inverter and Solar Generator, Switching-mode Power Supply(SMPS), Transformer, Frequency Inverter etc. Power and Solar products. In addition, we try to find excellent administrators and technical talents, through years on working hard, we has been improved on the aspect of quality, power supply varieties, producing scale, management mode, so products manufactured by us have reached advanced technical level, they are not only popular with a great of customers in China, but also in foreign countries.
CONPO Products have been approved by Quality Supervision & Inspection(QSI), Insured by PICC, and also have CE, RoHS, UL, CCC certificates. We insist on the policy of developing by quality on the time, and also have passed ISO9001: 2000 Quality Management System Certificate. Relying on rich economic strength, fine production engineering, innovating management mode, we can dare to meet kinds of challenges from China entering WTO that is helpful for establishing reinforced foundation of international business.
We are keeping our business principle for " Approaching the first-class management, Producing the first-class products, Providing the first-class service". All CONPO staffs are working hard and constantly innovate. Honest CONPO are welcome to all users to fighting a better tomorrow hand in hand.
