80mm 310V DC Servo Motor with Hight Voltage

Name: 80mm 310V DC Servo Motor with Hight Voltage
Brand: all-electronics-online.com
SKU: 726012695
Availability: InStock
Rating: 4.7 (32 reviews)

Price:	US $ 91.39-96.23/Piece
Trade Terms:	FOB,CIF,DAP
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	80BLS3A115
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	80bls3a115
Voltage:	310VDC
Power:	375W
Current:	1.7A
Rated Speed:	3000rpm
Rated Torque:	1.2n.M
Encoder:	1000CPR
Winding Class:	B
Length:	171mm
Weight:	2.3kg
Application:	Power Tools
Operating Speed:	High Speed
Excitation Mode:	Excited
Structure And Working Principle:	Brushless
Type:	BLDC
Certification:	SGS
Brand:	Sunrise Motor

Product Description

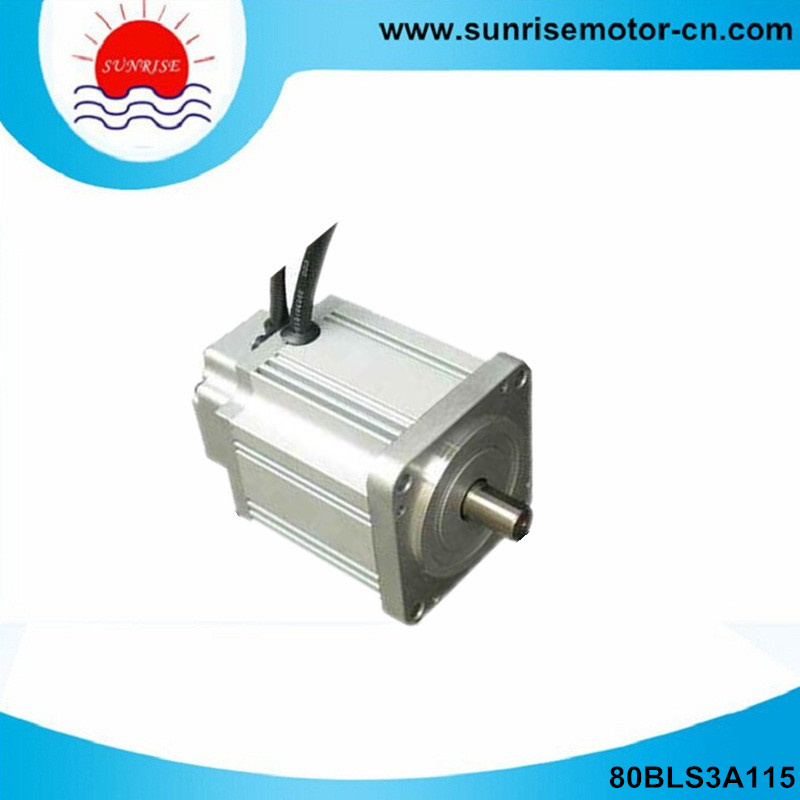

80BLS Series Brushless (BLDC) DC Servo Motor

Model: 80BLS3A115
VOLTAGE: 310V
POWER: 375W
SPEED: 3000RPM
CURRENT: 1.7A
TORQUE: 1.2N. M
ENCODER: 1000CPR
NUMBER OF POLES: 4
WINGDING CLASS: B
LENGTH: 171MM
WEIGHT: 2.3KG

Remark:

We can produce motor according to customer's requirements.

			80BLS3A90	80BLS3A115	80BLS3A140
Specification		Unit
Rated voltage	U	V	+310	+310	+310
Rated out power	P out	W	250	375	500
Rated speed	n N	rpm	3000
Rated current	I N	A	1.1	1.7	2.2
Rated torque	T N	N.m	0.8	1.2	1.6
Peak current	I P	A	3.3	5.1	6.6
Peak torque	T p	N.m	2.4	3.6	4.8
Voltage constant	K E	V/ Krpm	77.6	77.6	77.6
Torque constant	K T	N.m/A	0.741	0.741	0.741
Number of poles	N P		4
Encoder		CPR	1000
Winding class			B
Motor Length	L	mm	118	143	171
Motor weight		Kg	1.7	2.3	2.9

Changzhou Sunrise Electric Motor Company was founded in 2004 and is located about 200 km west of Shanghai. SUNRISE ELECTRIC MOTOR manufacture and export PMDC motors, BLDC motors, Hybrid Stepping motors with high torque output (0.2N. M - 28N. M), and customized motors which are per customers' drawings, specification and technical requirements. Also, we source and customize products associated with electric motor applications such as, motor controllers and drivers, motor sensing boards (PCB), etc.

The motors introduced can be used for commercial and residential applications such as industrial automation, office equipment, appliances for household, etc.

The motors listed have been exported overseas through our sales representatives in North America and Europe.
