80mm 440W Gear DC Motor

Name: 80mm 440W Gear DC Motor
Brand: all-electronics-online.com
SKU: 830639115
Availability: InStock
Rating: 4.7 (48 reviews)

Price:	US $ 85-95/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	80ZYT165-2438-40RV60-63B14 REV1
Model:	80zyt140-2438-RV040-63b14
Voltage:	24VDC
Rated Speed:	3000rpm
Power:	345W
Torque:	1.1n.M
Application:	Household Appliances
Operating Speed:	High Speed
Excitation Mode:	Excited
Structure And Working Principle:	Brush
Type:	Zyt
Certification:	TUV
Brand:	Sunrise Motor

Product Description

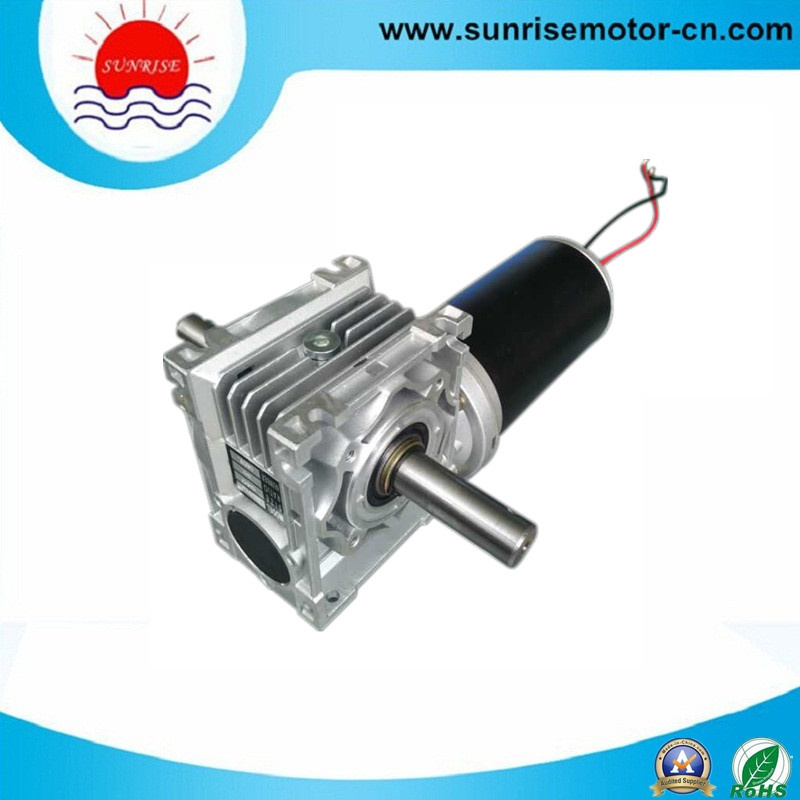

PMDC WORM GEAR MOTOR
80ZYT165-2438-40RV60-63B14 REV1

Model: 80ZYT165-2438-RV040-63B14
Voltage: 24VDC
No-load speed: 3800rpm
Rated speed: 3000rpm
Rated current:<25
No-load current: <1.2A
Rated torque: 1.4N.m
Power: 440W
Duty: S1
Protection: IP44

After gear box
Gear ratio: 1:60
Rated speed: 50rpm
Rated torque: 57Nm

We can produce motor according to customer's requirements.

Changzhou Sunrise Electric Motor Company was founded in 2004 and is located about 200 km west of Shanghai. SUNRISE ELECTRIC MOTOR manufacture and export PMDC motors, BLDC motors, Hybrid Stepping motors with high torque output (0.2N. M - 28N. M), and customized motors which are per customers' drawings, specification and technical requirements. Also, we source and customize products associated with electric motor applications such as, motor controllers and drivers, motor sensing boards (PCB), etc.

The motors introduced can be used for commercial and residential applications such as industrial automation, office equipment, appliances for household, etc.

The motors listed have been exported overseas through our sales representatives in North America and Europe.
