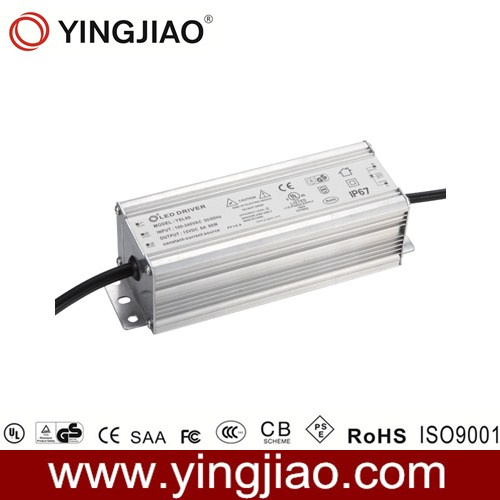

80W 12V/24V LED Power Adapter with CE

Name: 80W 12V/24V LED Power Adapter with CE
Brand: all-electronics-online.com
SKU: 783397285
Availability: InStock
Rating: 4.5 (64 reviews)

Price:	US $ 8-15/Piece
Trade Terms:	FOB,others
Min Order:	500/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	YSCL80
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Black&Gray
For:	LED Power Supply
Uses1:	LED Power Adapter
Uses:	LED Driver
Type:	Switching Power Supply
Usage:	Light
Output Type:	Single
Driving Method:	LED Constant Current
Circuit Structure:	Electronic Step-down Transformer
Certification:	CE/TUV/GS/
Power Supply Mode:	Constant Voltage/Current
Power Supply Voltage:	AC 90-305V
Brand:	OEM/ODM

Product Description

1. 15 years' experience in power supply field
2. Safety standard: CE/EMC/ERP/RoHS
3. Quick delievery: 15 days
4. 2 years' warranty 70-100W Switching Power Adapters.

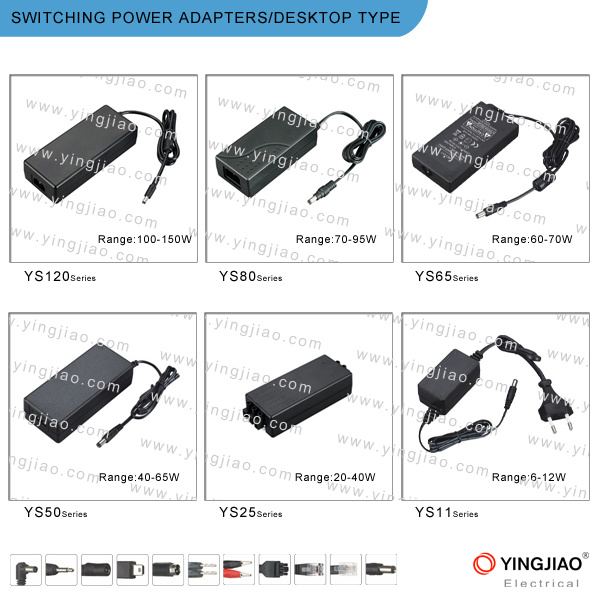

Model: YS80 series (SMPS)
Rated Power: 110W max.
Universal Input: 100-240V AC 50/60Hz

Output Power	60-100W
Constant Current	700mA,1050mA,1400mA,2100mA,3600mA,4200mA
Constant Voltage	12/24/36V

Output Specifications:
Model Output Load Voltage (V) Max. Load Current (A)
YS80-XX360 36 2.50
YS80-XX240 24 3.00
YS80-XX190 19 4.00
YS80-XX180 18 6.00
YS80-XX150 15 6.00
YS80-XX138 13.8 8.00
YS80-XX120 12 8.00
YS80-XX090 9 8.00
YS80-XX060 6 9.00
YS80-XX050 5 10.00
XX-represent rated output power

Features:

Universal Input: 100-240V AC 50/60Hz
Safety: UL/cUL/TUV/GS/CE/CCC compliance
RoHS & CEC Compliance
High efficiency & low power consumption
LED power indicator
Short Circuit Protection
Over Current Protection
Over Voltage Protection
Light Weight & Compact

Environmental:

Operating Temperature: 0 to +40 degrees centigrade
Storage Temperature: -40 to +70 degrees centigrade
Operating Humidity: 10% ~ 90% RH Non-condensing
Storage Humidity: 5% ~ 95% RH Non-condensing

Mechanical:

Dimensions: 129mm (L)*60mm (W)*26mm (H)
N. W.: About 300g
AC Input Plug: EU/US/UK/AUS, etc. Optional
Output plug: Optional

Packing details:

1 piece per plastic bag + inner box
50PCS/CTN
CTN Dimension: 34*31*37CM

Yingjiao Electrical Co., Ltd., established in 1996, is a leading manufacturer and exporter of switching power adapters, linear AC/DC adapters, transformers, chargers, car chargers, power cords, tripods, etc. We can also design and manufacture power supply products with specifications according to the various demands of different customers.

Located in Ningbo, a coastal city in East China, we possess a convenient location and transportation facility. With an area of 15000 square meters, we have about 800 skillful employees. Being exported to Europe, America, Japan, Australia, and many other countries and regions, our products have won good comments from our customers.

We have a strict quality control and guarantee system and have been ISO 9001: 2000 and SGS certified. All our main products have obtained CE approvals of the European Union and CQC and CCC approvals of Chinese quality certification center. Besides, we also carry out the international authoritative certifications, such as UL, cUL, TUV, CSA, and GS.

We commit to supply high quality products and competitive prices to our customers with professional technologies and top-ranking services.

ODM/OEM partners are welcome too.
