80W 2A High Efficiency Dimmable LED Driver Ce Approval

80W 2A High Efficiency Dimmable LED Driver Ce Approval
Price: US $ 12.6-20/Piece
Min Order: 1/Piece
Pay Type: T/T,Western Union,Paypal
Prod Model: PLD080-1TAF2A-40
Output Power: 80W
Dimming: 0-10V Dimming
Usage: Construction
Output Type: Single
Driving Method: LED Constant Current
Circuit Structure: PWM Controlled
Power Supply Voltage: 90~305VAC
Pack Sealing Size: 215X42X30 mm
Brand: Fsp-Powerland

Product Description

80W 2A High Efficiency Constant Current Dimmable LED Driver CE Approval

PLD080-1TAF2A-40 offers constant current drivers with wide-range dimmable output
current and 90~305Vac universal input.


The output current of this series is up to 2A ,and designed for 0-10V dimming applications


Applications

Indoor LED lights
High bay and low bay lights, LED panels


Features
>50,000 hours lifetime at 75oC Tcase
>5 years warranty at 75oC Tcase
Constant current output
Universal input voltage: 90~305Vac
Safety according to UL1310, UL8750, & EN61347-2-13
UL Class 2 Output

Surge voltage rating: L-N 4kV, L/N-Earth 4kV
EMC according to FCC Part 15 Class B
Lightning, OVP, SCP, & Open Circuit Protection
Compatible with 0-10V dimming


Electrical Specifications
Model

PLD080-1TAF2A-40

Output Voltage

20~40V

Output Current

2.00A


Dimming

                                            0-10V Dimming

Output Power

80W

Max. Current Ripple

200mA


Max. Voltage Ripple

±0.5%

Voltage Range

90~305Vac

Frequency Range

47~63Hz

Max. Input Current @ 230Vac

1.1A

Max. Input Power

95W

Power Factor

>0.95 @ 115Vac & 80~100% load, >0.90 @ 277Vac & 80~100% load

Efficiency

90%

Max. Open Circuit Voltage

43V

THD

<20% @ 120Vac & 80~100% load, <20% @ 277Vac & 80~100% load

Protections

OVP, OTP, OCP, SCP

Environmental Protection

UL Dry & Damp, and Type TL

Working Temperature

-20~+60oC

Max. Case Temperature

90oC

Surge Protection

L-N 4kV, L/N-Earth 4kV

Agency Approbations

UL1310 Class 2

Electromagnetic Compliance

Per Title 47 CFR Part 15 Class B

Ansi Surge Type

1.2/50μs Combination Wave (w/t 2Ω)

Isolation

Primary to Secondary: 3750Vac / 10mAMax / 60seconds

Dimension

215x42x30 mm (8.46x1.65x1.18 inch)

Mounting Length

228 mm (8.98 inch)

Overall Length

242 mm (9.53 inch)

Weight

0.5 kg (1.1 lb)

Life Time

>50,000 hours @ full load, 75oC Tcase

* Unless otherwise noted, the data are based on 25oC ambient temperature, 230Vac input voltage, and full load.

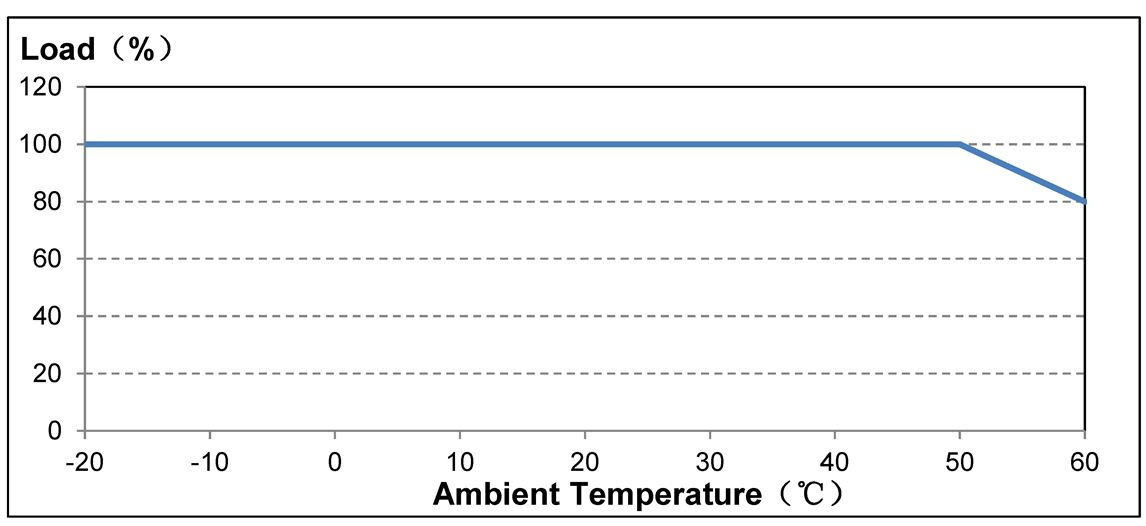

Derating Curve


Electrical Specifications

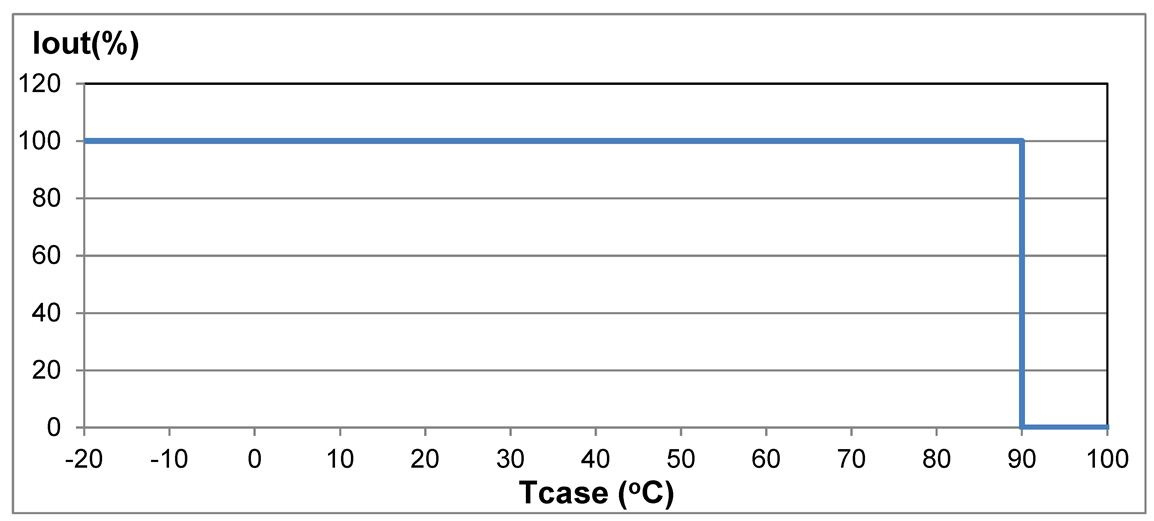

Output Current vs. Case Temperature (with ±5oC Tolerance)

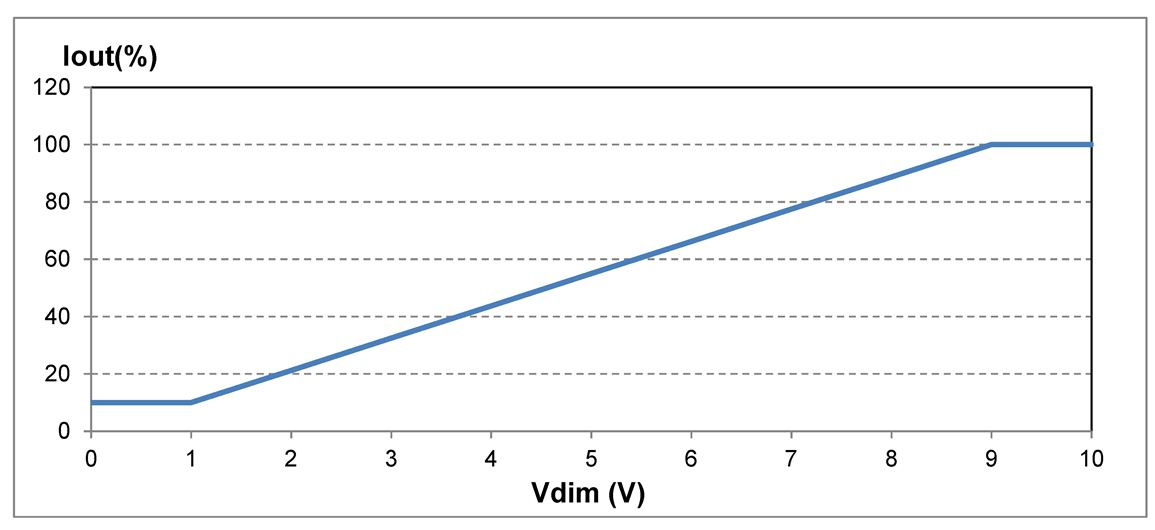

Output Current vs. 0-10V Dimming Control Voltage


Performance Characteristics

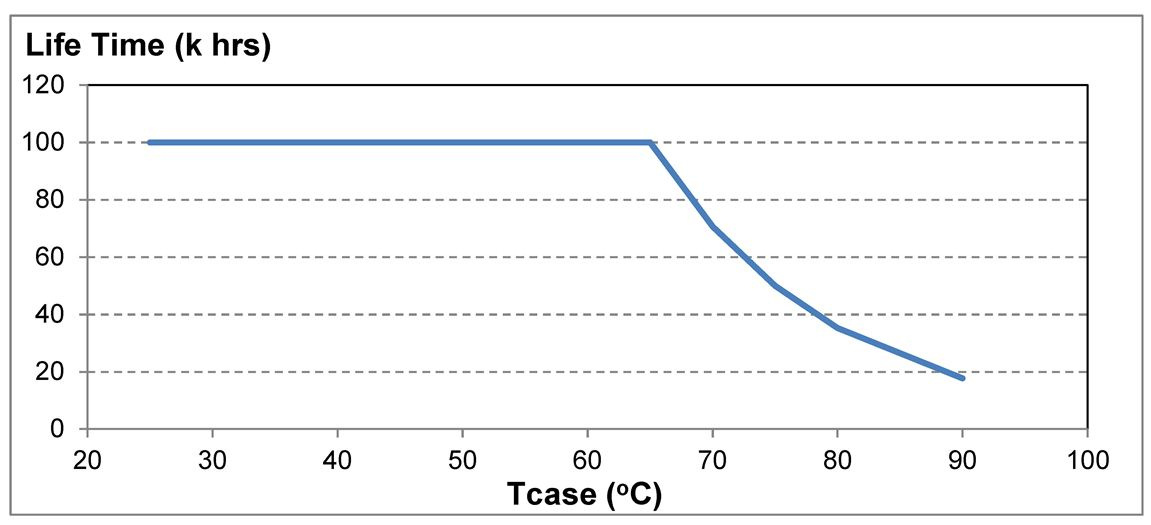

Life Time vs. Case Temperature

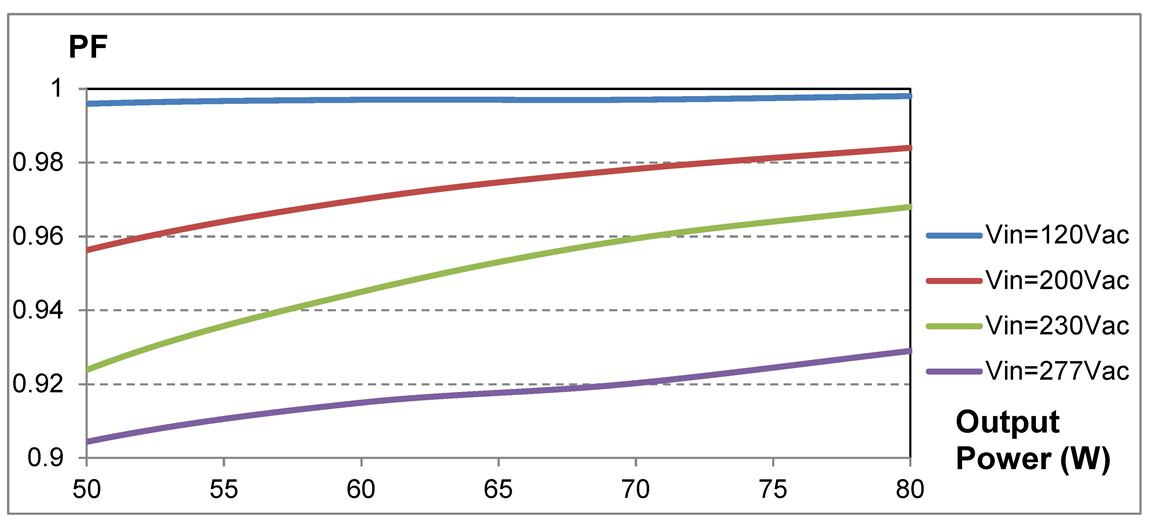

Power Factor VS. Output Power

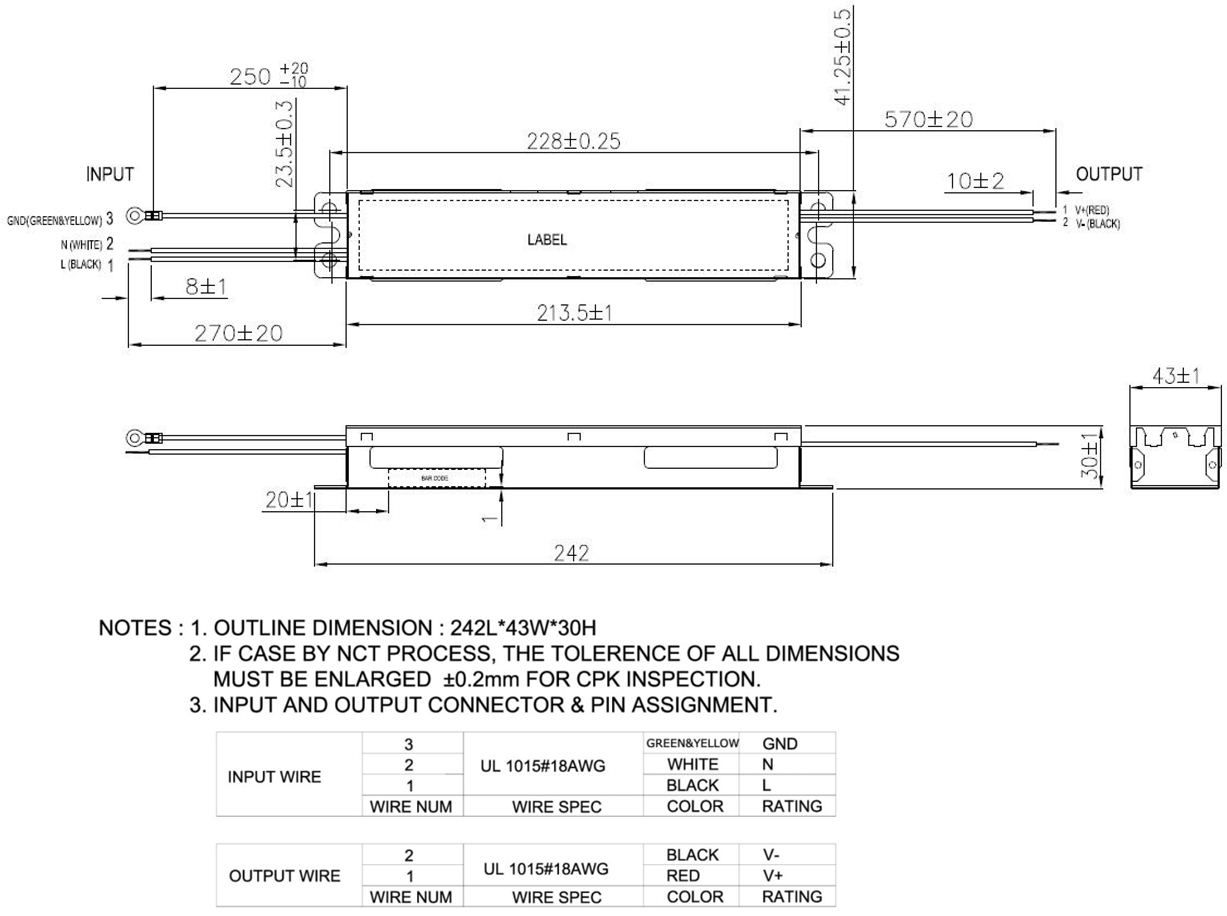

Mechanical Specification
