80W 2A Outdoor Constant Current Dimmable LED Driver

Name: 80W 2A Outdoor Constant Current Dimmable LED Driver
Brand: all-electronics-online.com
SKU: 798734585
Availability: InStock
Rating: 4.8 (143 reviews)

Price:	US $ 15.45-23.5/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PLD080-1TAF1A-40
Output Power:	80W
Dimming:	0-10V Dimming
Efficiency:	90%
Ingress Protection:	IP67
Usage:	Construction
Output Type:	Single
Driving Method:	LED Constant Current
Circuit Structure:	PWM Controlled
Power Supply Voltage:	90~305VAC
Pack Sealing Size:	227X49X40.5 mm
Brand:	Fsp-Powerland

Product Description

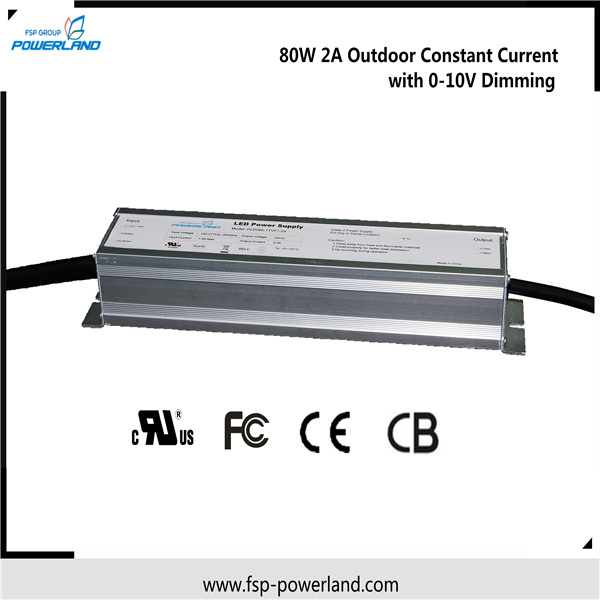

80W 2A Outdoor Constant Current Dimmable LED Driver

PLD080-1TAF1A-40 offers constant current drivers with wide-range dimmable output
current and 90~305Vac universal input.
The output current of this series is up to 2A ,and designed for 0-10V dimming applications

Applications
Outdoor LED lights
Street lights, high bay and low bay lights, LED panels

Features

>7000,000 hours lifetime at 75oC Tcase

>7 years warranty at 75oC Tcase
IP67 ingress protection

Constant current output
Compatible with 0-10V dimming
Universal input voltage: 90~305Vac
UL Class 2 Output

Safety according to UL1310, UL8750,& EN61347-2-13
Surge voltage rating: L-N 4kV, L/NGND 4kV

EMC according to FCC Part 15 Class B

Lightning, OVP, SCP, & Open Circuit Protection

Electrical Specifications

Model	PLD080-1TAF1A-40
Output Voltage	20~40V
Output Current	2.00A
Dimming	0-10V Dimming
Output Power	80W
Max. Current Ripple	200mA
Max. Voltage Ripple	±0.5%
Voltage Range	90~305Vac
Frequency Range	47~63Hz
Max. Input Current @ 230Vac	1.1A
Max. Input Power	95W
Power Factor	>0.95 @ 115Vac & 80~100% load, >0.90 @ 277Vac & 80~100% load
Efficiency	90%
Max. Open Circuit Voltage	50V
THD	<20% @ 120Vac & 80~100% load, <20% @ 277Vac & 80~100% load
Protections	OVP, OTP, OCP, SCP
Environmental Protection	UL Dry & Damp & Wet, and Type TL
Working Temperature	-40~+70oC
Max. Case Temperature	90oC
Surge Protection	L-N 4kV, L/N-Earth 4kV
Agency Approbations	UL1310 Class 2
Electromagnetic Compliance	Per Title 47 CFR Part 15 Class B
Ansi Surge Type	1.2/50μs Combination Wave (w/t 2Ω)
Isolation	Primary to Secondary: 3750Vac / 10mAMax / 60seconds
Dimension	227x49x40.5 mm (8.94x1.93x1.59 inch)
Mounting Length	240 mm (9.45 inch)
Overall Length	258 mm (10.16 inch)
Weight	0.87 kg (1.91 lb)
Life Time	>70,000 hours @ full load, 75oC Tcase

* Unless otherwise noted, the data are based on 25oC ambient temperature, 230Vac input voltage, and full load.

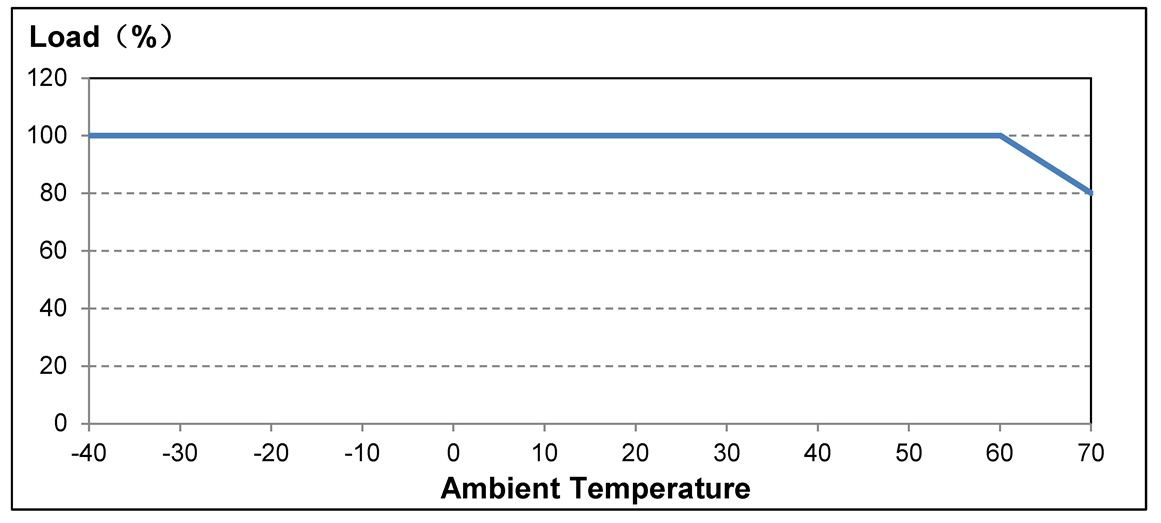

Derating Curve

Electrical Specifications

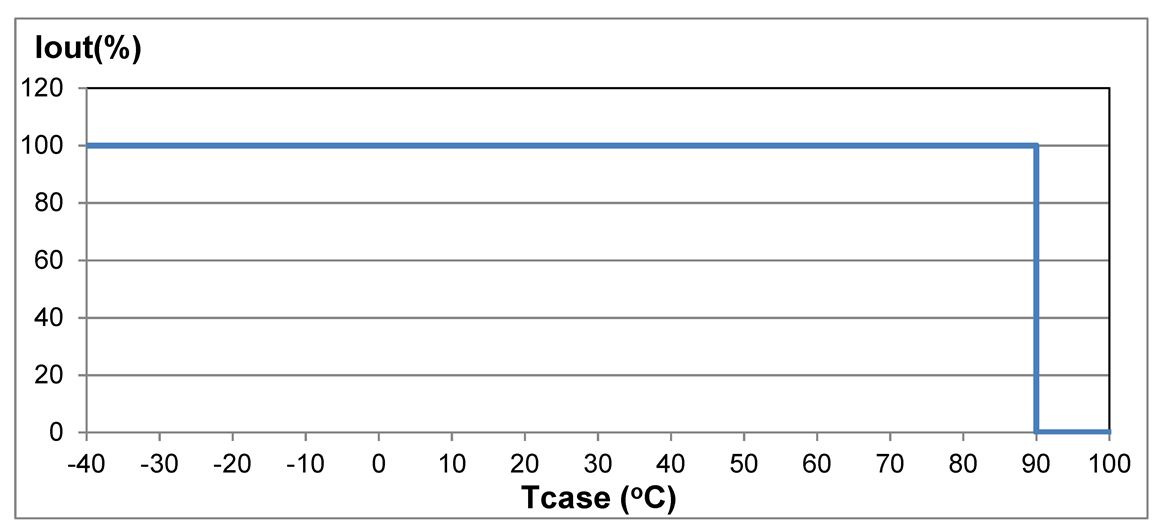

Output Current vs. Case Temperature (with ±5oC Tolerance)

Output Current vs. 0-10V Dimming Control Voltage

Performance Characteristics

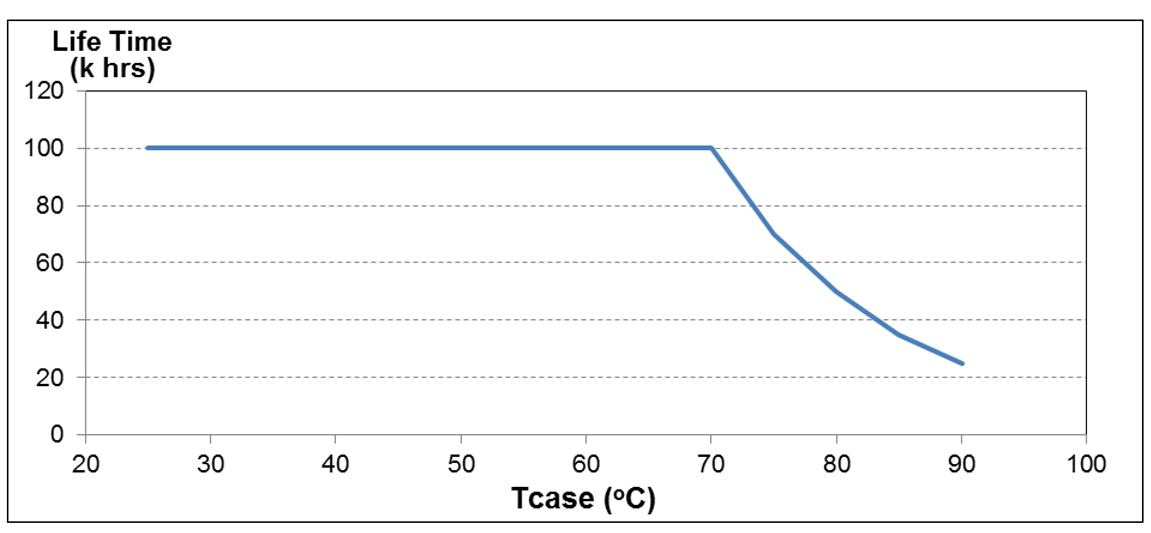

Life Time vs. Case Temperature

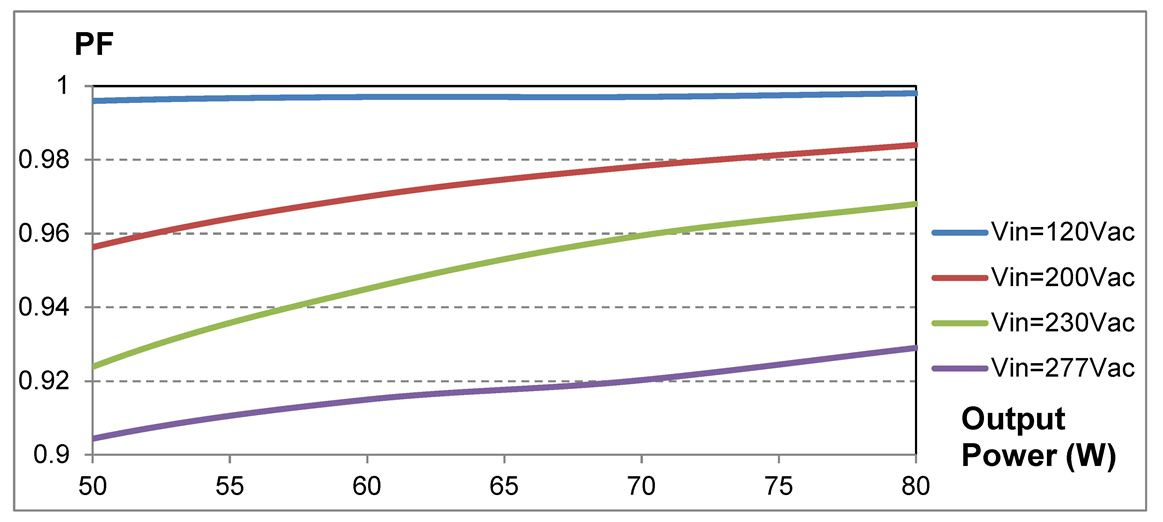

Power Factor VS. Output Power

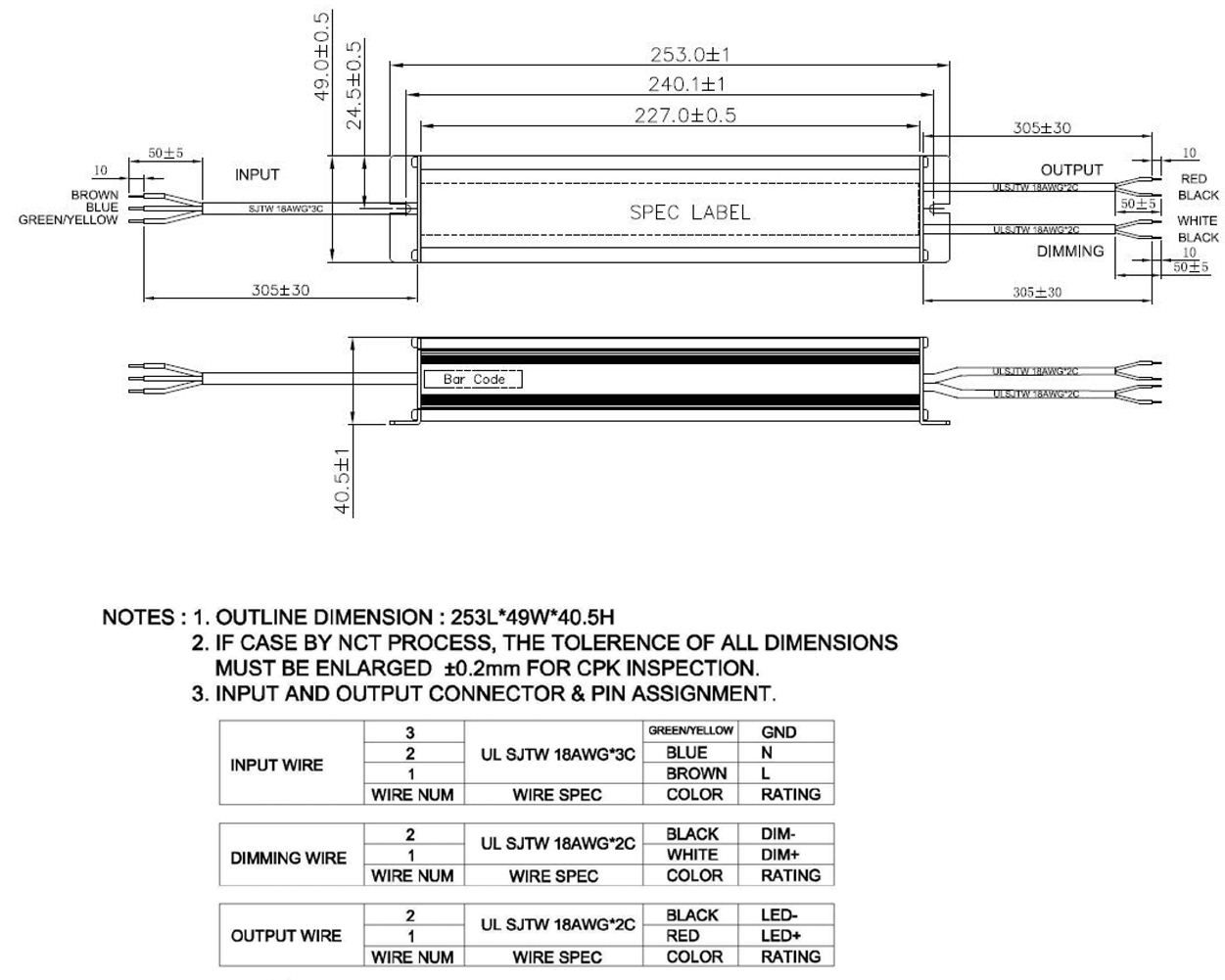

Mechanical Specification
