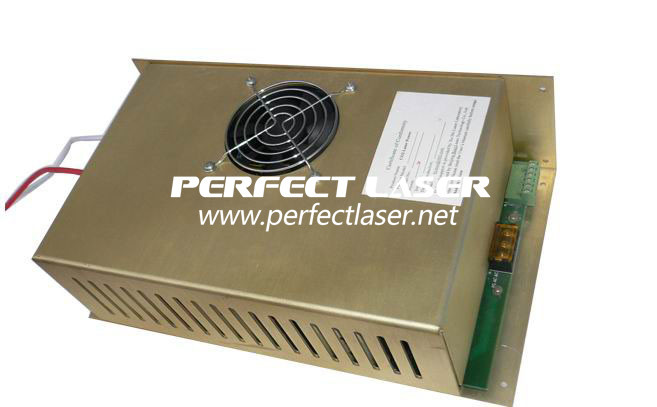

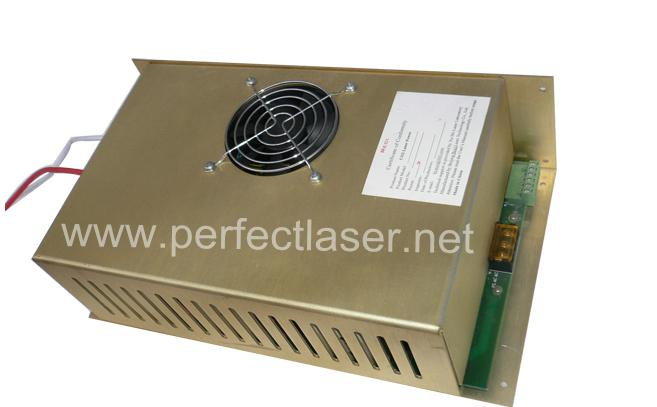

80W CO2 Laser Power Supply for Laser Cutting Machine
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,DAT |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
80W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Output Type: |
Multiple |
| Warranty: |
2 Years |
| Output Power: |
1 - 50W |
| Input Voltage: |
110-220V |
| Connection Mode: |
Parallel Switching Power Supply |
| Voltage Regulating Mode: |
Width Modulation Type |
| Power Supplying System: |
Level 1 Power Distribution Equipment |
| Brand: |
Perfect Laser |
Product Description
80W CO2 Laser Power Supply for Laser Cutting Machine1. SUMMARIZE
80W Co2 Laser Power Supply adopt high frequency design advantages, pay more attention to every component quality for major parts, and keep high performance and duration. 80 W laser power supplies were used to 70W - 80W CO2 laser tube for kinds of industrial laser system. Laser power supply produced by Mactron technology is well known with ultra long lifetime, stability, good compatibility, as first choice in 80W CO2 laser cutter and laser engraver.
With Our Co2 laser power supply, the Co2 laser tube may have many advantages such as stable performance in frequency, easy to light and high lighting efficiency. The function of pre-ionization can prolong the life of laser maximum, and improve machine performance. The peculiar function of over-current protection and empty-load protection will be safer for user to use.
2. TECHNICAL SPECIFICATION
Model
Parameters |
80W Laser power supply |
Input |
Input Voltage |
AC220V±10% (Need AC110V products, ordering need indicate) |
AC frequency |
47 - 440HZ |
Cold-state Surge Current |
≤60A(AC220V input)
≤30A(AC110V input) |
Leakage current |
≤0.7mA(AC220V input) ≤0.4mA(AC110V input) |
Output |
Maximum output voltage |
DC40KV |
Maximum output current |
DC31mA(depending on the laser tubes of different manufacturers) |
Efficiency |
≥90%( Full load) |
Response speed |
≤ 1ms |
Control Interface |
TTL multilevel switching control, effective level can be high and low selection (see control wiring diagram) |
Insulation |
Input--output |
AC 1500V 1 minutes ≤10 mA |
Input--shell |
AC 1500V 1 minutes ≤10 mA |
Output--shell |
Connection |
Insulation Resistance |
≥50MΩ(DC500V) |
Environmental
Requested |
Working temperature |
-10°C - 50°C |
Storage of temperature |
-20°C - 75°C |
Relative Humidity |
Maximum 85% RH (non-condensing) |
Altitude |
100,000 feet of work 200,000 feet of storage, does not work |
Cooling methods |
Forced air cooling (fan cooling) |
Dimensions (L*W*H) |
285mm*190mm*95mm |
Model | 1000 | 1200 | 1400 | 1600 |
| Input Voltage | AC 200V~240V |
| Surge Voltage | DC 220-28A |
| Lighting Voltage | 20KV | 24KV | 24KV | 32KV |
| WorkingVoltage | 12KV | 18KV | 18KV | 20KV |
| Current Adjusting Scope | 0-20MA | 0-24MA | 0-24MA | 0-26MA |
| Switch Control Voltage Sensor | 0-5TTL Electricity Level |
| Pre-ionization Output | 0.1-0.5mA TYP |
| Reaction Speed | 0.1μs |
| Working Temperature | -10ºC+45ºC |
| Applicable Power | 40w | 60w | 70w | 80w |
Remarks:
Key 1: TTL-H input
Key 2: 2ESDV-03P, TTL-L input
You may use either key 1 or key 2 to control (decide) if there is voltage output protection
Key 3: 2ESDV-06P, signal from water pump to the PSU
Key 4: ground
Key 5: Control input (DAC) : used to control the current output value from the PSU.
Key 6: REF 5V | TTL-H input (Key 1) | TTL-L input (Key 2) | Control input (DAC) | Laser output |
| No connection | Low(<0.3) | 0-4V | Pmin-Pmax |
| | High(>3) | 0-4V | 0 |
| Low(<0.3) | No connection | 0-4V | 0 |
| High(>3) | | 0-4V | Pmin-Pmax |
| Production key 3: off | 0-4V | 0 |
Remarks:
1)The fan will rotate simultaneously when there is current output.
2)If short circuited point 1 and point 2 on connector CZ3, the PSU will provide line-controlled- current mode for accurate industrial processing but at longer response time.
If short circuited point 2 and point 3 on connector CZ3 , the PSU will provide peak-controlled-current mode for quicker response time.
The PSU is set at peak-controlled-current mode at the factory.
3)Advance voltage is optional.
4)In case the PSU and the laser tube does not match each other, please try series-connect a resistance of 30-50K/50W in the high voltage circuit.Contact us!---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------| Lucy ( Over 10 years'experience) |
