80W Swithing Power Adapter with CE

Name: 80W Swithing Power Adapter with CE
Brand: all-electronics-online.com
SKU: 622018712
Availability: InStock
Rating: 4.3 (69 reviews)

Price:	US $ 5-12/Piece
Trade Terms:	FOB,others
Min Order:	500/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	YS80 series
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Experience:	20 Years'experience
Quick Delievery:	15-25 Days
Warranty:	3 Years' Warranty
Packaging:	PE Bag,White Box,Carton
Protection:	Short Circuit,Ovp,Ocp, Overheat
Usage:	Display
Output Type:	DC
Connection:	Desktop
Type:	OEM/ODM
Brand:	Yingjiao/OEM/ODM

Product Description

We are a professional manufacturer of switching power adapter/ switching power supply, AC adaptor, AC/DC power adaptor, etc. For over 15 years.

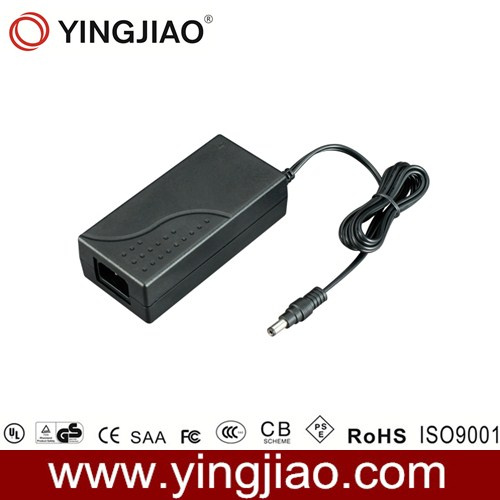

Model: YS80 series (SMPS)
Rated Power: 110W max.
Universal Input: 100-240V AC 50/60Hz

Output Specifications:
Model Output Load Voltage (V) Max. Load Current (A)
YS80-XX360 36 2.50
YS80-XX240 24 3.00
YS80-XX190 19 4.00
YS80-XX180 18 6.00
YS80-XX150 15 6.00
YS80-XX138 13.8 8.00
YS80-XX120 12 8.00
YS80-XX090 9 8.00
YS80-XX060 6 9.00
YS80-XX050 5 10.00
XX-represent rated output power

Features:

Universal Input: 100-240V AC 50/60Hz
Safety: UL/CUL/TUV/GS/CE/CCC compliance
RoHS & CEC Compliance
High efficiency & low power consumption
LED power indicator
Short Circuit Protection
Over Current Protection
Over Voltage Protection
Light Weight & Compact

Environmental:

Operating Temperature: 0 to +40 degrees centigrade
Storage Temperature: -40 to +70 degrees centigrade
Operating Humidity: 10% ~ 90% RH Non-condensing
Storage Humidity: 5% ~ 95% RH Non-condensing

Mechanical:

Dimensions: 129mm (L)*60mm (W)*26mm (H)
N. W.: About 300g
AC Input Plug: EU/US/UK/AUS, etc. Optional
Output plug: Optional

Packing details:

1 piece per plastic bag + inner box
50PCS/CTN
CTN Dimension: 34*31*37CM

Output Load Voltage (V)	5-36V
Max. Load Current (A)	2.50-10A

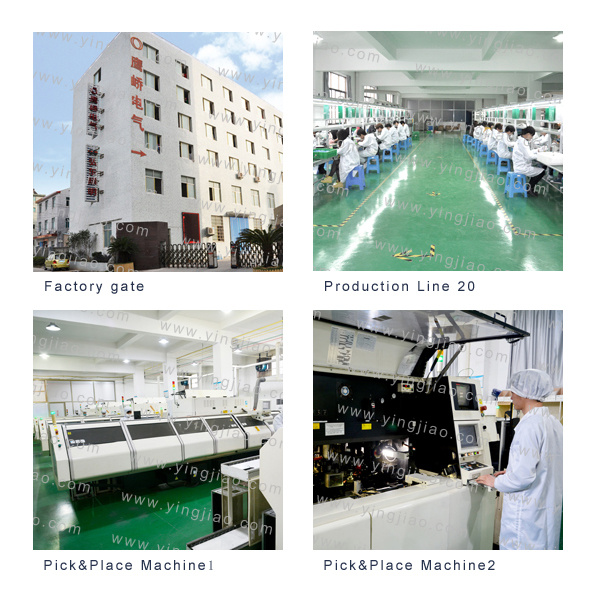

Yingjiao Electrical Co., Ltd., established in 1996, is a leading manufacturer and exporter of switching power adapters, linear AC/DC adapters, transformers, chargers, car chargers, power cords, tripods, etc. We can also design and manufacture power supply products with specifications according to the various demands of different customers.

Located in Ningbo, a coastal city in East China, we possess a convenient location and transportation facility. With an area of 15000 square meters, we have about 800 skillful employees. Being exported to Europe, America, Japan, Australia, and many other countries and regions, our products have won good comments from our customers.

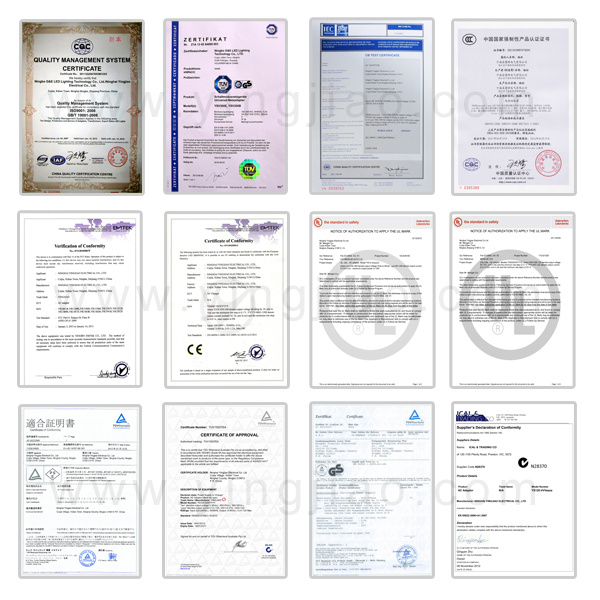

We have a strict quality control and guarantee system and have been ISO 9001: 2000 and SGS certified. All our main products have obtained CE approvals of the European Union and CQC and CCC approvals of Chinese quality certification center. Besides, we also carry out the international authoritative certifications, such as UL, cUL, TUV, CSA, and GS.

We commit to supply high quality products and competitive prices to our customers with professional technologies and top-ranking services.

ODM/OEM partners are welcome too.
