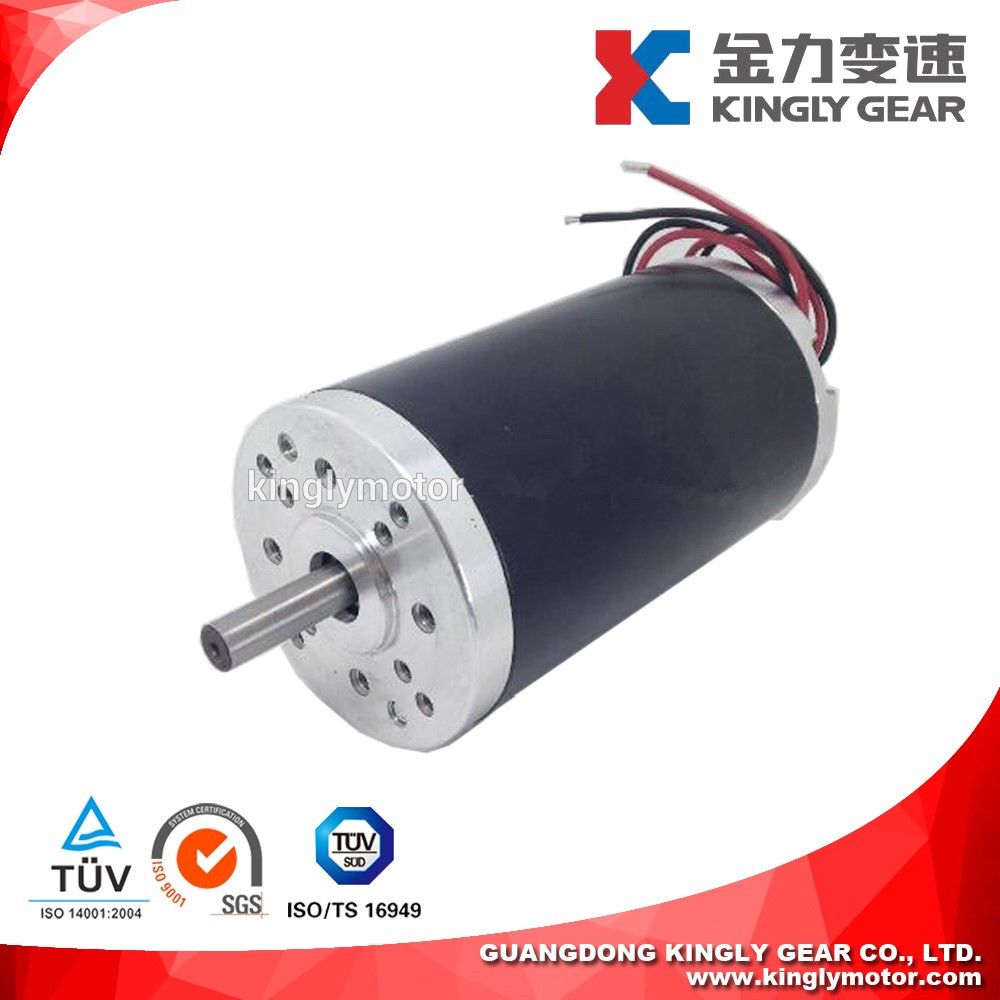

80zyt Permanent Magnet DC Motor 12volt RoHS Electric DC Motor
| Price: |
US $ 10-20/Piece |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
76ZYT |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Oceania,Mid East,Eastern Asia |
| Model Number: |
76zyt |
| Voltage(V): |
24V |
| Output Power: |
DC Motor |
| Rated Voltage: |
12VDC-24VDC |
| Size: |
82mm |
| Item: |
12V DC Brushed Motor |
| Application: |
Boat, Electric Bicycle |
| Operating Speed: |
Constant Speed |
| Structure And Working Principle: |
Brush |
| Excitation Mode: |
Permanent Magnet |
| Number Of Poles: |
Ie 1 |
| Type: |
Micro Motor |
| Certification: |
Ce, RoHS, UL |
| Brand: |
Kingly |
Product Description
Packaging & DeliveryPackaging Details:Standard export cartons
Delivery Time:15 days
Dc Motor :
DC MOTOR
Diameter82 mm
1,Environmental conditions: -10--40°C
2,Number of Poles:2
3,Magnet material:Hard Ferrit
4,Insulation Class:B
5,We can design the special voltage and shaft,and so on.
|
|
| |
| Specification |
| Model | 76ZYT01 | 76ZYT02 | 76ZYT03 | | Voltage | V | 24 | | No load speed | rpm | 3200 | | Rated torque | Nm | 0.28 | 0.46 | 0.65 | | Rated speed | rpm | 2680 | 2680 | 2680 | | Rated current | A | 4.7 | 7.6 | 11.0 | | Stall torque | Nm | 1.45 | 2.40 | 3.40 | | Stall current | A | 26.8 | 45.0 | 63.0 | | Rotor inertia | Kgmm2 | 170 | 285 | 400 | | Back-EMF constant | V/krpm | 7.20 | | Torque Constant | Nm/A | 0.0688 | | Resistance(20°C) | ohm | 1.00 | 0.60 | 0.45 | | Weight | Kg | 1.0 | 1.4 | 2.0 | | L1 | mm | 98 | 118 | 138 | | Rotor:La | mm | 30 | 50 | 70 |
|
|
