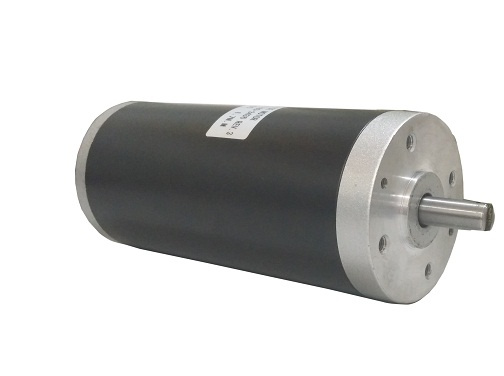

80zyt180-2436 2600rpm High Speed DC Motor for Pump

Name: 80zyt180-2436 2600rpm High Speed DC Motor for Pump
Brand: all-electronics-online.com
SKU: 825342855
Availability: InStock
Rating: 4.5 (21 reviews)

Price:	US $ 85-100/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	80YT180-2436
Application:	Household Appliances
Operating Speed:	High Speed
Excitation Mode:	Excited
Structure And Working Principle:	Brush
Type:	Zyt
Brand:	Sunrise Motor

Product Description

PMDC MOTOR 80ZYT180

Motor specifications:

Model	Voltage (V DC)	No Load		Rated Load			Length (mm)
Model	Voltage (V DC)	Current (A)	Speed (r/min)	Torque (N.m)	Current (A)	Speed (r/min)	Length (mm)
80ZYT180-2436	24	1.5	3600	1.7	32	2600	180

Motor can add gearbox.

Changzhou Sunrise Electric Motor Company was founded in 2004 and is located about 200 km west of Shanghai. SUNRISE ELECTRIC MOTOR manufacture and export PMDC motors, BLDC motors, Hybrid Stepping motors with high torque output (0.2N. M - 28N. M), and customized motors which are per customers' drawings, specification and technical requirements. Also, we source and customize products associated with electric motor applications such as, motor controllers and drivers, motor sensing boards (PCB), etc.

The motors introduced can be used for commercial and residential applications such as industrial automation, office equipment, appliances for household, etc.

The motors listed have been exported overseas through our sales representatives in North America and Europe.
