82zyt152 24VDC 0.9n. M 3000ROM 282W Magnet DC Motor

Name: 82zyt152 24VDC 0.9n. M 3000ROM 282W Magnet DC Motor
Brand: all-electronics-online.com
SKU: 670790425
Availability: InStock
Rating: 5 (134 reviews)

Price:	US $ 19.23-30/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	82ZYT152-2435
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	82zyt152-2435
Voltage:	24VDC
Current:	16A
Rated Speed:	3000rpm
Rated Torque:	0.9n.M
No-Load Speed:	3500rpm
Power:	282W
Motor Length:	152mm
Application:	Power Tools
Operating Speed:	Adjust Speed
Excitation Mode:	Excited
Structure And Working Principle:	Brush
Type:	PMDC Motor
Certification:	SGS
Brand:	Sunrise Motor

Product Description

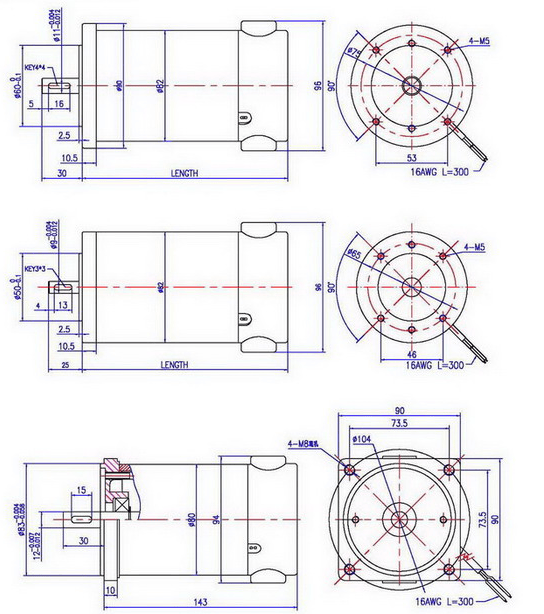

82ZYT SERIES PMDC MOTOR
MODEL: 82ZYT152-2435
VOLTAGE: 24V
TORQUE: 0.9N. M
CURRENT: 16A
SPEED: 3000rpm
POWER: 282W
LENGTH: 152mm

SPECIAL MOTORS CAN BE CUSTOMIZED PER YOUR REQUIREMENTS.

Model	Voltage (V DC )	No load		Rated load			Length (mm)
Model	Voltage (V DC )	Current (A)	Speed (r/min)	Torque (N.m)	Current (A)	Speed (r/min)	Length (mm)
82ZYT152-2435	24	1.5	3500	0.9	16	3000	152

Changzhou Sunrise Electric Motor Company was founded in 2004 and is located about 200 km west of Shanghai. SUNRISE ELECTRIC MOTOR manufacture and export PMDC motors, BLDC motors, Hybrid Stepping motors with high torque output (0.2N. M - 28N. M), and customized motors which are per customers' drawings, specification and technical requirements. Also, we source and customize products associated with electric motor applications such as, motor controllers and drivers, motor sensing boards (PCB), etc.

The motors introduced can be used for commercial and residential applications such as industrial automation, office equipment, appliances for household, etc.

The motors listed have been exported overseas through our sales representatives in North America and Europe.
