84V 8A Lead Acid Battery Charger

Name: 84V 8A Lead Acid Battery Charger
Brand: all-electronics-online.com
SKU: 799814695
Availability: InStock
Rating: 4.4 (67 reviews)

Price:	Negotiable/Piece
Min Order:	200/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	QW840-080-S
Input Voltage:	AC100-240V 50/60Hz
Voltage:	84V
Desktop Type:	Yes
Delivery Date:	15days
Warranty:	One Year
Charger Type:	Electric Charger
Type:	Lead Acid Battery
Nominal Voltage:	84V
Socket Type:	Can Be Customized

Product Description

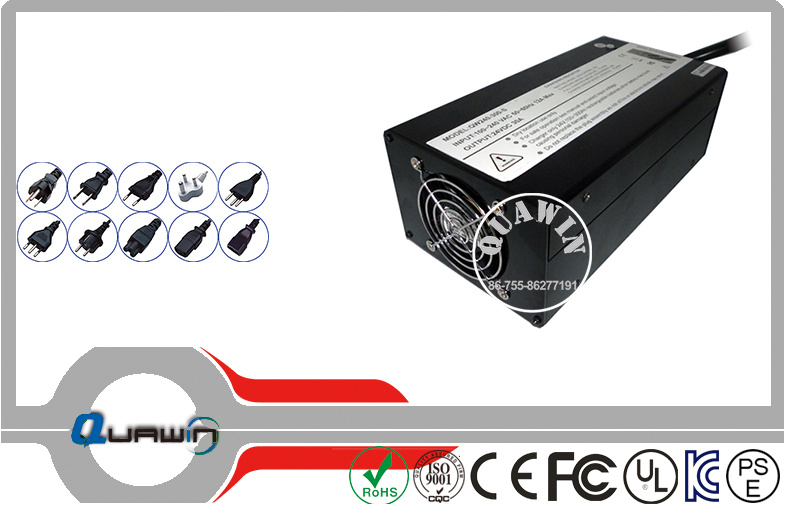

84V Lead acid battery charger(84V 8A)

Quick Detail:
Brand Name: QUAWIN
Model Number: QW840-080-S
Use: 84V Lead-Acid Battery
Type: Electric
Place of Origin: Guangdong China (Mainland)
Battery charger: Automatic battery charger 102.9V
Color: Black/Silver
Input voltage: AC 100~240V 50/60Hz with PFC
Output voltage: 102.9V
Output current: 8A
Output power: 823.2W
Output Connector: Alligator Clip, SR175A Output Plug, SB175A Output Plug, SB50A Output Plug, Custom

Packaging & Delivery:
Inner package: White box/polybags/at your request outer package: Carton
Delivery Detail: Sample within 5 work days, 7~25 days for bulk order

Specifications:
Portable fast SLA/AGM/VRLA /GEL charger 84V lead acid battery charger

Features:
• Fully auto CC +CV(H)+CV(L) charging process, with MCU controller.
• Constant big charging current for faster charging,
• automatically charging ending with Cut-Off output.
• Aluminum case with Fan Cooling
• It can charge any 84V SLA/VRLA/GEL/AGM battery with capacity 50-60Ah

Specification:
• Input: AC 100~240V 50/60Hz with PFC
• Output: DC 102.9V
• Charging current: 8A
• Full Load Efficiency: ≥87%
• Shock & Vibration: SAEJ1378 Standard
• Operating Temperature: -20ºC~45ºC (-20ºF~+113ºF)
• Weight: 2500g(only body)
• Dimension: 234*120*84mm

Safety protections:
• Over Voltage protection
• Short Circuit protection
• Polarity error protection
• Over power protection

LED Indicator:
• GREEN Light ON: Fully charged or no connected.
• BLUE Light flash: Battery is being charged.
• RED Light ON: Charger under protection (over temperature protection, output short-circuit protection, reverse polarity protection, output over-voltage protection).
Call us to know more details datasheet.

ITEM	QW120-310-S	QW120-320-S	QW120-330-S	QW120-340-S	QW120-350-S	QW240-210-S
Output voltage:	14.7V	14.7V	14.7V	14.7V	14.7V	29.4V
Rated output current:	31A	32A	33A	34A	35A	21A
Output power:	455.7W	470.4W	485.1W	499.8W	514.5W	617.4W
ITEM	QW240-220-S	QW240-230-S	QW240-240-S	QW240-250-S	QW240-260-S	QW240-270-S
Output voltage:	29.4V	29.4V	29.4V	29.4V	29.4V	29.4V
Rated output current:	22A	23A	24A	25A	26A	27A
Output power:	646.8W	676.2W	705.6W	735W	764.4W	793.8W
ITEM	QW240-280-S	QW240-290-S	QW240-300-S	QW360-140-S	QW360-150-S	QW360-160-S
Output voltage:	29.4V	29.4V	29.4V	44.1V	44.1V	44.1V
Rated output current:	28A	29A	30A	14A	15A	16A
Output power:	823.2W	852.6W	882W	617.4W	661.5W	705.6W
ITEM	QW360-170-S	QW360-180-S	QW360-190-S	QW360-200-S	QW480-110-S	QW480-120-S
Output voltage:	44.1V	44.1V	44.1V	44.1V	58.8VV	58.8V
Rated output current:	17A	18A	19A	20A	11A	12A
Output power:	749.7W	793.8W	837.9W	882W	646.8W	705.6W
ITEM	QW480-130-S	QW480-140-S	QW480-150-S	QW600-090-S	QW600-100-S	QW600-110-S
Output voltage:	58.8V	58.8V	58.8V	73.5V	73.5V	73.5V
Rated output current:	13A	14A	15A	9A	10A	11A
Output power:	764.4W	823.2W	882W	661.5W	735W	808.5W
ITEM	QW600-120-S	QW720-070-S	QW720-080-S	QW720-090-S	QW720-100-S	QW840-060-S
Output voltage:	73.5V	88.2V	88.2V	88.2V	88.2V	102.9V
Rated output current:	12A	7A	8A	9A	10A	6A
Output power:	882W	617.4W	705.6W	793.8W	882W	617.4W
ITEM	QW840-070-S	QW840-080-S	QW960-060-S
Output voltage:	102.9V	102.9V	117.6VV
Rated output current:	7A	8A	6A
Output power:	720.3W	823.2W	705.6W
