| Prod Model: |
KA-S36 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty: |
Two Years |
| Bulk Order Delivery Time: |
Within 25 Days |
| Samples Delivery Time: |
Within 2 Days |
| Usage: |
All Kinds of Lamp |
| Type: |
Infrared Sensor Switch |
| Principle: |
Infrared |
| Standard: |
Standard |
| Certification: |
CE |
| Application: |
Corridor, Warehouse, Garage, Toilets etc. |
| Wires: |
Two-Wires and Three-Wires for Your Choice |
Product Description

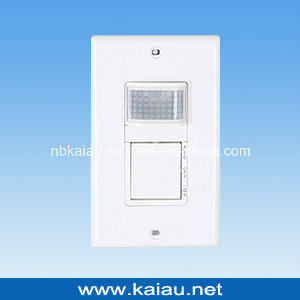

KA-S36 86 Type Wall Flush Mount PIR Motion Sensor Switch specifications:1) Power source: 120V/AC-277V/AC
2) Power frequency: 50/60Hz
3) Detection range: 180°
4) Detection distance: 8m max(22° C)
5) Ambient Light: 2~1000lux(adjustable)
6) Time setting: Min: 8sec± 3sec; Max: 20min± 3min(adjustable)
7) Rated load: 350W Max (120V/AC); 500W Max (277V/AC)
8) Working temperature: -10~+40° C
9) Installation height: 1m-2m

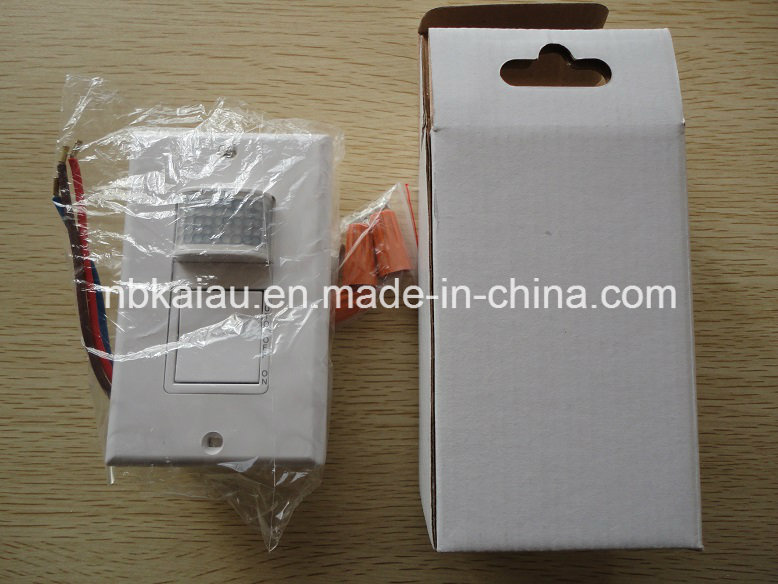

Package:
1) White box or customized color box
2) Carton size: 42.5*41*38.5cm
3) Gross weight: 17.1KGS
4) Quantity/carton: 120PCS
KA-S36 features:1) New, low-profile design eliminates obtrusive "scanning-device" look.
2) 180° Field-of-view provides approximately 90 square meters of coverage suitable for small offices, conference rooms, class rooms, lounges and a variety of commercial areas.
3) Convenient push-button provides manual ON/OFF/AUTO light switching at any time.
4) Optional manual adjustment for delayed-OFF time settings of 8± 2 seconds to 20± 3 minutes. Allows customized adjustments to maximize energy saving.
5) Adjustable Ambient Light Override ranges from approximately 2 foot-candles (2lux) to 1000 foot-candles (1000lux) to prevent lights from turning ON automatically during periods of ample natural light, increasing energy savings.
6) One unit can be used for either 120V or 277V lighting.
7) Limited Five-Year Warranty
8) Fits in standard wall-box and replaces single-pole wall switch.
Product introduction:KA-S36 is a new energy-saving lighting switch, it adopts high sensitivity detector, MCU control, controllable Silicon and SMT; It gathers automatic, convenient, safety and practical functions; The wide detection range is made up of the up and down, left and right service field; It utilizes the infrared energy from Human Body as the control-signal source, When one enters the detection field, it will start the controlled load; It can identify day and night automatically; Its installation is convenient and its range is wide; It has the functions of the power indication and the detection indication.

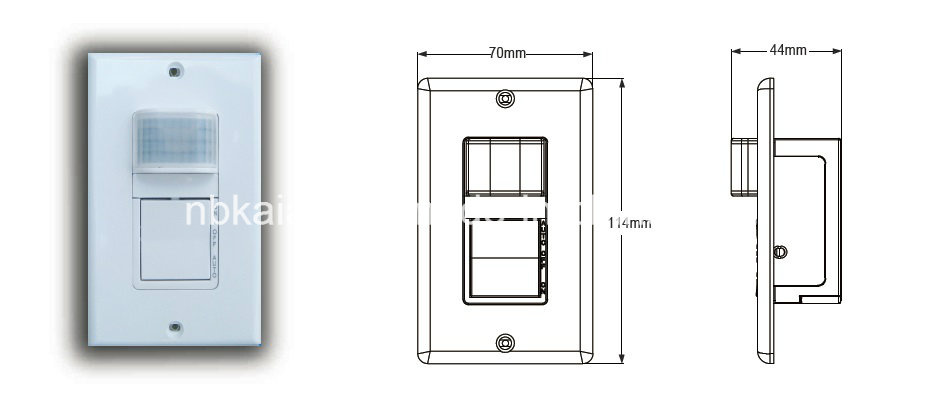

KA-S36 Dimension:

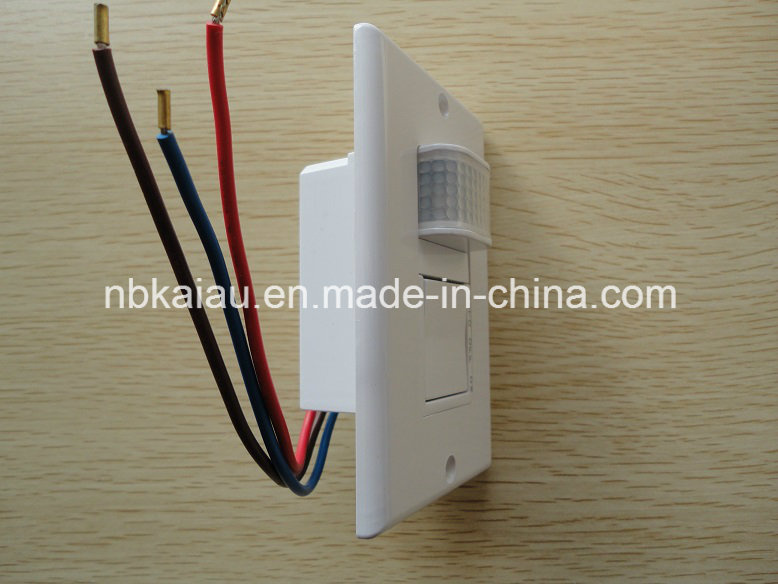

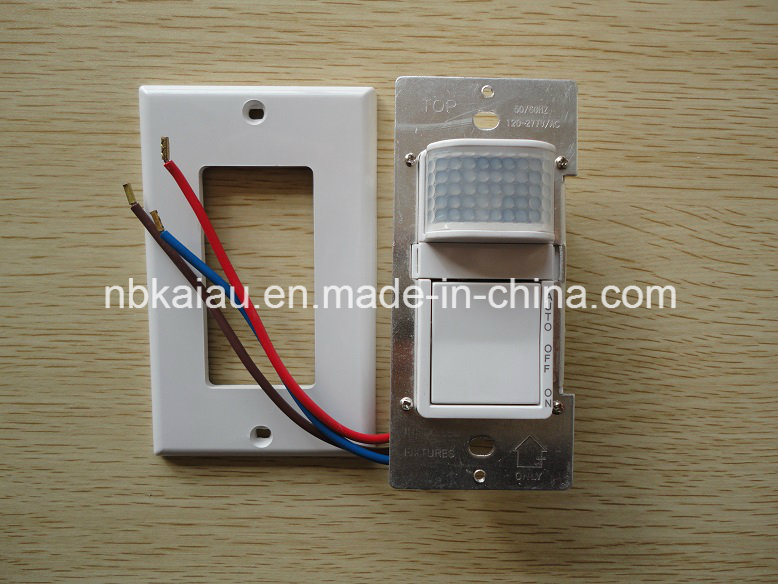

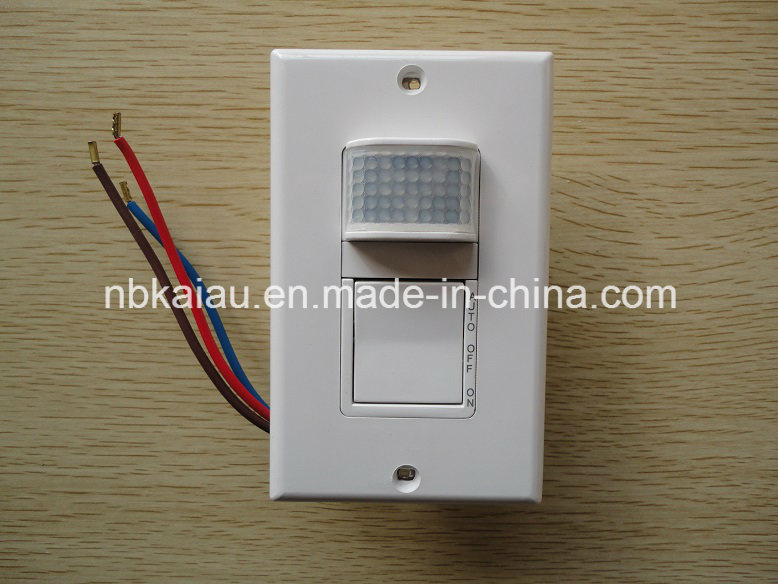

KA-S36 Actual photos:
