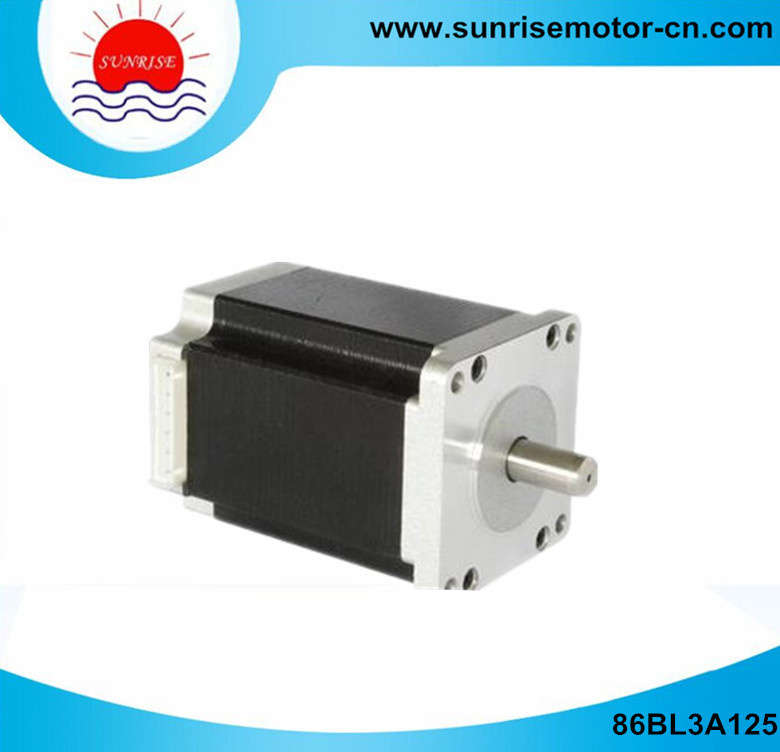

86bl3a125 NEMA34 310VDC BLDC Electric Motor

Name: 86bl3a125 NEMA34 310VDC BLDC Electric Motor
Brand: all-electronics-online.com
SKU: 725893855
Availability: InStock
Rating: 4.8 (34 reviews)

Price:	US $ 81.39-86.3/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	86BL3A125
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	86bl3a125
Voltage:	310VDC
Power:	660W
Rated Speed:	3000rpm
Rated Torque:	2.1n.M
Rated Current:	2.5A
Winding Class:	B
Weight:	3.95kg
Application:	Power Tools
Operating Speed:	Adjust Speed
Excitation Mode:	Excited
Structure And Working Principle:	Brushless
Type:	BLDC
Certification:	SGS
Brand:	Sunrise Motor

Product Description

NEMA23 86MM Series Brushless DC (BLDC) Electric Motor

Model: 86BL3A125
VOLTAGE: 310V
POWER: 660W
SPEED: 3000RPM
CURRENT: 2.5A
TORQUE: 2.1N. M
NUMBER OF POLES: 8
WINDING CLASS: B

Remark:
1. We can produce motor according to customer's requirements.

2. Can match encoder.

			86BL3A70			86BL3A100	86BL3A125
Specification		unit	-B	-E	-E		-C
Rated voltage	U	V	36	310	310		310
Rated out power	P out	W	220	220	440		660
Rated speed	n N	rpm	3000
Rated current	I N	A	7.6	0.82	1.65		2.5
Rated torque	T N	N.m	0.7	0.7	1.4		2.1
Peak current	I P	A	21	2	5		7.6
Peak torque	T p	N.m	2	2.2	4.5		5.1
Voltage constant	K E	V/ Krpm	9.1	84	85		85
Torque constant	K T	N.m/A	0.093	0.85	0.9		0.92
Rotor inertia	J	Kg.cm 2	0.8	0.8	1.6		2.4
Number of poles	N P		8	8	8		8
Winding class			B	B	B		B
Motor weight		Kg	1.85	1.85	2.6		3.95

Figure:

Changzhou Sunrise Electric Motor Company was founded in 2004 and is located about 200 km west of Shanghai. SUNRISE ELECTRIC MOTOR manufacture and export PMDC motors, BLDC motors, Hybrid Stepping motors with high torque output (0.2N. M - 28N. M), and customized motors which are per customers' drawings, specification and technical requirements. Also, we source and customize products associated with electric motor applications such as, motor controllers and drivers, motor sensing boards (PCB), etc.

The motors introduced can be used for commercial and residential applications such as industrial automation, office equipment, appliances for household, etc.

The motors listed have been exported overseas through our sales representatives in North America and Europe.
