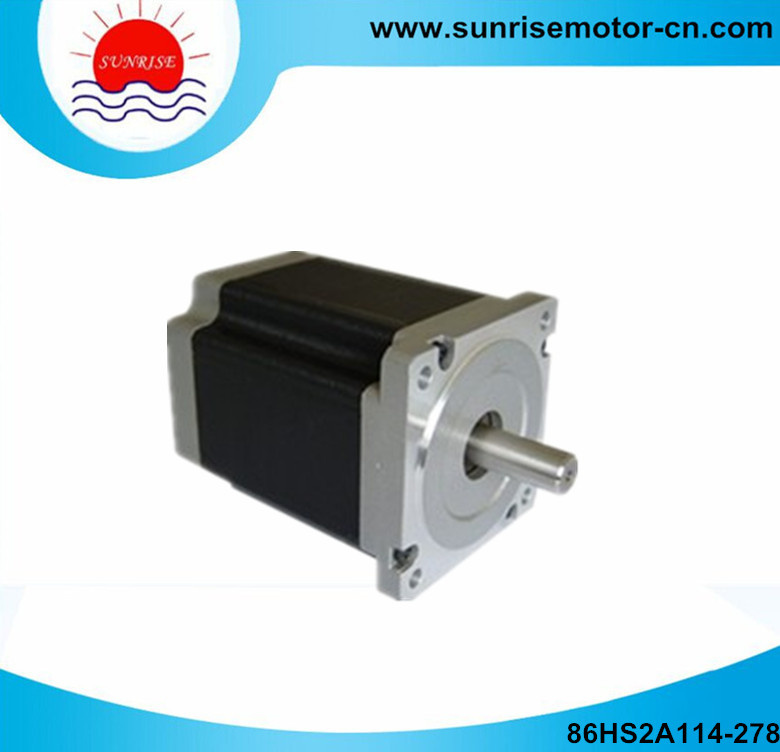

86hs2a114 NEMA34 2.7A 580n. Cm 1.8deg. CNC Stepper Motor

Name: 86hs2a114 NEMA34 2.7A 580n. Cm 1.8deg. CNC Stepper Motor
Brand: all-electronics-online.com
SKU: 734174985
Availability: InStock
Rating: 4.7 (89 reviews)

Price:	US $ 42.74-44.35/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	100/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	86HS2A114-278
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	86hs2a114-278
Holding Torque:	580n.Cm
Current:	2.7A
Resistance:	2ohms
Inductance:	11.5mh
Length:	114mm,
Weight:	3.5kg
Wire:	8
Type:	Electromechanical
Number Of Stator:	Two-Phase
Excitation Mode:	HB-Hybrid
Operate Mode:	The Three Single Phase
Brand:	Sunrise Motor
Certification:	SGS

Product Description

2-Phase Hybrid Stepping Motor
1.8° NEMA34

Model: 86HS114-278
Holding torque: 580N. Cm
Current: 2.7A
Resistance: 2ohms
Inductance: 11.5mH
Wire: 8
Length: 114mm,
Weight: 3.5kg

Remark:
We can produce motor according to customer's requirements.

Model	Holding Torque (N@cm±10%)	Current/Phase (A)	Resistance/Phase (ohms±10%)	Inductance/Phase (mH±20%)	Detent Torque (N@cm)	Rotor Inertia (Kg-cm 2 )	Length (mm)	Weight (kg)
86HS2A66-408	220	4.0	0.6	1.6	5.5	0.85	66	2.0
86HS2A66-508	220	5.0	0.4	1.0	5.5	0.85	66	2.0
86HS2A66-278	220	2.7	1.2	3.5	5.5	0.85	66	2.0
86HS2A78-408	300	4.0	0.7	3.0	6.5	1.05	78	2.5
86HS2A78-508	300	5.0	0.5	1.8	6.5	1.05	78	2.5
86HS2A78-278	300	2.7	1.6	5.6	6.5	1.05	78	2.5
86HS2A98-408	490	4.0	0.98	4.1	9.5	1.55	98	3.0
86HS2A98-508	490	5.0	0.65	2.4	9.5	1.55	98	3.0
86HS2A98-278	490	2.7	1.9	8.6	9.5	1.55	98	3.0
86HS2A114-408	580	4.0	1.1	5.5	12.5	1.8	114	3.5
86HS2A114-508	580	5.0	0.75	3.2	12.5	1.8	114	3.5
86HS2A114-278	580	2.7	2.0	11.5	12.5	1.8	114	3.5
86HS2A126-408	640	4.0	1.3	5.8	18.5	2.2	126	3.8
86HS2A126-508	640	5.0	0.85	3.4	18.5	2.2	126	3.8
86HS2A126-278	640	2.7	2.5	12.5	18.5	2.2	126	3.8
86HS2A150-408	850	4.0	1.4	9.2	24.5	2.5	150	4.2
86HS2A150-508	850	5.0	0.9	5.2	24.5	2.5	150	4.2
86HS2A150-278	850	2.7	2.9	17.5	24.5	2.5	150	4.2

Changzhou Sunrise Electric Motor Company was founded in 2004 and is located about 200 km west of Shanghai. SUNRISE ELECTRIC MOTOR manufacture and export PMDC motors, BLDC motors, Hybrid Stepping motors with high torque output (0.2N. M - 28N. M), and customized motors which are per customers' drawings, specification and technical requirements. Also, we source and customize products associated with electric motor applications such as, motor controllers and drivers, motor sensing boards (PCB), etc.

The motors introduced can be used for commercial and residential applications such as industrial automation, office equipment, appliances for household, etc.

The motors listed have been exported overseas through our sales representatives in North America and Europe.
