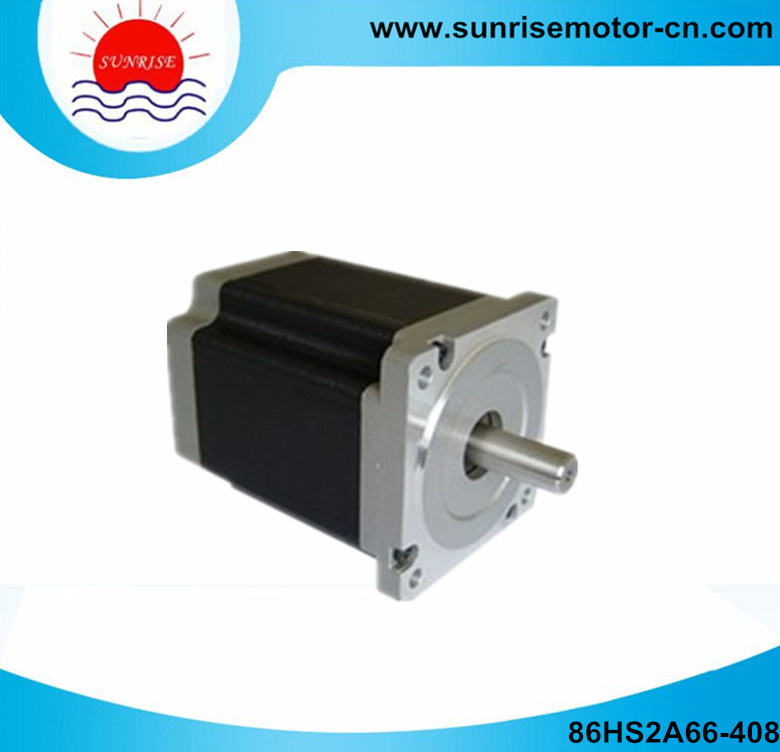

86hs2a66 220n. Cm 4A NEMA34 1.8deg. Stepper Motor for CNC Machine

Name: 86hs2a66 220n. Cm 4A NEMA34 1.8deg. Stepper Motor for CNC Machine
Brand: all-electronics-online.com
SKU: 670505355
Availability: InStock
Rating: 4.8 (40 reviews)

Price:	US $ 27.42-29.03/Piece
Trade Terms:	FOB,EXW,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	86HS2A66-408
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	86hs2a66-408
Current:	4A
Holding Torque:	220n.Cm
Reistance:	0.6ojms
Inductance:	1.6mh
Wire:	8
Length:	66
Weight:	2kg
Number Of Stator:	Two-Phase
Excitation Mode:	HB-Hybrid
Operate Mode:	The Three Single Phase
Brand:	Sunrise Motor
Application:	CNC Machine
Type:	2 Phase Stepper Motor
Certification:	SGS

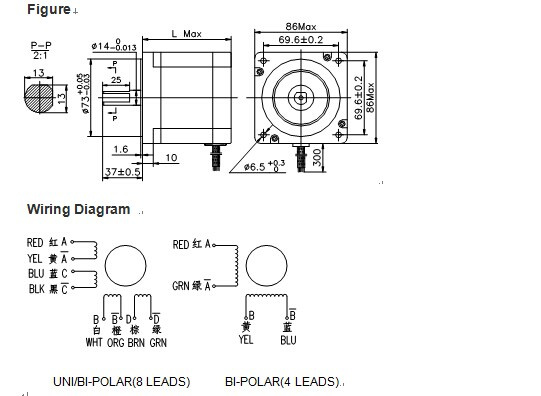

Product Description

2Phase Hybrid Stepping motor
1.8° NEMA34

Model: 86HS2A66-408
Holding torque: 220N. Cm
Current: 4A
Reistance: 0.6ohms
Inductance: 1.6mH
Length: 66mm
Weight: 2kg
Wire: 8

Remark:
We can produce motor according to customer's requirement.

Model	Holding torque (N.cm±10%	Current/ Phase (A)	Resistance/ Phase (ohms±10%)	Inductance/ Phase (mH±20%)	Detent Torque (N.cm)	Rotor Inertia (g-cm 2)	Lenght (mm)	Weight (Kg)
86HS2A66-408	220	4.0	0.6	1.6	5.5	0.85	88	2

Changzhou Sunrise Electric Motor Company was founded in 2004 and is located about 200 km west of Shanghai. SUNRISE ELECTRIC MOTOR manufacture and export PMDC motors, BLDC motors, Hybrid Stepping motors with high torque output (0.2N. M - 28N. M), and customized motors which are per customers' drawings, specification and technical requirements. Also, we source and customize products associated with electric motor applications such as, motor controllers and drivers, motor sensing boards (PCB), etc.

The motors introduced can be used for commercial and residential applications such as industrial automation, office equipment, appliances for household, etc.

The motors listed have been exported overseas through our sales representatives in North America and Europe.
