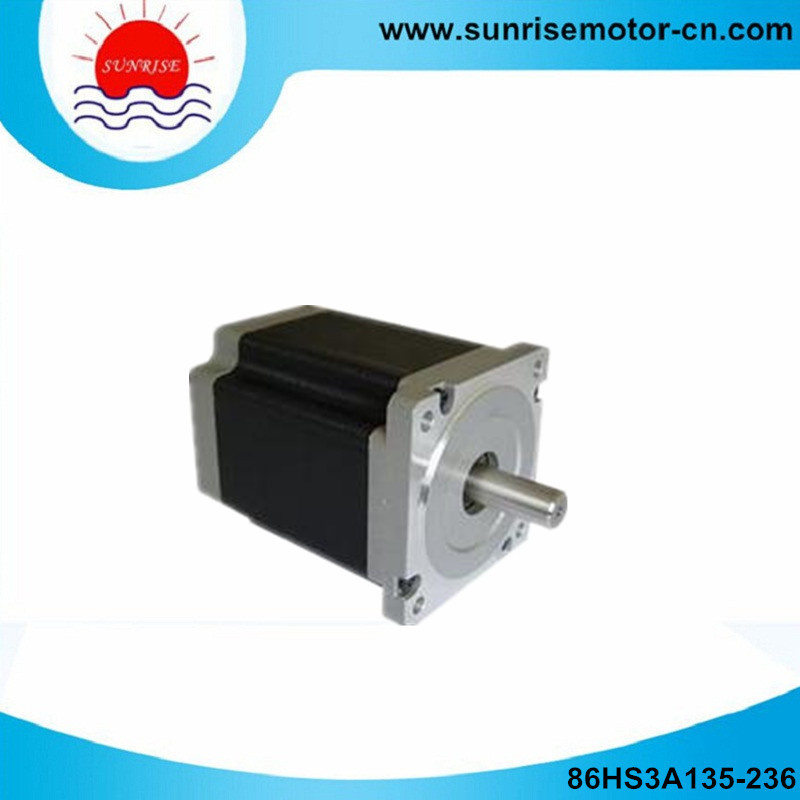

86hs3a135-236 6.78n. Cm 2.3A NEMA34 CNC 3 Phase Hybrid Stepper Motor

Name: 86hs3a135-236 6.78n. Cm 2.3A NEMA34 CNC 3 Phase Hybrid Stepper Motor
Brand: all-electronics-online.com
SKU: 726074605
Availability: InStock
Rating: 4.4 (128 reviews)

Price:	US $ 61.94-67.1/Piece
Trade Terms:	FOB,CIF,CIP
Min Order:	100/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	86HS3A135-236
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	86hs3a135-236
Holding Torque:	6.78n.M
Current:	2.3A
Resistance:	7.3ohms
Inductance:	36mh
Length:	135mm
Weight:	4kg
Wire:	6
Type:	Electromechanical
Number Of Stator:	Three-Phase
Excitation Mode:	HB-Hybrid
Operate Mode:	The Three Single Phase
Number Of Poles:	3phase
Brand:	Sunrise Motor
Certification:	SGS

Product Description

3-Phase Hybrid Stepping Motor
NEMA34

Model: 86HS3A135-236
Holding torque: 6.78N. M
Current: 2.3A,
Resistance: . 7.3ohms
Inductance: 36mH
Length: 135mm
Weight: , 4kg

Motor are available with differnet winding and mechanical modification to meet specific applications.

Model	Holding Torque (N@ m± 10%)	Current /Phase(A)	Resistance /Phase (ohms± 10%)	Inductance /Phase (mH± 20%)	Rated Torque (N@ m)	Rotor Inertia (Kg-cm 2)	Length (mm)	Weight (Kg)
86HS3A70-506	2.26	5.0	0.95	2.3	2	1.17	71	1.7
86HS3A105-206	4.52	2.0	6.0	25	4	2.34	103	2.85
86HS3A105-506	4.52	5.0	1.2	4.2	4	2.34	103	2.85
86HS3A135-236	6.78	2.3	7.3	36	6	3.51	135	4
86HS3A135-506	6.78	5.0	1.65	6	6	3.51	135	4

Changzhou Sunrise Electric Motor Company was founded in 2004 and is located about 200 km west of Shanghai. SUNRISE ELECTRIC MOTOR manufacture and export PMDC motors, BLDC motors, Hybrid Stepping motors with high torque output (0.2N. M - 28N. M), and customized motors which are per customers' drawings, specification and technical requirements. Also, we source and customize products associated with electric motor applications such as, motor controllers and drivers, motor sensing boards (PCB), etc.

The motors introduced can be used for commercial and residential applications such as industrial automation, office equipment, appliances for household, etc.

The motors listed have been exported overseas through our sales representatives in North America and Europe.
