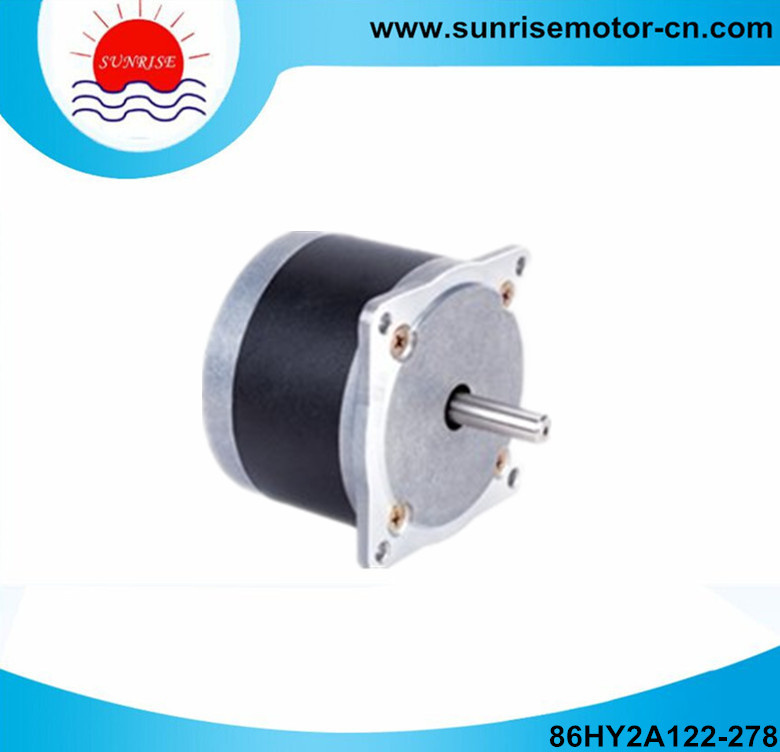

86hy2a122 450n. Cm 2.7A NEMA34 1.8deg. Stepper Motor for CNC Machine

Name: 86hy2a122 450n. Cm 2.7A NEMA34 1.8deg. Stepper Motor for CNC Machine
Brand: all-electronics-online.com
SKU: 734166475
Availability: InStock
Rating: 5 (55 reviews)

Price:	US $ 42.74-44.35/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	100/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	86HY2122-278
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	86hs2a122-278
Current:	2.7A
Holding Torque:	450n.Cm
Resistance:	2.5ohms
Inductance:	12.5mh
Length:	122mm
Wire:	8
Weight:	3.8kg
Type:	Electromechanical
Number Of Stator:	Two-Phase
Excitation Mode:	HB-Hybrid
Operate Mode:	The Three Single Phase
Brand:	Sunrise Motor
Application:	CNC Machine
Certification:	SGS

Product Description

2Phase Hybrid Stepping motor
1.8° NEMA34

Model: 86HY2A122-278
Holding torque: 450N. Cm
Current: 2.7A
Resistance: 2.5ohms
Inductance: 12.5mH
Length: 122mm
Weight: 3.8kg
Wire: 8

Remark:
We can produce motor according to customer's requirements.

Model	Holding Torque (N@cm±10%)	Current/Phase (A)	Resistance/Phase (ohms±10%)	Inductance/Phase (mH±20%)	Detent Torque (N@cm)	Rotor Inertia (Kg-cm 2 )	Length (mm)	Weight (kg)
86HY2A63-408	180	4.0	0.68	2.0	4.5	0.64	63	1.6
86HY2A63-508	180	5.0	0.45	1.5	4.5	0.64	63	1.6
86HY2A63-278	180	2.7	1.2	4.5	4.5	0.64	63	1.6
86HY2A63-218	180	2.1	1.9	7.2	4.5	0.64	63	1.6
86HY2A92-408	320	4.0	0.89	3.8	6.5	1.3	92	2.6
86HY2A92-508	320	5.0	0.58	2.8	6.5	1.3	92	2.6
86HY2A92-278	320	2.7	1.7	9.0	6.5	1.3	92	2.6
86HY2A92-218	320	2.1	2.7	15	6.5	1.3	92	2.6
86HY2A122-408	450	4.0	1.1	5.6	10.5	1.9	122	3.8
86HY2A122-508	450	5.0	0.82	3.6	10.5	1.9	122	3.8
86HY2A122-278	450	2.7	2.5	12.5	10.5	1.9	122	3.8

Changzhou Sunrise Electric Motor Company was founded in 2004 and is located about 200 km west of Shanghai. SUNRISE ELECTRIC MOTOR manufacture and export PMDC motors, BLDC motors, Hybrid Stepping motors with high torque output (0.2N. M - 28N. M), and customized motors which are per customers' drawings, specification and technical requirements. Also, we source and customize products associated with electric motor applications such as, motor controllers and drivers, motor sensing boards (PCB), etc.

The motors introduced can be used for commercial and residential applications such as industrial automation, office equipment, appliances for household, etc.

The motors listed have been exported overseas through our sales representatives in North America and Europe.
