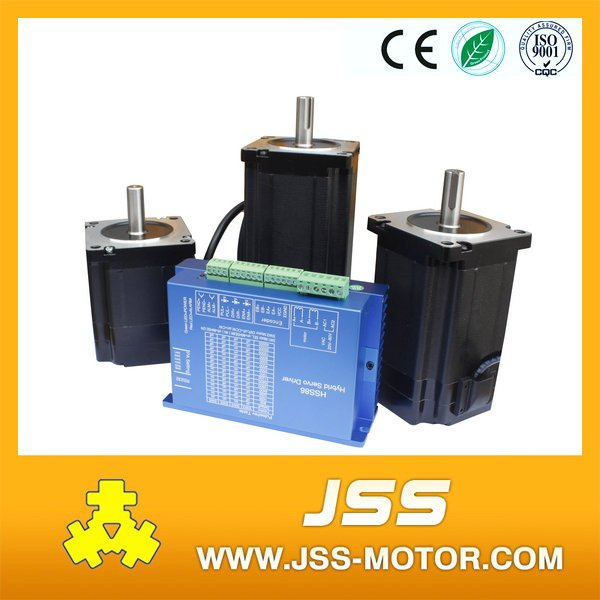

86mm Series Closed Loop Stepper Motor with 12n. M Promotion

Name: 86mm Series Closed Loop Stepper Motor with 12n. M Promotion
Brand: all-electronics-online.com
SKU: 811708575
Availability: InStock
Rating: 4.4 (129 reviews)

Price:	US $ 30-180/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	86HSe12N-BC38
Step Angle:	1.8
Frame Size:	86mm X 86mm
Current:	6.0A
Resistance:	0.45
Inductance:	5.2mh
Holding Torque:	120kg.Cm
Motor Body Length:	156mm
Lead Wires:	4
Number Of Stator:	Two-Phase
Excitation Mode:	HB-Hybrid
Type:	Magnetic-Electric
Operate Mode:	Driver
Certification:	Ce
Brand:	Jss

Product Description

Nema 34 closed loop stepper motor:
Features:
1. Higher speed than open loop stepper motor
2. Higher torque at high speed than open loop stepper motor.
3. More accuracy than open loop stepper motor, avoid the problem losing steps.
4. Low cost, better performance.

Nema 34 closed loop series

Mode	Step angle	Current (A)	Resistance (Ω±10%)	Inductance (mH±20%)	Holding torque (N.m)	Motor length(mm)	Encoder Resolution (PPR)	Weight (kg)
86HSE4N-BC38	1.8°	6.0	0.45	3.7	4.5	82	1000	2.65
86HSE8N-BC38	1.8°	6.0	0.44	3.7	8.0	118	1000	4.0
86HSE12N-BC38	1.8°	6.0	0.45	5.2	12.0	156	1000	5.65

Description:
Step Angle Accuracy: ±5%
Resistance Accuracy: ±10%
Inductance Accuracy: ±20%
Temperature Rise: 80°C Max
Ambient Temperature: -20°C~+50°C
Insulation Resistance: 100MΩ Min., 500VDC
Dielectric Strength: 500VAC for one minute
Shaft Radial Play: 0.02Max (450g-load)
Shaft Axial Play: 0.08Max (450g-load)
Encoder lines: 1000 lines

We also produce linear stepper motor, gearbox stepper motor, stepper motor with brake, drivers for all the motors, and closed loop stepper motors and drivers. We also have accessories such as power supplys, spindles and inverters, breakout board, TB6560 driver board, timing pulleys and so on.

PHOTOS FOR OUR PRODUCTS:

Application:
Our products can be applied to printing equipment, engraving machine textile machine, computer external application equipment, medical instruments, stage light equipment, robot, CNC machine tool and other automatic controlling system.
