86X86mm Silver Contactor Socket for Leakage Protecting with 10/16A

Name: 86X86mm Silver Contactor Socket for Leakage Protecting with 10/16A
Brand: all-electronics-online.com
SKU: 833833825
Availability: InStock
Rating: 4.6 (73 reviews)

Price:	US $ 5-6/Piece
Min Order:	10/Piece
Pay Type:	T/T,D/P,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	Dk-16A
Color:	White and Silver
Condition:	Brand New
Usage:	Leakage Protection
Grounding:	Standard Grounding
Type:	With Switch
Application:	Residential/General-Purpose
IP Rating:	IP65
Brand:	Sogomar and OEM

Product Description

Quick Details

Rated Current (Im:A)	10
Rated Voltage (Un:V)	230
Frenquency (Hz)	50
Action time (s)	0.1
Function	leakage protection

APPLICATION--Leakage Protection Switch/ Circuit Breaker

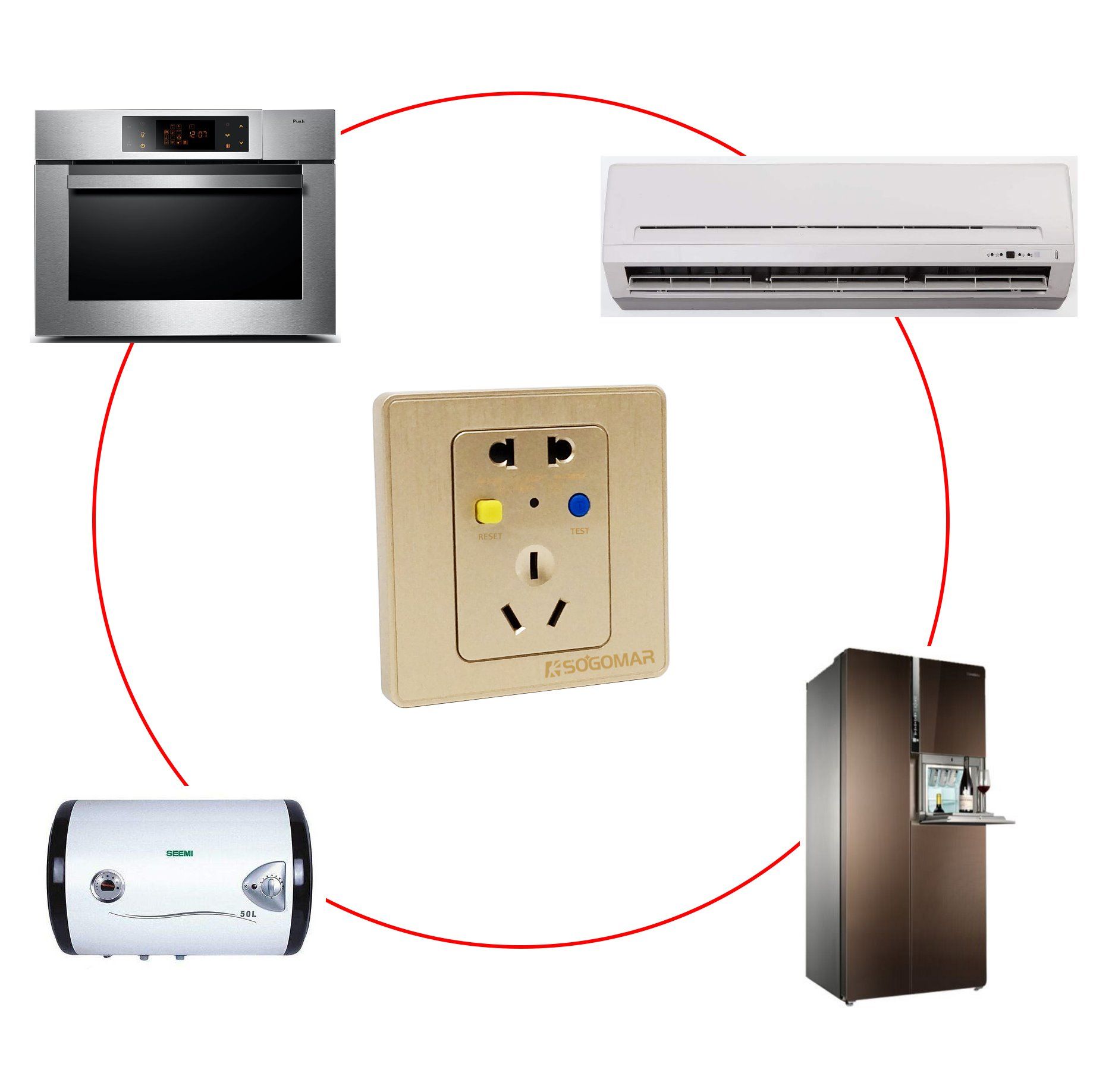

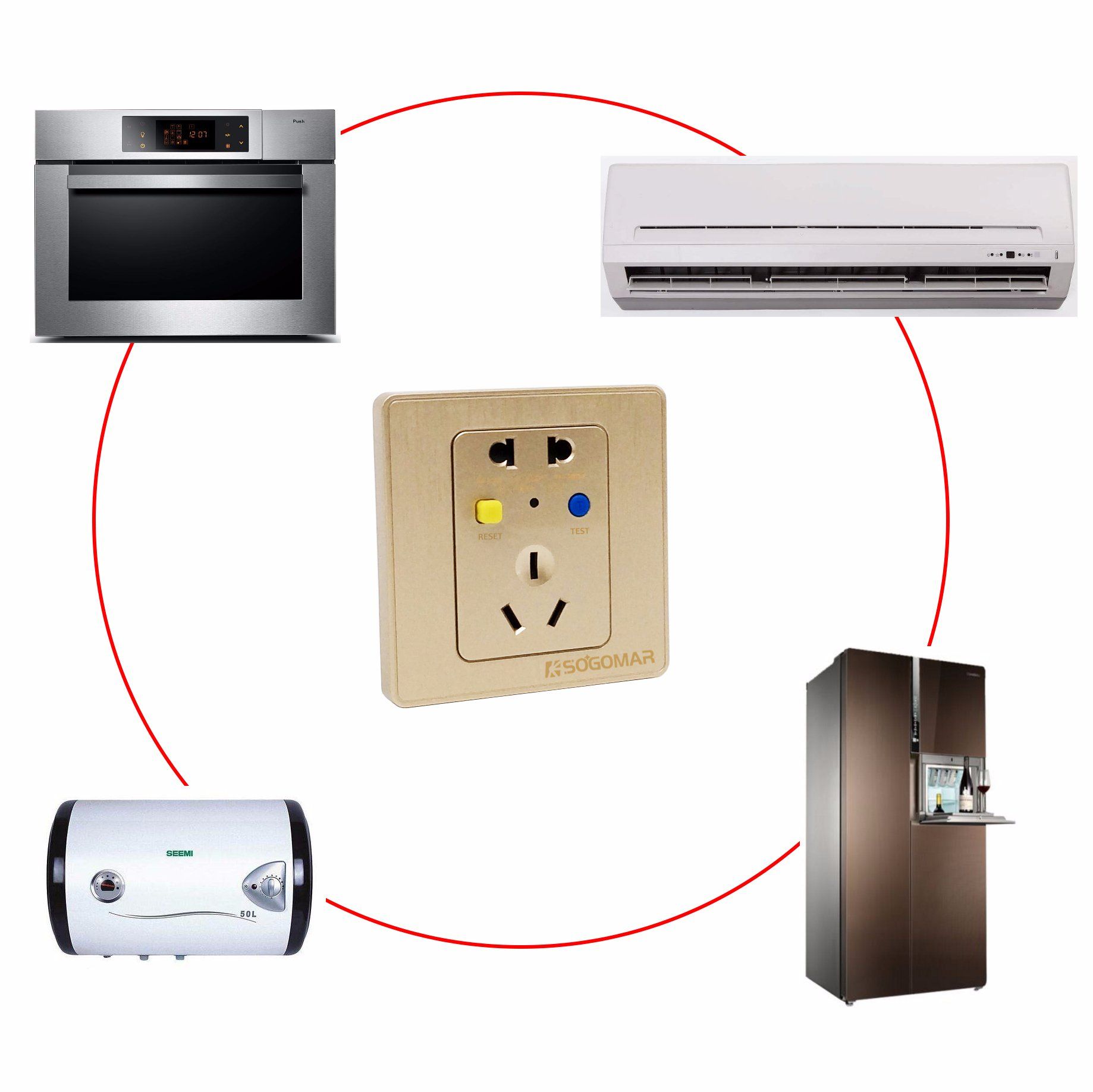

This product is suitable for air conditioner, water heaters, refrigerators, washing machines, electric pumps, electric lawn mower and other electrical leakage protection.

Pole	Refrigerating Capacity	Rated Current	Reference Power	Air Conditioning Type	Recommended Type
1P	2324W	16A	3520W	Hanging type	16A Big Plug
1.5P	3200-3600W	16A	3520W	Hanging type	16A Big Plug
2P	4500-5500W	32A	7040W	Cabinet type	32A Switch
3P	6000-7500W	32A	7040W	Cabinet type	32A Switch
5P	12000W	40A	8800W	Cabinet type	40A Switch

The product is used for installation in the single-phase 230 v / 50 hz power lines, over current, over voltage and short circuit protection function, which completely replace the ordinary 16A air conditioner socket. It is suitable for air conditioning, electric water heater, solar water heater, vending machine, water dispenser, refrigerator, washing machine and other electric equipment. It is especially suitable for the installation of the power plug of the air conditioner. It has the function of electricity leakage, electric shock protection and disconnecting the power in time. At the same time, it can prevent the electrical fire danger caused by the aging of the equipment insulation and the ground fault caused by the damage.

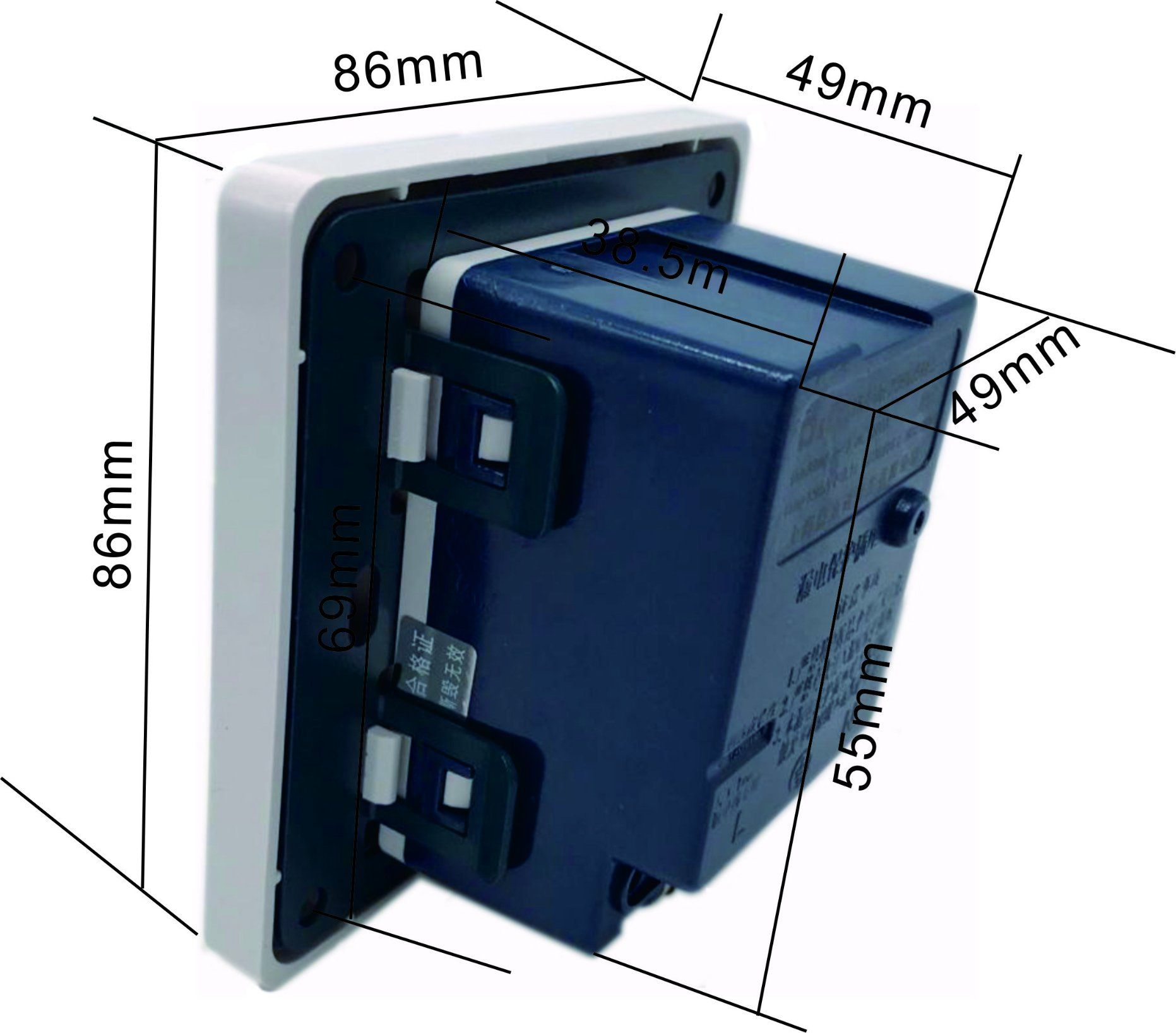

Dimension

FAQ
Q 1. What's the payment term?
A. 30% TT before production, 70% balance before delivery.

Q 2. How long is production time ?
A. Normally 15-30 days.

Q 3.Could you send me some samples ?
A. No problem and the samples are free ,you can only pay the delivery fee.

Q 4. Could you accept small order?
A. Yes, we accept small order, but if you order more than 100 cartons, the price will be cheaper.

Wenzhou Sogomar Electric Co., Ltd. is a manufacturer and exporter, specialized in the research, development and production of components fordistribution cabinet, mainly engaged in AC axial fans with

Plastic and metal blades, DC fans, external rotor fans, centrifugal fans, pipe fans, fan filters, push button, panel meter and so on.

Our factory was founded in 2001, located in the "China Electric Capital". All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world. Currently, our products already be exported to America, France, Germany, Italy, Mexico and 25 other countries and regions. We are doing everything to offer our customers with best products and best service, We promise that we'll be responsible all the way to the end once our services begin.

If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.
