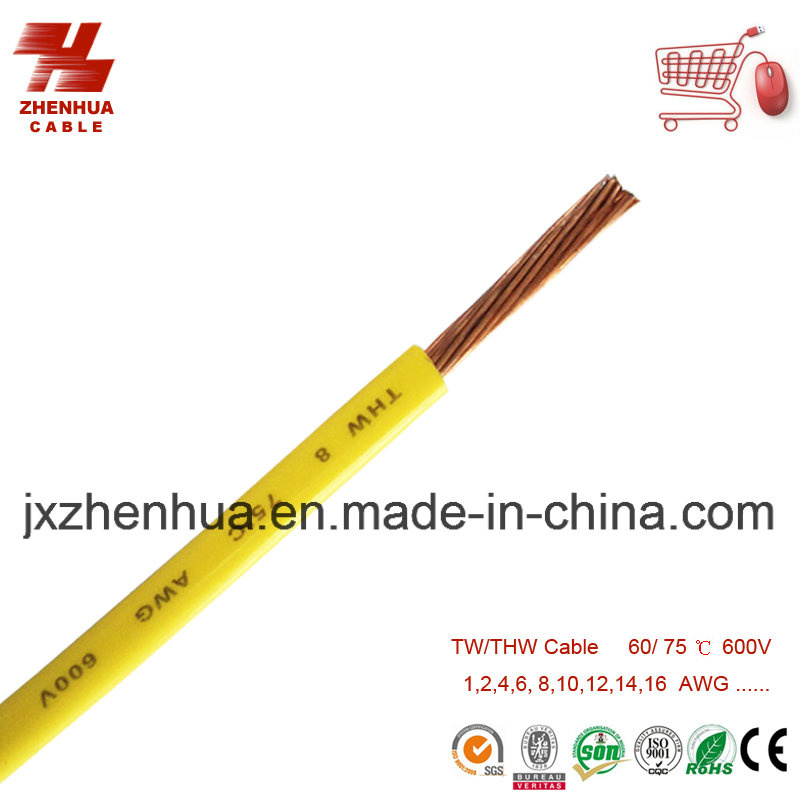

8AWG Tw Thw Cable 600V

Name: 8AWG Tw Thw Cable 600V
Brand: all-electronics-online.com
SKU: 693741282
Availability: InStock
Rating: 5 (59 reviews)

Price:	US $ 0.1/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	10000/Meter
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	thw cable
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Insulated
Application:	Underground
Certification:	SGS,Son
Conductor Material:	Copper
Conductor Type:	Stranded
Insulation Material:	PVC
Brand:	Zhenhua

Product Description

Product Description:

1, Manufacturer&Factory
2, Standard: UL83
3, Factory Price with Good Quality
4, Specializing in the export of American market

THW /TW Cable
Operating Voltage 600 V.
Standards: UL83
Building wires types THW/TW according to America standards UL 83&UL 1581

Construction:

Conductor: Solid or strand annealed copper or CCA wire
Insulation: Polyvinyl Chloride (PVC 75° C ), flame retardant, Suitable for use in wet or dry locations
Color: Red, yellow, blue, black, brown, green, green/yellow, white &grey

Applications:

General purpose building wiring for lighting and power - residential, commercial, industrial buildings in accordance with the National Electrical Code, maximum conductor temperature of 75° C in wet or dry locations, for circuits not exceeding 600 volts.

Contact Info.:
JIAXING ZHENHUA WIRE&CABLE CO., LTD
Add:Zhangqiao Village ,Shiquan Town,Haiyan County,ZhejiangProvince,P.R.China
Attn: Thomas Cell:0086-13656625820
Web:www.zhenhuacable.com.cn

Detail specifications:

Item Spec.	AWG SIZE	No./Diameter of conductor	Insulation thickness	Max.outer diameter (mm)	Ref .Weight(km/kg)
Item Spec.	AWG SIZE	(mm)	(mm)	Max.outer diameter (mm)	Ref .Weight(km/kg)
THW-16B	16	7/0.49	0.76	2.8	19
THW-14B	14	7/0.62	0.76	3.4	29
THW-12B	12	7/0.78	0.76	3.9	42
THW-10B	10	7/0.98	0.76	4.5	62
THW-8B	8	7/1.23	1.14	6	103
THW-6B	6	7/1.56	1.52	7.8	169
THW-4B	4	7/1.96	1.52	9	249
THW-3B	3	7/2.20	1.52	9.7	306
THW-2B	2	7/2.47	1.52	10.5	376
THW-1B	1	19/1.68	2.03	12.5	487
THW-1/0B	1/0	19/1.89	2.03	13.6	600
THW-2/0B	2/0	19/2.12	2.03	14.7	739
THW-3/0B	3/0	19/2.38	2.03	16	912
THW-4/0B	4/0	19/2.67	2.03	17.5	1130
THW-16A	16	1/1.29	0.76	2.9	19
THW-14A	14	1/1.63	0.76	3.2	27
THW-12A	12	1/2.05	0.76	3.6	39
THW-10A	10	1/2.59	0.76	4.1	59
THW-8A	8	1/3.26	1.14	5.6	98

Jiaxing Zhenhua Wire & Cable Co., Ltd. Was established in 1999, who is a professional cable manufacturer and specializing in various wire & cable. Covering Electrical building wire (Single, Twin, Multi-core), Power Cable(Armoured Cable), Welding Cable(AUTO&Battery Cable), Speaker cable, Audio &Vedeo cable, Telephone Cable, Coaxial Cable(RG59/6), LAN Cable(Cat5e/6),

Alarm Cable, PV Solar cable etc.

We have strict quality control system and pass the ISO9001: 2008 QUALITY MANAGEMENT SYSTEM CERTIFICATE as well as we have CE and SONCAP Certificate

Our cable factory is located in Haiyan county, Zhejiang Province which is very close to Shanghai and Ningbo Port with convenient transportation access, So we can deliver the goods by all kinds of transportation for saving the customer`s cost on inland freight.

Welcome to visit our cable factory and we are expecting to cooperate with all kinds of cable importers, wholesaler &retail trader from all over the world as well as double-win with our partners and build long-time business relationship. Since the establishment, we have implemented the business philosophy"QUALITY FIRST, CUSTOMER FIRST, HONEST FIRST. "That is our presistent persuit to offer you excellent service and quality guarantee.

It`s your best choice to use ZHENHUA CABLE!
