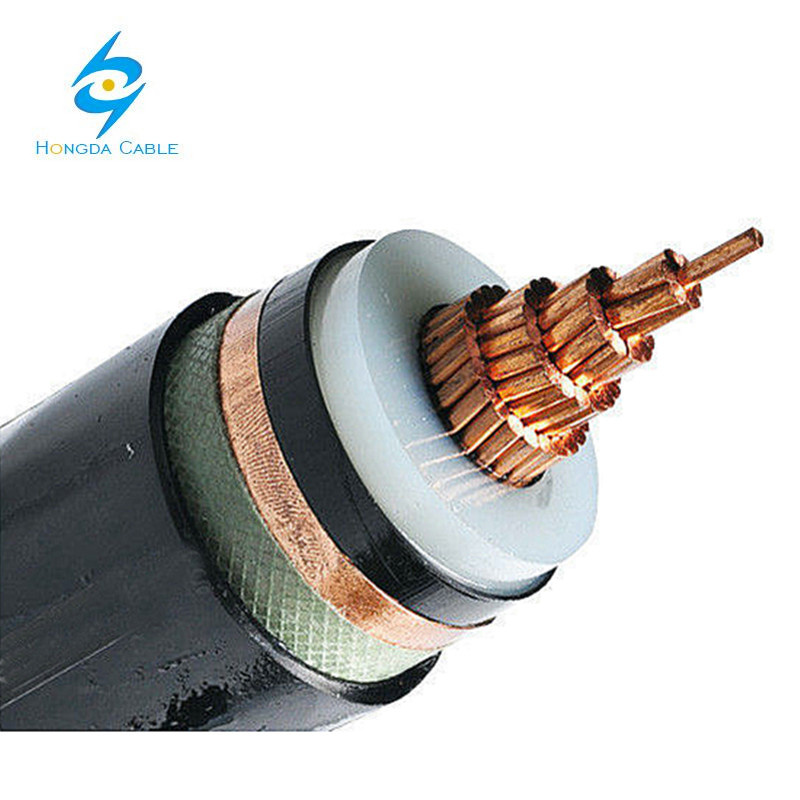

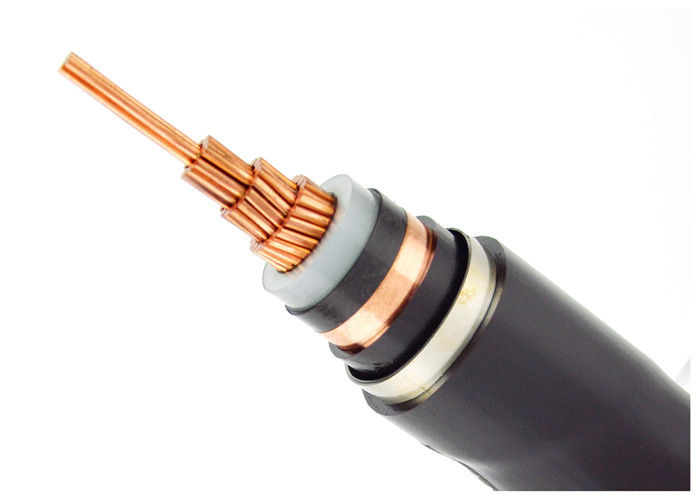

8kv Single Core 30mm2 Copper Shielded XLPE Power Cable
| Price: |
US $ 10-29.9/Meter |
| Min Order: |
500/Meter |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
8kv cable |
| Application: |
Underground |
| Voltage: |
Low and Medium Voltage Cable |
| Current: |
AC Cable |
| Insulation Material: |
XLPE |
| Certification: |
CCC |
| Model: |
Yjv22 |
| Brand: |
OEM |
Product Description
Stranded compacted circular copper or aluminium conductors. All internal interstices of trie conductor rilled with water
blocking compound which is specified to prevent ingress of water through conductor during storage, handling, installation
and operating of the cable.
Conductor Screen
Extruded Semi-conducting compound. Minimum thickness 0.5 mm and the maximum volume resistivity of 5000 ohm-an
at 20° C and 25000 ohm-cm at 90° C.
Insulation
Extruded XLPE with high degree of cross-linking, free from contaminants, air voids and heat resistant by dry cured process.
Application:
For installation in ground, in water, outdoors, indoors and in cable ducts for power stations, industry, and
distribution networks. The good installation properties of this cable make installation easy, even on difficult routes. Acc.
| Number of cores and cross-section | Shape of conductor | Conductor diameter | Nominal insulation thickness | Diameter over insulation | Nominal thickness sheath | Outer diameter (approx.) | Weight (approx.) |
| | | (approx.) | | (approx.) | | | |
| mm2 | | mm | mm | mm | mm | mm | kg/km |
| 1x35/16 | RM | 7.2 | 3.4 | 15.3 | 2.5 | 24 | 904 |
| 1x50/16 | RM | 8.2 | 3.4 | 16.3 | 2.5 | 26 | 1039 |
| 1x70/16 | RM | 9.8 | 3.4 | 17.9 | 2.5 | 27 | 1271 |
| 1x95/16 | RM | 11.3 | 3.4 | 19.4 | 2.5 | 29 | 1530 |
| 1x120/16 | RM | 12.8 | 3.4 | 20.9 | 2.5 | 30 | 1809 |
| 1x150/25 | RM | 14.2 | 3.4 | 22.3 | 2.5 | 32 | 2158 |
| 1x185/25 | RM | 15.8 | 3.4 | 23.9 | 2.5 | 33 | 2524 |
| 1x240/25 | RM | 18.3 | 3.4 | 26.4 | 2.5 | 36 | 3117 |
| 1x300/25 | RM | 20.7 | 3.4 | 28.8 | 2.5 | 38 | 3786 |
| 1x400/35 | RM | 23.3 | 3.4 | 31.4 | 2.5 | 41 | 4750 |
| 1x500/35 | RM | 26.5 | 3.4 | 34.6 | 2.5 | 44 | 5786
|
Cable Voltage Test and Partial Discharge Test
Rate
Voltage Uo(kv) | Item | 0.6/1 | 1.8/3 | 3.6/6 | 6.6/6
6.6/10 | 8.7/10
8.7/15 | 12/20 | 18/20
18/30 | 21/35 | 26/35 |
| Voltage | Test Voltage | 3.5 | 6.5 | 12.5 | 21 | 30.5 | 42 | 63 | 73.5 | 91 |
| Test Time | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 |
| Partial Discharge Test | Test Voltage | _ | _ | 6.2 | 10.4 | 15.1 | 20.8 | 31.1 | 36.3 | 45 |
| Discharge Capacity | _ | _ | 10 | 10 | 10 | 10 | 10 | 10 | 10 |

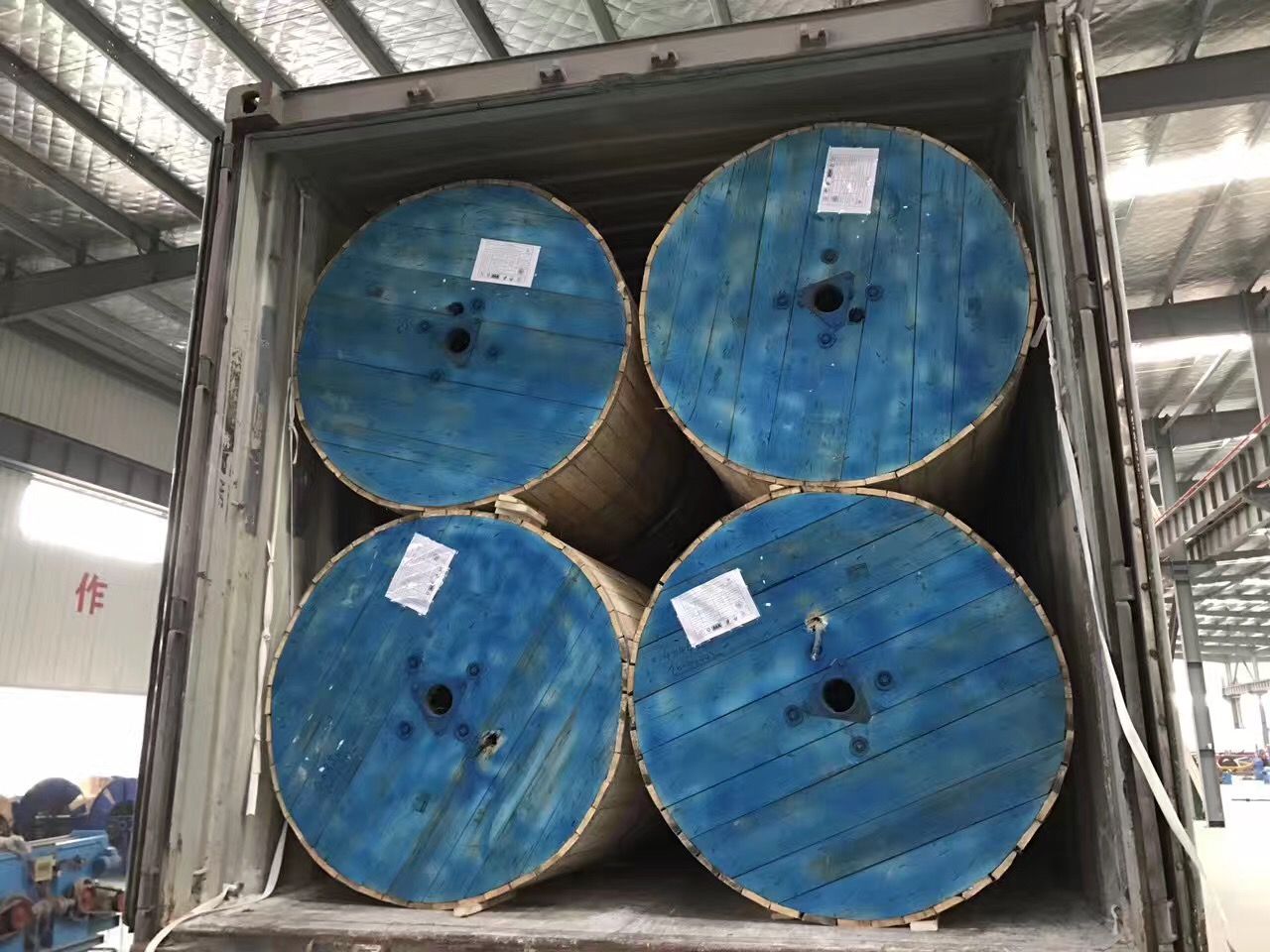

Packing shipping
Why Choose Us ?1. We have a large production base, and advanced production equipment 2. Have an competitive price and high quality3. Excellent after-sale service4. Free issue:packaging list,invoice5. Powerful technology team6. Strict quality assurance system and perfect testing means7. Advanced process equipment8. Delivery on time9. Our cable sales to Middle East,Africa,Russia,Southeast Asia, etc.10.We have a good reputation in the overseas
FAQQ: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock,
it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: 30% T/T in advance,70% T/T balance before shipmentIf you have another question, pls feel free to contact us below
Henan Hongda Cable Co., Ltd. Located in No. 3, Changping Road, ZhanDian District, Jiaozuo, Wuzhi. Our factroy established in March of 2004. Our owns registered capital of RMB Fifty-one million six hundred and eighty thousand. Our company covers an area of 100, 000 square meters, including 50, 000 square meters of building area, and has more than 120 staff members and professional workers accounting for one third. Our fixed assets of 90, 000, 000. We can provide more than 100 varieties, tens of thousands of specifications of wire and cable, with 10000 km annual production capacity.
Henan Hongda Cable Co. Ltd. Is the original Zhengzhou Hongda Cable Co. Ltd. Established enterprise expansion. The company is committed to system R&D, design, manufacturing, marketing and service of cable products, We mainly aim at managing cross-linking XLPE insulated power cables, PVC insulated power cables, plastic insulated control cables, insulated overhead cables, and stranded aluminum and ACSR. At present, the cables' biggest cross area is 800 square meters with a maximum electric power of 35KV. The company has more than 70 (sets) domestic and oversea-leading production and testing equipment.
Our company's products have passed the ISO9001 Quality Management System Certification, the products also passed China Compulsory Certification (3C certification).
Our company insists on the principle of "Taking high and new technology as guide and being based on modern management". Our products sell well all over the world and the main reason is that we attach great importance to business honesty. We sincerely hope to be your partner.
