0.8kw 2900rmp Hydraulic Micro DC Motor

Name: 0.8kw 2900rmp Hydraulic Micro DC Motor
Brand: all-electronics-online.com
SKU: 829214385
Availability: InStock
Rating: 4.5 (143 reviews)

Price:	US $ 85-95/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	ZD4817
Volt:	48V
Power:	0.8kw
Current:	30A
Speed:	2900rmp
Rotation:	Cw
Application:	Power Tools
Operating Speed:	Low Speed
Excitation Mode:	Compound
Structure And Working Principle:	Brush
Type:	Zd4817
Brand:	Sanghao

Product Description

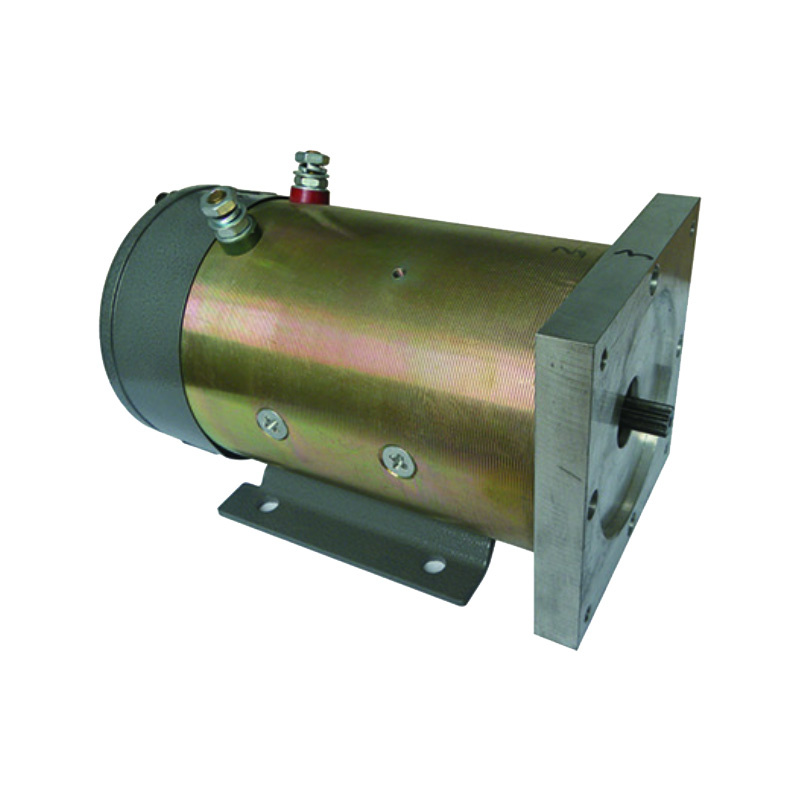

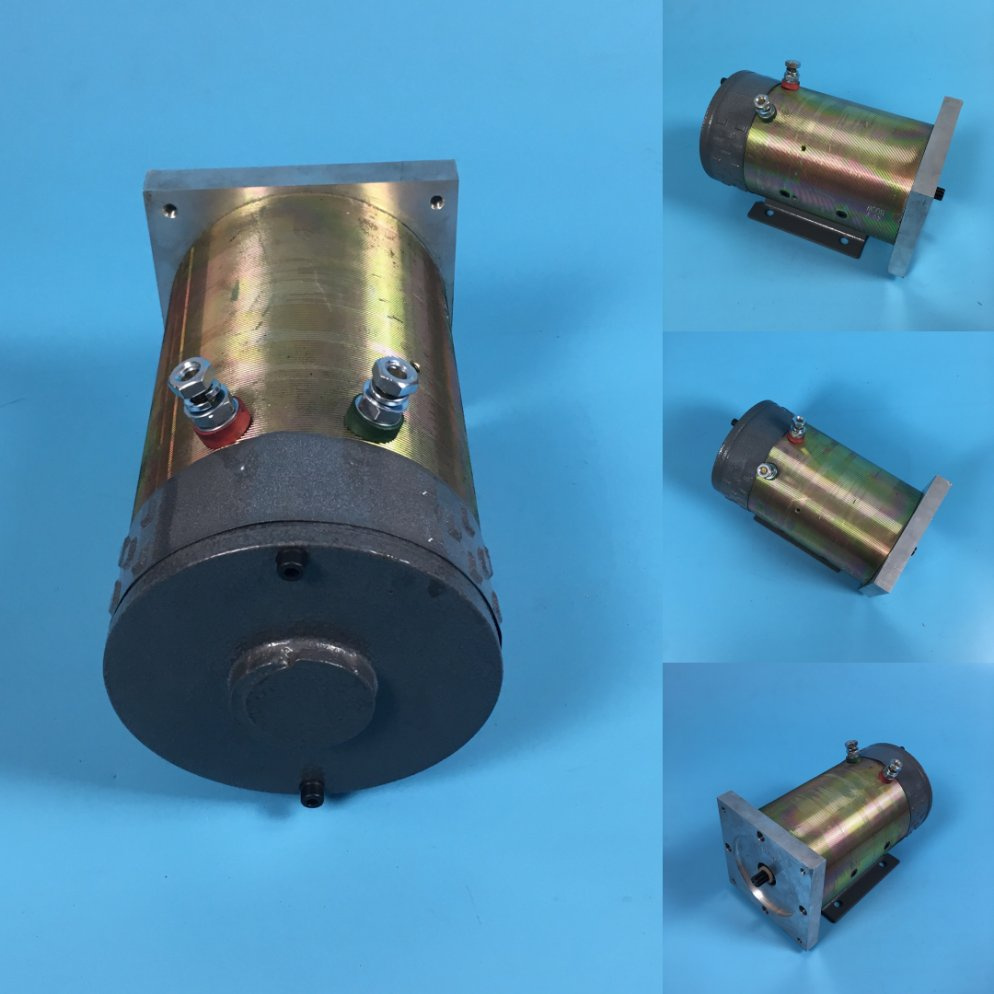

0.8kw 2900rmp Hydraulic Micro DC Motor

1. Product description

Type	ZD4817
Volt	48V
Power	0.8kw
Current	30A
Speed	2900rmp
Protect Feature	IP44
Rotation	CW
Weight	12.7kg

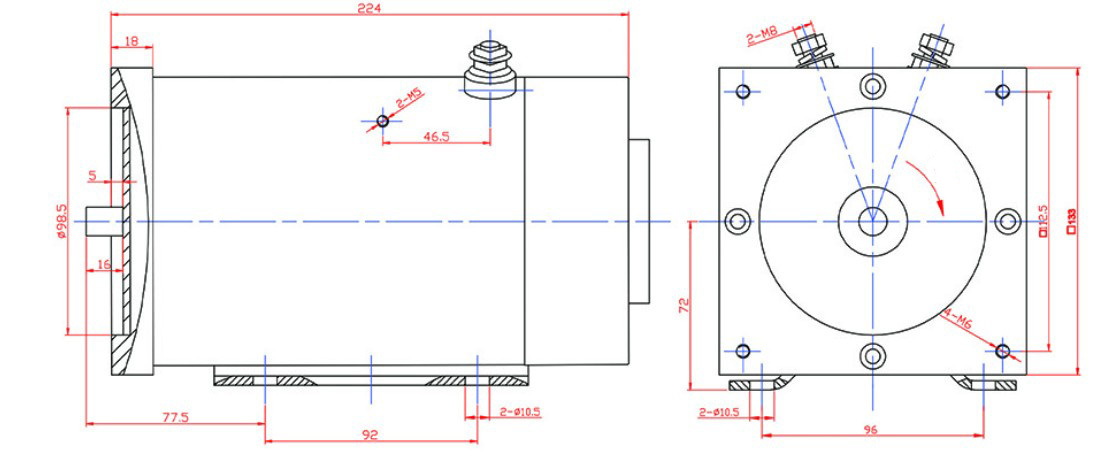

2. Outline Dimension

3. Package
Commonly our package is carton box and if the qty is more, we will choose the wooden pallet to protect the products. We can also customized the package according the requirement of our client.

4. Application
Our factory has more than 40 various motors and volt ranges from 12V to 72V. They widely use in hydraulic power units, cars and industrial such as forklifter, lifting platform, van wing door machine and etc.

5. Our services
a. patient salesmen to help you know more about our company and product
b. good engineer will help you solve the after-sales problem
c. we provide one-stop service and you just need to give the order

6. AFQ
A. Are you a manufacture or trading company?
We are a manufacture which has our own company and located in Changzhou, Jiangsu.
B. Do you provide the sample?
Absolutely yes! We are glad to provide the sample.
C. Do you accept customized?
Yes, we have engineers can help you do the customized motor and had better have the sample.
D. How long you can get the products?
If our exist products, we will arrange package and send them out immediately.
If need to do it, it should depend on your qty, around 20days will send them out.

Changzhou Sanghao Vehicle Fitting Co., Ltd is established in 1992 and located in beautiful coast of Taihu Lake, which is a professional factory who mainly produce steel wheel hub and DC motor. The size of wheel hubs ranges from 4 inches to 12 inches, totally around 60 varieties. Different surface treatment of them can also be provided such as electrostatic spraying, hot galvanizing and etc. We have over 40 different kinds of DC motor whose power ranges from 0.3kw-4kw and all of them are used for hydraulic power unit for auto such as car tail plate, electric forklift, the lift platform of sanitation truck and etc. Our company makes 'doing every product perfectly and nicely and serving every client briskly and thoughtfully' as our purpose. Nowadays, we are constantly developing new products and absorbing new brains in order to make and improve first-class team and quality. At the same time, we have passed ISO9001-2000 to supervise our quality. We sincerely welcome customers at home and abroad to cooperate with us.
