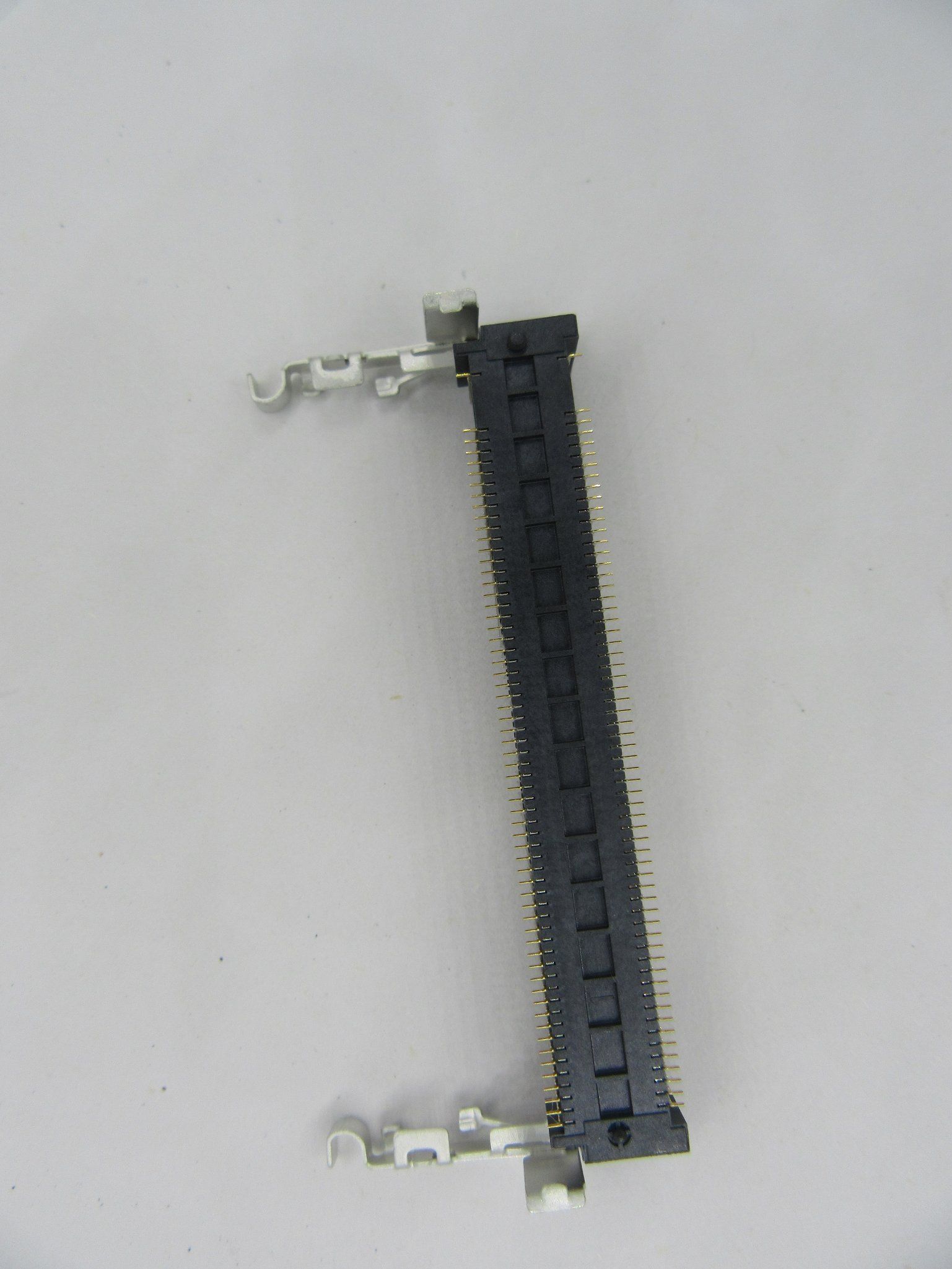

0.8mm Mini PCI Connecotr Assembly

Name: 0.8mm Mini PCI Connecotr Assembly
Brand: all-electronics-online.com
SKU: 732644082
Availability: InStock
Rating: 4.6 (120 reviews)

Price:	US $ 0.72/Piece
Min Order:	1000/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

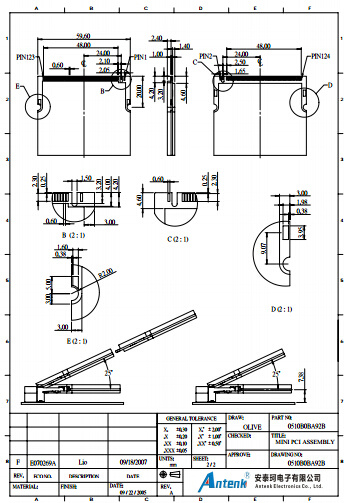

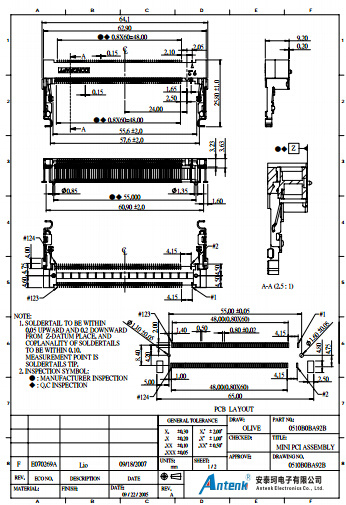

Prod Model:	0510B0BA92B
Manufacturing Technology:	Integrated Circuits Device
Package:	SMD
Material:	Brass
Type:	Application: Electronic Products
Brand:	Antenk

Product Description

Mini PCI Connector, mini PCI Socket express connector
1. All kinds of Connector are RoHS, REACH, CE & FCC Compliance.
2.100% tested before shipment
3. Assembled according to customers' specifications
4. High quality and good workmanship
5. Various types for choice

1. Specifications:
1). Voltage Rating: 50V AC per contact
2). Current Rating: 0.5AMP per contact
3). Dielectric Withstanding Voltage: 300V AC/1MIN
4). Insulation Resistance: 500 MΩ Min
5). Contact Resistance: 55 mΩ Max(initial)
6). Insertion force: 2.3kgf max
7). Withdrawal force: 2.3kgf max
8). Durability: Insert and withdraw 50 cycles
9). Operating Temp: -20° C~+85° C

Shenzhen Antenk Electronics Co., Ltd., was established in 2004 year, we mainly produce high quality of PCB Jack, wire to board connectors, board to board connectors, I/O connectors, terminal block, and cable assembly such as Wire assembly, RF cables, computer peripheral cable from our production line too.

We are manufacture with workers around 200 staff in south of China, mostly of products 65% export for overseas market.In the same time, all of our new products are and will always be designed for a various of application and to meet UL and CSA regulations, also EU directive RoHS compliant.We are carry with ERP system for operation and shipping.
All staff of Antenk electronics Co., Ltd sincerely welcomes all visitings and instructions from our friends, and we are willing to establish the long-term and intimate co-operation relationships with all of our friends and customers.

Antenk Philosophy
Perfect service;
Reasonable price;
Innovation continual;
Environment friendly.
