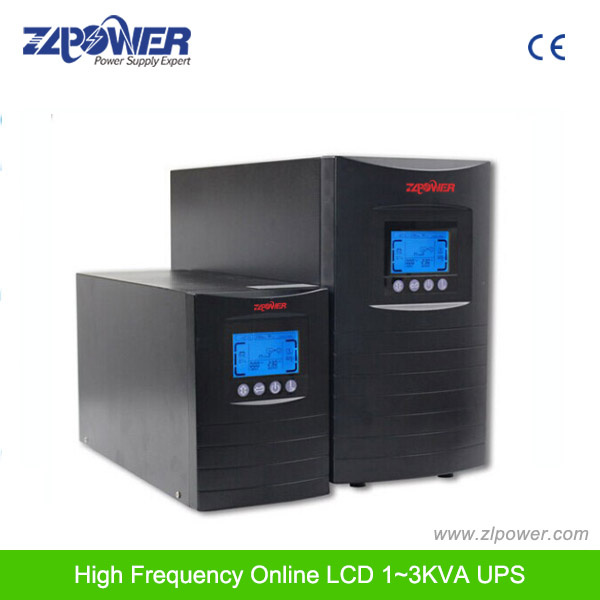

0.8power Factor LCD Display High Frequency Online UPS (EX1K~EX3KL)
| Price: |
US $ 102/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
50/Piece |
| Pay Type: |
T/T,Western Union,Money Gram |
| Prod Model: |
EX1K~EX3KL |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| UPS Type: |
True Online UPS |
| Wave: |
Pure Sine Wave |
| Technology: |
CPU Control, Double Conversion, IGBT |
| Frequency: |
50Hz/60Hz |
| Power Factor: |
0.7-0.8 |
| Battery Efficiency: |
83% |
| Line Efficiency: |
85% |
| Input Phase: |
Single Phase with Groud |
| Communications: |
RS232,Snmp/USB(Optional) |
| Transfer Time: |
0ms |
| Phase: |
Single Phase |
| Type: |
On-line |
| Protection: |
Overload, Short Circuit, Overcurrent, Unbalanced |
| Application: |
Solar Power System |
| Brand: |
Zlpower |
Product Description
UPS-uninterrupted power supply, Digital display, IGBT online UPS, EX1K-EX3K, SAI, double conversion online UPS (EX series)
UPS input/output voltage:
IP/OP: 220/230/240VAC 50/60Hz Or IP/OP: 110/115/120VAC 50/60Hz
UPS APPLICATION:
Servers, Data-Center, Critical network devices, Sensitive Electronic equipment, Telecom.
UPS KEY FEATURES:
High frequency tower UPS 1kVA-3kVA, with cold start and self test function when UPS start, larger LCD display for UPS status;
True on-line double conversion technology with advanced microprocessor control the UPS;
Wide input voltage range;
Zero transfer time for UPS;
Protection against all type of power problems;
Self test while start of the UPS;
Site wiring fault warning;
On-battery power-on function.
| UPS Model | EX1K | EX1KL | EX2K | EX2KL | EX3K | EX3KL |
| Capacity | 1000VA/800W | 2000VA/1600W | 3000VA/2400W |
| Input | Voltage | (115~300) VAC |
| Frequency | 46~54Hz/56~64Hz (Adjustable via LCD panel) |
| Output | Voltage | 220/230/240 (1±1%) VAC (Adjustable via LCD panel) |
| Frequency | 50/60Hz (Adjustable via LCD panel) 50Hz AC Mode: Follow AC Mode(AC Range 46~54Hz); Battery Mode:50Hz (1±0.2%) 60Hz AC Mode:Follow AC Mode(AC Range56~64Hz); Battery Mode: 60Hz(1±0.2%) |
| Output Wave Form | Sine Wave |
| Back-up Time | Full Load | ≥5′ | Depends on the capacity of the external battery bank | ≥9′ | Depends on the capacity of the external battery bank | ≥5′ | Depends on the capacity of the external battery bank |
| Half Load | ≥14′ | ≥21′ | ≥15′ |
| Battery Nominal DC Voltage | 36VDC | 96VDC |
| Transfer Time | 0ms |
| Overload Capacity | 110%~150% maintain 30s then turn to bypass output, over 150% maintain 300ms |
| Communications | RS-232+Intelligent Slot |
| Environment | Temperature | 0C~40C |
| Humidity | 15%~90% |
| Dimensions (W*D*H)mm | 145*400*220 | 192*460*340 |
| Net Weight (Kg) | 14 | 7 | 34 | 13.5 | 34.5 | 14 |
About ZLPOWER
Founded in 2007, Shenzhen ZLPOWER Electronics Co., Ltd. (ZLPOWER for short) is a key hi-tech enterprise in state "Torch Plan, " integrating science, industry, trade, and investment into a whole. It has registered capital of RMB 10million, covering a floor area of 2000sq. M, and owning assets of RMB 30 million.
As a large-scale enterprise group with total assets exceeding RMB 30 million, it currently employs more than 300 staff, operates R & D institutions, 10 products lines, and 8 overseas branches and offices for sales and service.
Also as a professional uninterruptible power supply manufacturer in Shenzhen, China, ZLPOWER mainly produce high frequency online UPS, computer PC UPS, rack mount online UPS, low frequency Industry three phase UPS, UPS Inverter, solar inverter, solar charger controller, Solar/UPS Battery and other related products.
In ZLPOWER, we are strictly on quality inspections. We implement strict IOC, IPQC, FQC, OQC, QA, and other quality control measures in every process according to ISO9001, including to raw materials selection, production, package, and shipment.
Thus, we are ISO9001: 2008 and SGS certificated, and all our UPS, Inverter power supply products have been approved by CE (LVD/EMC), UL tests. As a result, they are popular among our customers from Italy, Germany, South Africa, Egypt, Mozambique, Nigeria, UAE, Ukraine, Russia, Uzbekistan, Philippines, Chili, Peru, Brazil, Mexico and more.
ZLPOWER is looking for agent worldwide to distribute our quality UPS system, Inverter power and solar products to their local markets. Any interests please welcome to contact us today and look for best power solution.
