8s Hot Sell Battery Protection Circuit Module

Name: 8s Hot Sell Battery Protection Circuit Module
Brand: all-electronics-online.com
SKU: 722619165
Availability: InStock
Rating: 4.7 (88 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,EXW
Min Order:	50/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PCM-L08S12-306(8S)
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Voltage:	4.2V/Cell
Current:	12A
Over Charge Detection Voltage:	3.8~4.4V(Can Adjust)
Over Charge Detection Delay Time:	0.5~2.5s
Over Charge Release Voltage:	3.8~4.4V(Can Adjust)
Over Discharge Detection Voltage:	1.9~3.1V(Can Adjust)
Over Discharge Detection Delay Time:	50~300ms
Over Discharge Release Voltage:	1.9~3.1V(Can Adjust)
Over Current Detection Voltage:	0.6V
Over Current Detection Current:	30~100A
Customized:	Non-Customized
Condition:	New
Metal Coating:	No
Mode Of Production:	DIP-SMT

Product Description

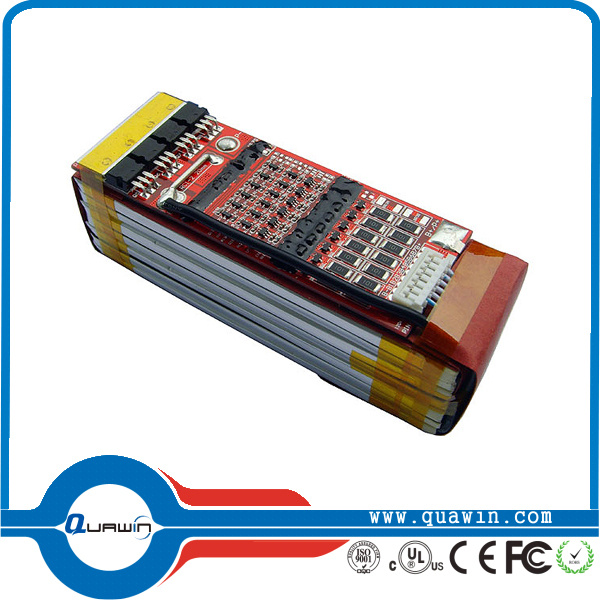

Protection Circuit Module For 8S Li-ion/Li-polymer/LiFePO4 Battery Pack

Maximal continuous charging and discharging current is 12A

No.	Test item		Criterion
1	Voltage:	Charging voltage:	CC/CV: Li-ion/Li-polymer(4.2V/cell); LiFePO4(3.6V/cell)
1	Voltage:	Balance voltage for single cell	Li-ion:4.20 V±0.025V LiFePO4:3.60V±0.025V
2	Current	Balance current for single cell	0-85mA
		Balance current for single cell	≤20μA
		Maximal continuous charging and discharging current	12A
3	Over-charge Protection	Over charge detection voltage	3.8-4.4V(can adjust)
		Over charge detection delay time	0.5-2.5S
		Over charge release voltage	3.8-4.4V(can adjust)
4	Over-discharge Protection	Over discharge detection voltage	1.9-3.1V(can adjust)
		Over discharge detection delay time	50~300mS
		Over discharge release voltage	1.9-3.1V(can adjust)
5	Over-Current Protection	Over current detection voltage	0.6V
		Over current detection current	30-100A
		Detection delay time	1~50ms
		Release condition	Cut load
6	Short Protection	Detection condition	Exterior short circuit
		Detection delay time	200-500us
		Release condition	Cut load
7	Resistance	Protection circuitry B- to P-	≤20mΩ
8	Temperature	Operating temperature range	-40-+85
8	Temperature	Storage temperature range	-40-+125
9	Size		L120W43T10mm

Quality is our priority, win by quality" which is the origin of the our company name --Quawin.

We always highly focus on Quality Assurance and completed After-Sales Service which based on competitive price. Our QA/QC Department performs strict quality control measures on all incoming main boards, spare parts and throughout our entire production process to ensure the high quality of each products. Pursuing the goal of 'No Defect on Quality, No Claim from Customers, ' we will continue to follow international standards to provide customers with satisfactory products.

As an eight years experience manufacture, we have built a powerful R&D team which has abundant knowledge and operational experience that can develop new products and improve existing models in order to meet growing market demands. This high efficient and energetic team is good at overcoming all kinds of obstacles.

We strive for 100% customer's satisfaction through continuous improvement and now our high quality products and thoughtful services have got good reputation from customers in the North America, South America, Europe, Asia and other countries and regions.

We currently rolls out thousands of products such as E-bike battery, golf car battery, UPS battery, BMS, solar battery, backup power battery and all kinds of matched chargers etc.

To keep ahead of the competition, you need a supplier who can keep up with your demands. Please contact us and let our excellent sales team to provide perfect service to you at once.
