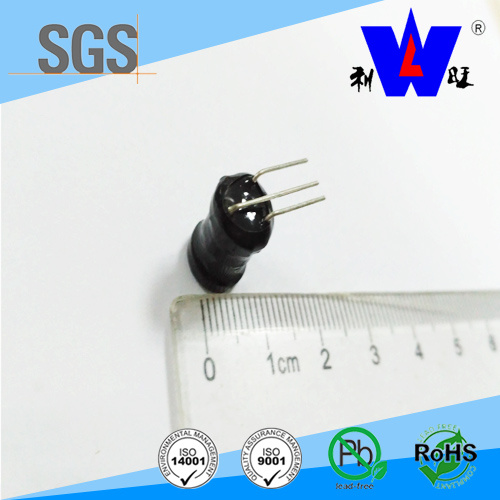

9*12mm Step-up Transformer, 3 Pins Inductor for Buzzer

Prod Model:	BX0912-100mH
Product:	Latest Radial Choke Inductor, Power Inductor
Inductance:	0.33uh-1000mh
Advantage:	Factory Direct Price and Delivery Quickly
Environmental Certification:	ISO14001
Quality Certification:	ISO9001
Type:	Fixed Inductor
Structure:	Core
Brand:	Liwang

Product Description

9*12mm step-up transformer ,3 pins inductor for Buzzer
Features and application:
1. Various high power inductors are superior to be high Saturation for surface mounting.
2. Low DC resistance, high rated current and high inductance.
3. Excellent solderability and high heat resistance.
4. Magnetically shielded structure prevents interference Occurring between peripheral components.
Power supply for VCR, OA Equipment Digital camera, switching power sources, NC machine, computer systems and measuring instruments, LCD television set notebook PC, portable communication Equipment, DC/DC converters, etc.
5. Compact size high performance performance and low cost large impedance at high frequencies excellent high frequency characteristics.
General Characteristics:
1. Operation Temperature Range:
-30 to +100 degree celsius
2. Terminal Strengh:
After soldering of X, Y withstanding at below conditions.
The terminal should not be peeled off. (refer to below figure)
5N 60 sec. (CDH B series. SR series, CDH series, CDH R series)
10N 10 sec. (CN 1206-1281, CD31-75, CDF62-75B, B series, BF series)
15N 10 sec. (CN2520, CD104-106, CDF105B)
3. Heat Endurance of Reflow Soldering:
Refter to below figure
4. Insulating Strength:
Over 100M ohm at 100V D. C. Between coil and core.
5. Dielectric Strength:
No dielectric breadown at 100V D. C. For 1 minute between coil and core.
6. Temperature Characteristics:
Inductance coefficient (0-2, 000)x10-60/oC (-25oC to 80 oC)
7. Humidity Characteristics:
Inductance deviation within +-5%, after 96 hours in 90-95% relative
Humidity at 40+-2oC and 1 hour drying under nurmal condition.
8. Vibration Resistance:
Inductance deviation within +-3% after vibration for 1 hour. In each of three orientations at sweep vibration (10-50-10Hz) with 1.5mmp-p amplitudes.
9. Shock Resistance:
Inductance deviation within +-3% after being dropped once with 98 1m/s2 (100G) shock attitude upon a rubber block method shock testing machine, in three defferent orientations.
