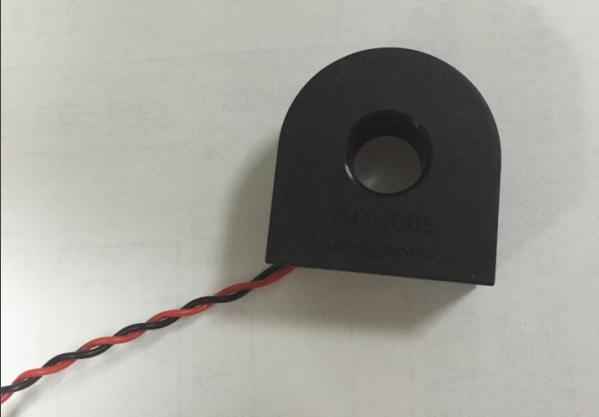

ZMCT354 Flying lead Current Transformer

FEATURES:
1. Very high output voltage&linearity in small size
2. Integral flying leads for ease of installation
3. Manufactured in an ISO9001:2008, ISO14001:2004
4. Fully ROHS&REACH Compliant

Electrical Specifications at 20ºC
ParameterZMCT354
Operating frequency50/60HZ
 primary current50A
Turns ratio2500:1
Rated burden resistance33Ω
Operating temperature-40ºC to +85ºC
Storage temperature-40ºC to +85ºC
Dielectric withstand voltage4000V
Accuracy Class1.0

MECHANICAL DIMENSIONS
Primary current(A)10203040506070

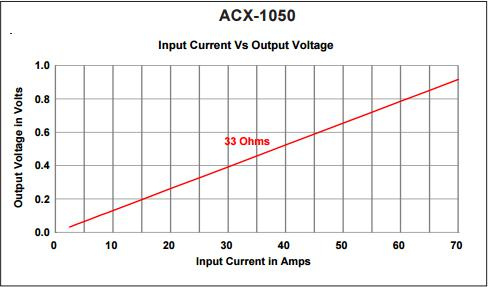

Secondary output voltage for 33 ohm load (mV)0.1320.2640.3960.5280.660.7920.924

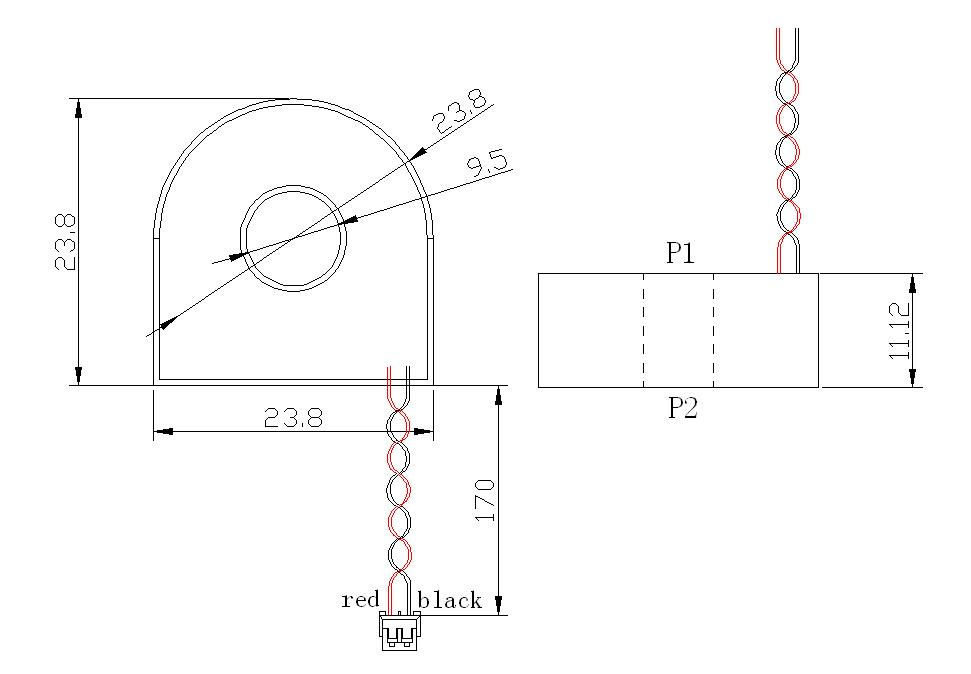

MECHANICAL DIMENSIONS:

         Leads out : Flex UL 1569, AWG26, 300V Rating,105ºC. 170±5mm long out of trafo with 5mm tinned ends
         Dimension unit: mm, Dismensional Tolerace: ±0.25mm(Unless specificed)
         Connector: 1.5pitch

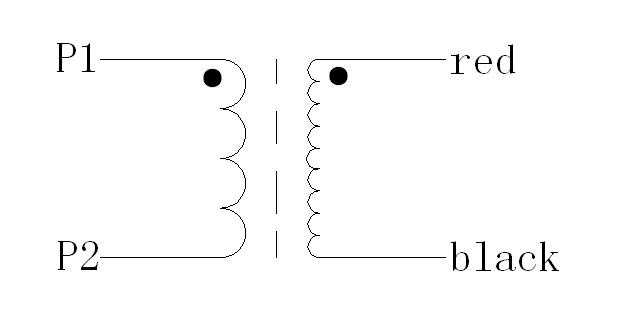

CIRCUIT SCHEMATIC:
