Shenzhen Green Digital Power-Tech Co., Ltd. >> 9.6V-12V 700mA Charger for 8s-10s 700mAh-6400mAh NiMH NiCd Battery Packs with Micro-Processor Controlled, &Nbsp; Constant Current -Delta V

9.6V-12V 700mA Charger for 8s-10s 700mAh-6400mAh NiMH NiCd Battery Packs with Micro-Processor Controlled, &Nbsp; Constant Current -Delta V

9.6V-12V 700mA Charger for 8s-10s 700mAh-6400mAh NiMH NiCd Battery Packs with Micro-Processor Controlled, &Nbsp; Constant Current -Delta V
Price: US $ 3-6/Piece
Min Order: 500/Piece
Pay Type: T/T,Paypal
Prod Model: 3N1020
For Use: Standard Battery
Customized: Yes
Case: PC+ABS Plastic
Color: Black
LED Display: Yes
Delivery Date: 2-3 Weeks
Type: 9.6 -12volt (8~10cells) 2~10ah NiMH/NiCd Battery
Charger Type: NiMH/NiCd Battery Charger
Charger Application: Power Tool, Electrical Toy, Mobile Lamp, Security
Nominal Voltage: 16V
Compatible Battery Type: 9.6~12 Volt (8-10cells) 2~10ah Nimeh/NiCd Battery
Size: 81 X 51 X 28mm
Socket Type: UL,VDE,PSE,UK,SAA...

Product Description

  • 3PN1020 9.6V-12V 700mA Charger for 8S-10S 700mAh-6400mAh NiMh NiCd Battery packs

    • Specification
      Input: 100~240V
      Output: 16V 0.7A
      Charge Process: -dV detect or >=5mV/cell
      Charger Indicator: Red-charging, Green-finish/idle
      Output Protections: Over current and over voltage and Short-circuit protection
      Safety Approval: CE,UL,CCC
      Size: 76 x 51 x 28mm
      Suit for Battery: 9.6-12Volt   (8~10Cells) 0.7~6.4Ah NIMH/NICD Batteries

External NiMH or NiCad charger useful for 9.6V, 10.8V and 12V packs, 9.6 volt pack charger, 10.8 volt pack charger, 12v nimh charger, 12 volt charger This is a sophisticated smart battery charger which will work with 8-cell, 9-cell and 10-cell nickel cadmium and nickel metal hydride battery packs. These 9.6V 10.8V and 12V have a universal AC input and so can be used in any country in the world.

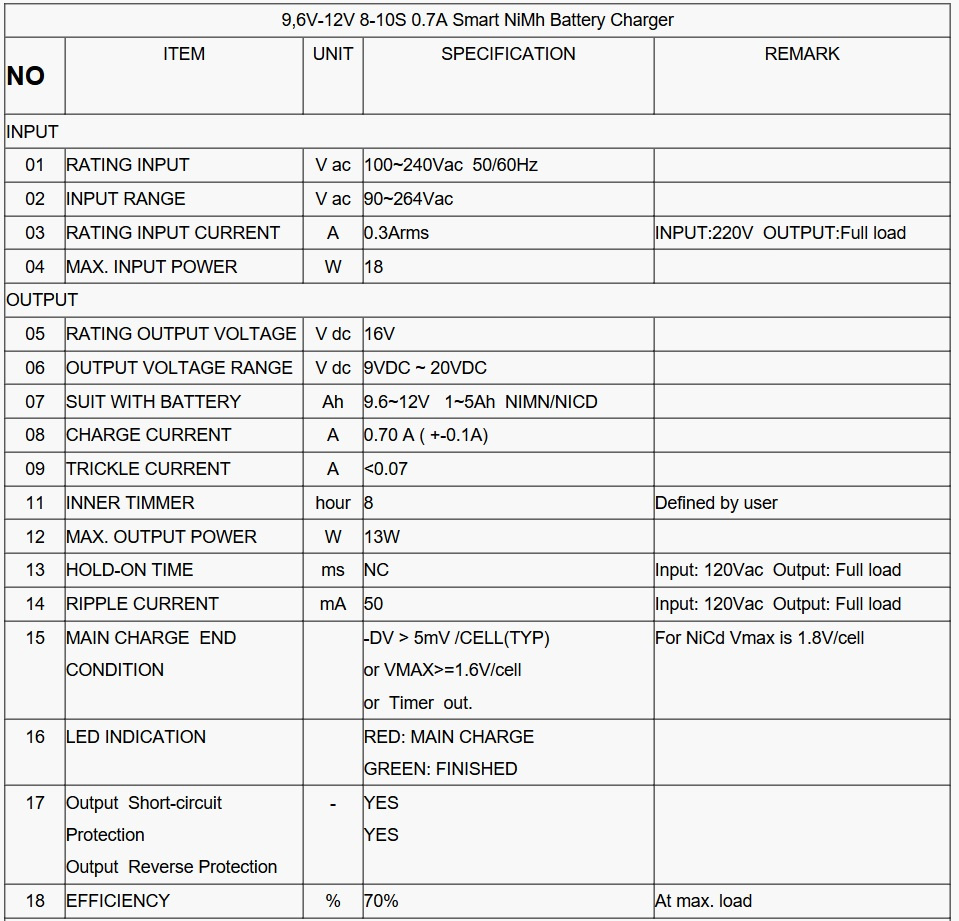

Input Voltage                           100-240Vac 50/60Hz
Output                                     16V 700mA
Suitable for                               8S-10S, 9.6V-12V 700mAh-6400mAh NiMh/NiCd battery packs
Charging mode                          Micro-processor controlled, Constant current -Delta V
Cutoff conditoin                         -DV>5mV/CELL(TYP)

VMAX>=1.6V/cell
                                                or timer


Protection                                 Short circuit, reverse polarity, overcharge, Output voltage protection keeps the output voltage from going too high to damage the battery, even in a fault condition.





Green-charger's engineers have dedicated to digital control power products for 13 years, specialize in the design and manufacture many types of NiMH, NiCd, Li-ion and Lead-acid battery charger and battery meter, and also is a professional in the face of high-end clients of the battery charger and battery meter. These products have high performance microprocessor technology to power your battery safely and quickly The main products are battery chargers that can be used in the Electrical-Vehicle, wheelchair, scooters, motorcycles, RC toy, RC flight, mobile light/lamp, LED lamp and many kinds of portable electrical device. The type of chargers have NiMH NiCd charger, lithium battery charger, lead-acid battery charger, LiFePO4 battery charger and so on. All sorts of 5W to 500W power charger all have production, is one of the most professional manufacturers of battery chargers in China.

After many years experiences, Green-charger made a super technology and rich experience of senior R&D engineers. We can develop battery chargers for NiMH, NiCd, Lead-Acid and Li-ion batter pack. The Battery chargers and Battery Management is our produces family also.

Our quality policy is: Providing high reliability of the products, to provide high satisfaction service. We are equipped with the advanced production and kind of test instruments, has the rich RoHS process production management, to ensure that every batch of products satisfy customers. Our products have CCC UL cUL CE VDE CB PSE FC EMC and so on.

We can according to the specific requirements of customers, customized all kinds of non-standard products to meet the needs
