0.9 Degree 42mm NEMA17 Stepper Motor for 3D Printer

Name: 0.9 Degree 42mm NEMA17 Stepper Motor for 3D Printer
Brand: all-electronics-online.com
SKU: 768449475
Availability: InStock
Rating: 4.5 (83 reviews)

Price:	US $ 5-8/Piece
Trade Terms:	FOB,EXW,others
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	JK42HM
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Body Color:	Black & Silver
Step Angel:	0.9degree
Inductance:	4-30mh
Motor Leads:	4/6
Resistance:	1.65-38.5 Ohm
Body Length:	34-48mm
Shaft Diameter:	5mm
Certification:	CE and RoHS

Product Description

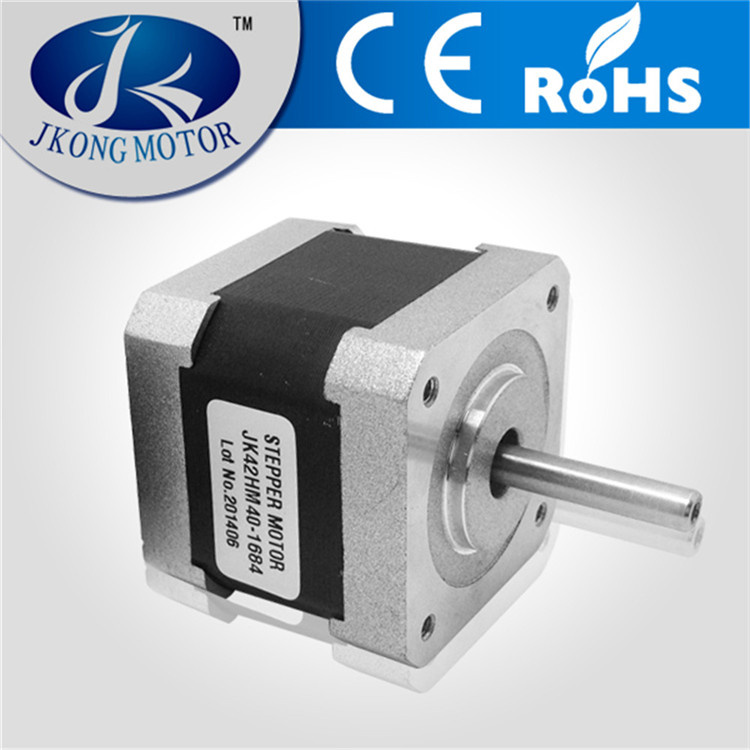

0.9 Degree 42mm NEMA17 Stepper Motor for 3D Printer

Genaral Specification:

Step Accuracy ------------------------------ ±5%
Resistance Accuracy ----------------------- ±10%
Inductance Accuracy ---------------------- ±20%
Temperature Rise -------------------------- 80°C MAX.
Ambient Temperature Range ------------- -20°C~ +50°C
Storage Temperature Range ------------- -30°C~ +60°C
Insulation Resistance ---------------------- 100M Ω MIN. 500V DC
Dielectric Strength ------------------------- 500V AC 1min
Radial Play --------------------------------- 0.02mm MAX. (450g Load)
End Play ------------------------------------ 0.08mm MAX. (450g Load)
Max. radial force --------------------------- 28N
Max. axial force ---------------------------- 10N

Electrical Specifications:

Model No.	Step Angle	Motor Length	Current /Phase	Resistance /Phase	Inductance /Phase	Holding Torque	Lead wires	Detent Torque	Rotor Inertia	Motor weight
Model No.	( °)	(L)mm	A	Ω	mH	kg.cm	No.	g.cm	g.cm	Kg
JK42HM34-0956	0.9	34	0.95	4.2	4	1.58	6	200	35	0.22
JK42HM34-0606	0.9	34	0.6	10	9.5	1.58	6	200	35	0.22
JK42HM34-0316	0.9	34	0.31	38.5	33	1.58	6	200	35	0.22
JK42HM34-1334	0.9	34	1.33	2.1	4.2	2.2	4	200	35	0.22
JK42HM40-1206	0.9	40	1.2	3.3	3.4	2.59	6	220	54	0.28
JK42HM40-0806	0.9	40	0.8	7.5	6.7	2.59	6	220	54	0.28
JK42HM40-0406	0.9	40	0.4	30	30	2.59	6	220	54	0.28
JK42HM40-1684	0.9	40	1.68	1.65	3.2	3.3	4	220	54	0.28
JK42HM48-1206	0.9	48	1.2	3.3	4	3.17	6	250	68	0.35
JK42HM48-0806	0.9	48	0.8	7.5	10	3.17	6	250	68	0.35
JK42HM48-0406	0.9	48	0.4	30	38	3.17	6	250	68	0.35
JK42HM48-1684	0.9	48	1.68	1.65	4.1	4.4	4	250	68	0.35

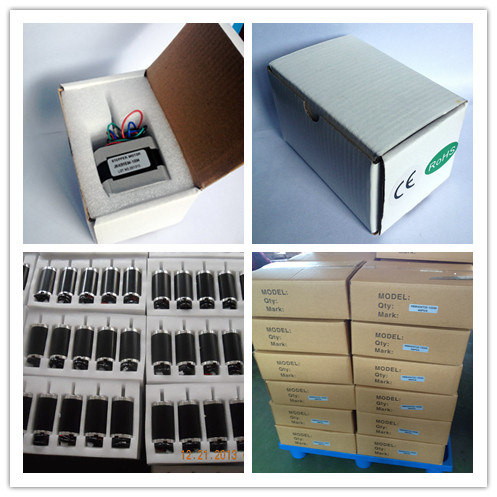

Packaging & Shipping

Our Packing:

Our Services:

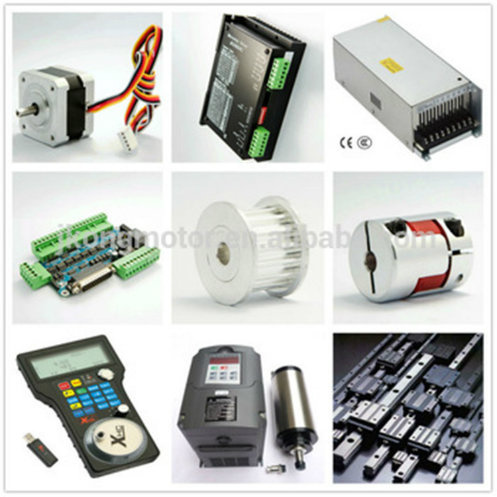

We aslo supply Stepper motor Kits, linear stepper motor, Dc motor, Brake stepper motor, Stepper motor with Encoder, Flexible Coupling, Pully, Power supply, Breakout Board and so on..

FAQ:

1.What's the delivery time?

For samples, 7-10 days For batch, 15-25days

2.How about modes of transportation?

Maritime Transport, Railway transport, Air transport

3.How are the quantities of your products?

Every product will be fully assembled and carefully tested before it's packed for shipment

4.Do you receive customization?

We accept customization. We will try our best to meet customer's requirements.

Contact Person: Alice

Tel: 0519-88372558

Changzhou Jingkong Motor&Electric Appliance Co., Ltd. Was found in 2005 located in High Technology Industry Zone in changzhou, China, has more than 100 staff and occupies an area of more than 3000 square meters. Now we are already passed RoHS and CE testing.

We offer excellent stepper motors, Stepper Motor Driver, DC Servo Motor, stepper Motor Power Supply, Stepper Motor Kit, CNC router. These are the best motors on the market. Stepper Motor is used on CNC router, CNC lathes, small to MID-sized CNC mills & milling machines, Laser Engravers and Laser cutters, Vinyl Sign Cutters, CNC Plasma Cutters, and CNC Foam Cutters. The stepper motor also has been used in precision telescope positioning systems and robots. Low inductance and high torque make these Motor the best choice.

We are an professional manufacturer for stepper motor, stepper driver, BLDC motor and DC motor.

We make hybrid stepper motor, hybrid gear stepper motor, hybrid stepper motor driver, brushless DC motor. Spindle motor,

For stepper motor mainly have 20mm(8), 28mm(NEMA 11), 35mm(NEMA 14), 39mm(NEMA 16), 42mm(NEMA 17), 57mm(NEMA 23), 60mm (NEMA24), 86mm (NEMA 34), 110mm (NEMA 42) and so on.

Competotive price and high quality. Hope can cooperate with you.
