0.9 Degree NEMA 23 76mm Stepper Motor Outboard Motor with Connector and Power Supply

Name: 0.9 Degree NEMA 23 76mm Stepper Motor Outboard Motor with Connector and Power Supply
Brand: all-electronics-online.com
SKU: 837886605
Availability: InStock
Rating: 4.8 (124 reviews)

Price:	US $ 16-26/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	57HM5315
Current:	1.5A
Holding Torque:	12.5kg.Cm
Step Angle:	0.9 Degree
Rated Volage:	6.75V
Resistance/Phase:	4.5Ω
Inductance/Phase:	10mh
Rotor Inertia:	440g.Cm2
Weight:	1.05kg
Detent Torque:	600g.Cm
No Of Leads:	6
Number Of Stator:	Two-Phase
Excitation Mode:	HB-Hybrid
Operate Mode:	2 Phase
Type:	Stepper Motor
Certification:	Ce
Brand:	Sjie

Product Description

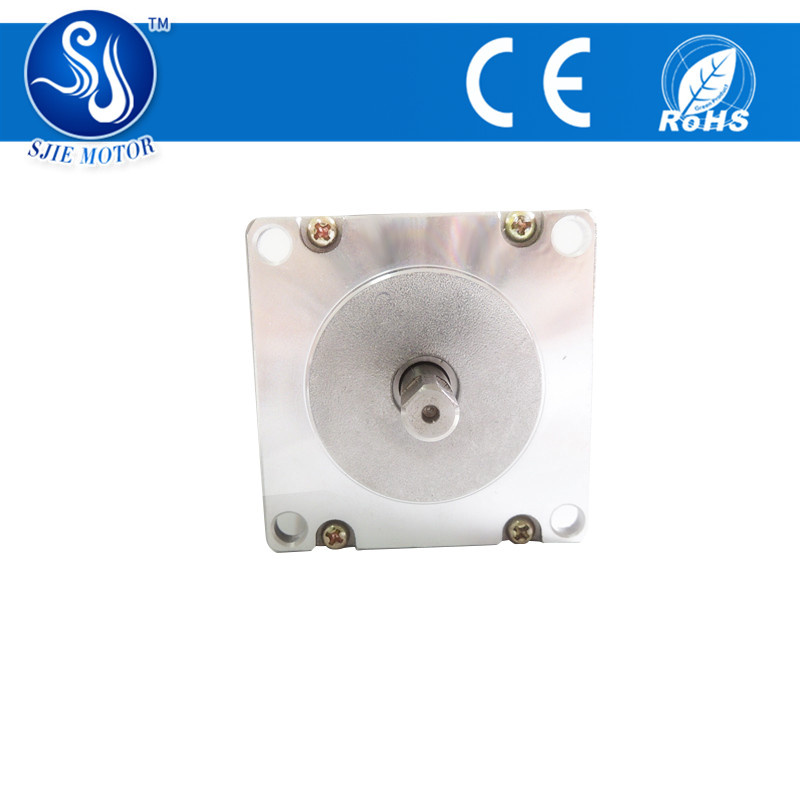

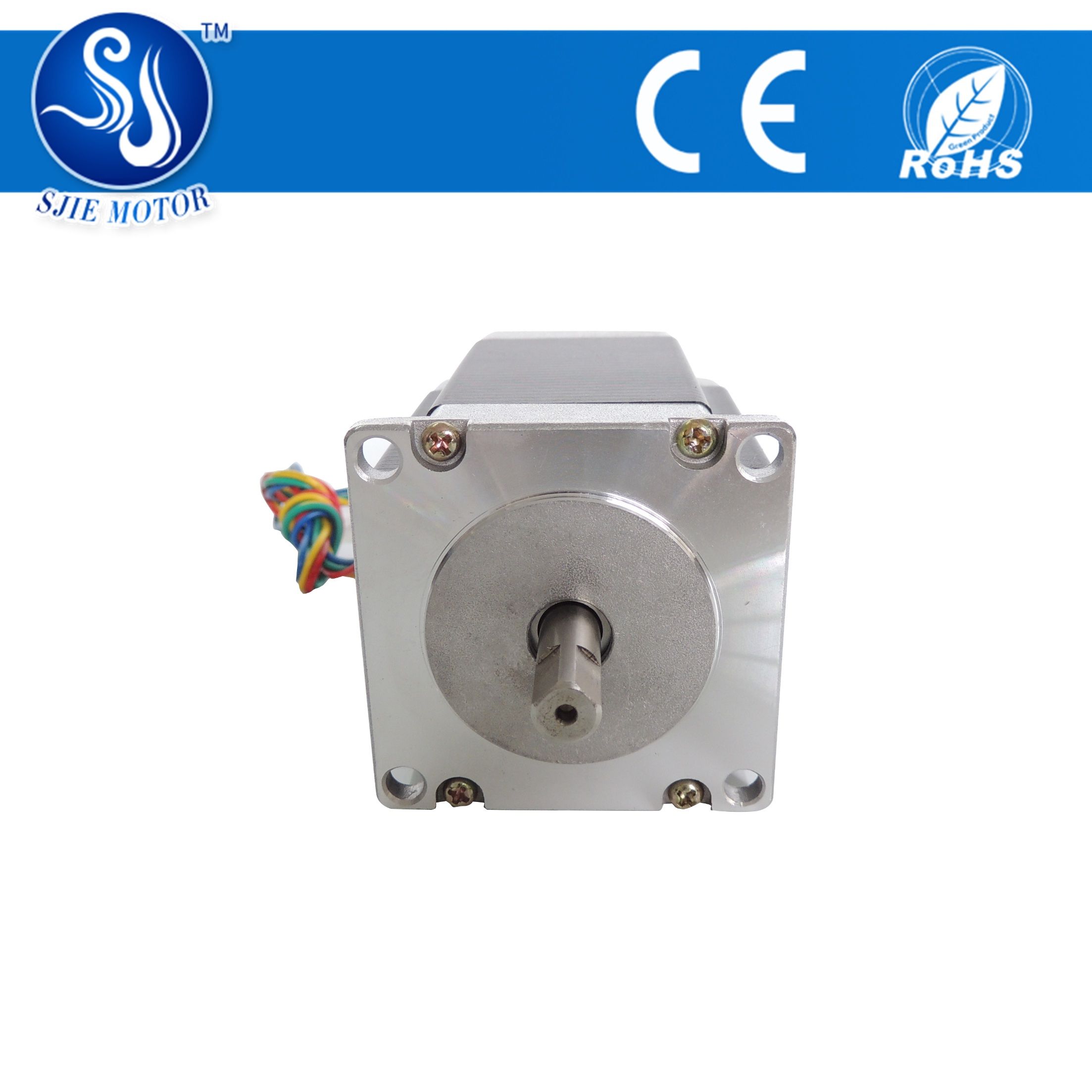

Products photos:

Product Description:

0.9degree Size 76mm High Torque Hybrid stepper motor.

76mm size stepper motor,

NEMA23 57 stepping motor,

2 phase 76mm stepper motor

Stepper motor 76mm size

Hybrid Stepper Motors

1) We can develop customer design version

Specifications:

item	Specification
Temperature Rise	80°C Max
Insulation Resistance	100MΩ Min., 500VDC
Step Angle Accuracy	±5%(full step,no load)
Resistance Accuracy	±10%
Amibent Temperature	-20°C~+50°C
Inductance Accuracy	±20%
Dielectric Strength	500VAC for one minute

Electrical Specific
Series	Step	Motor	Rated	Phase	Phase	Holding	Detent	Rotor	Lead	Motor
Model	Angle	Length	Current	Resistance	Inductance	Torque	Torque	Inertia	Wire	Weight
	(° )	(mm)	(A)	(Ω)	(mH)	(kg.cm Min)	(g.cm Max)	(g.cm²)	(No.)	(g)
57HS1810	0.9	41	1.0	5.2	6.2	2.4	250	150	6	470
57HS1806	0.9	41	0.62	12	28	3.2	250	150	4	470
57HS1820	0.9	41	2.0	1.2	3.0	3.2	250	150	4	470
57HS2225	0.9	45	2.5	1.0	3.0	6.2	280	190	4	520
57HS2806	0.9	51	0.6	13	34	7.0	300	230	4	590
57HS2825	0.9	51	2.5	1	4	7.0	300	230	4	590
57HS3215	0.9	56	1.5	3.2	6.5	8.2	350	280	6	680
57HS3225	0.9	56	2.5	1.3	5.2	10.0	350	280	4	680
57HS3230	0.9	56	3.0	0.8	2.8	10.0	350	280	4	680
57HS3242	0.9	56	4.2	0.4	2	10.0	350	280	4	680
57HS4010	0.9	64	1.0	7.5	28.0	11.0	500	380	4	850
57HS4025	0.9	64	2.5	1.5	5.8	11.0	500	380	4	850
57HS4030	0.9	64	3.0	0.8	3.0	11.0	500	380	4	850
57HS5315	0.9	76	1.5	4.5	10.0	12.5	600	440	6	1050
57HS5325	0.9	76	2.5	1.8	8.2	15.0	600	440	4	1050
57HS5330	0.9	76	3.0	1.0	4	15.0	600	440	4	1050
57HS5830	0.9	82	3.0	1.2	5	17.0	680	440	4	1050
*Note:We can manufacture products according to customer's requirements.

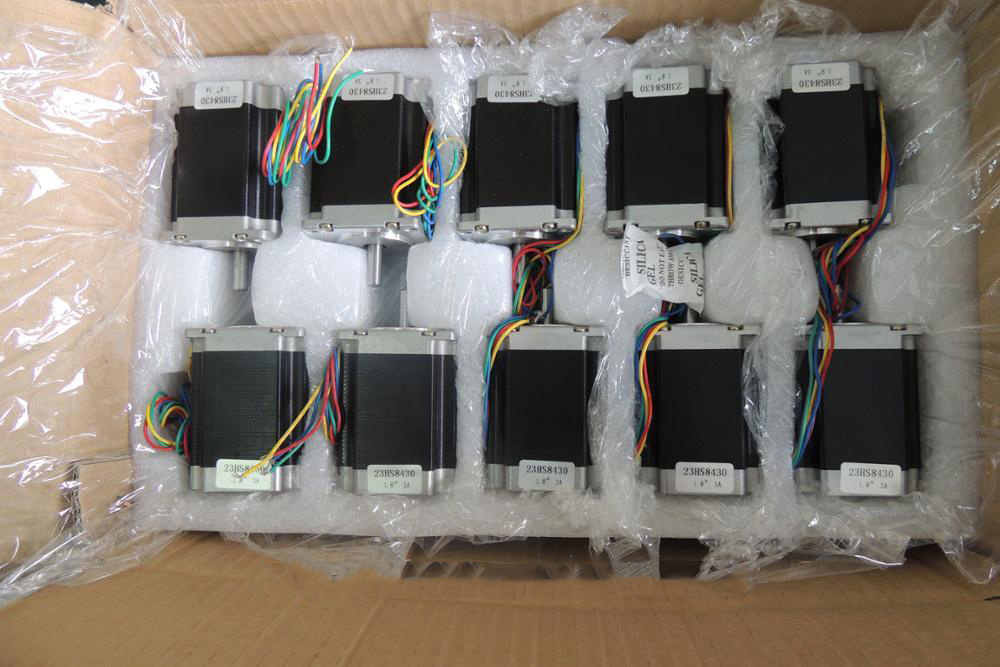

About our Packing:
