| Prod Model: |
DH-20-J09SX-01-001 |
| Copper Pins: |
Copper Alloy (Gold-Plated 4u) |
| Rated Current (a): |
5A |
| Operating Voltage (AC.V.RMS): |
400V |
| Working Temperature: |
-40°c~80°c |
| Contact Diameter And Number: |
1.0*9 |
| Hardware: |
Zinc Alloy (Pearl Hard Chrome) |
| Flammability Rating: |
UL94-V0 |
| Durability: |
More Than 500 Times |
| Cabel Specification: |
0.15mm²-0.2mm²/26-24 AWG |
| Insulation Resistance: |
>500 MΩ |
| Gender: |
Female |
| Application: |
LED Display Screen and Industrial Equipment |
Product Description

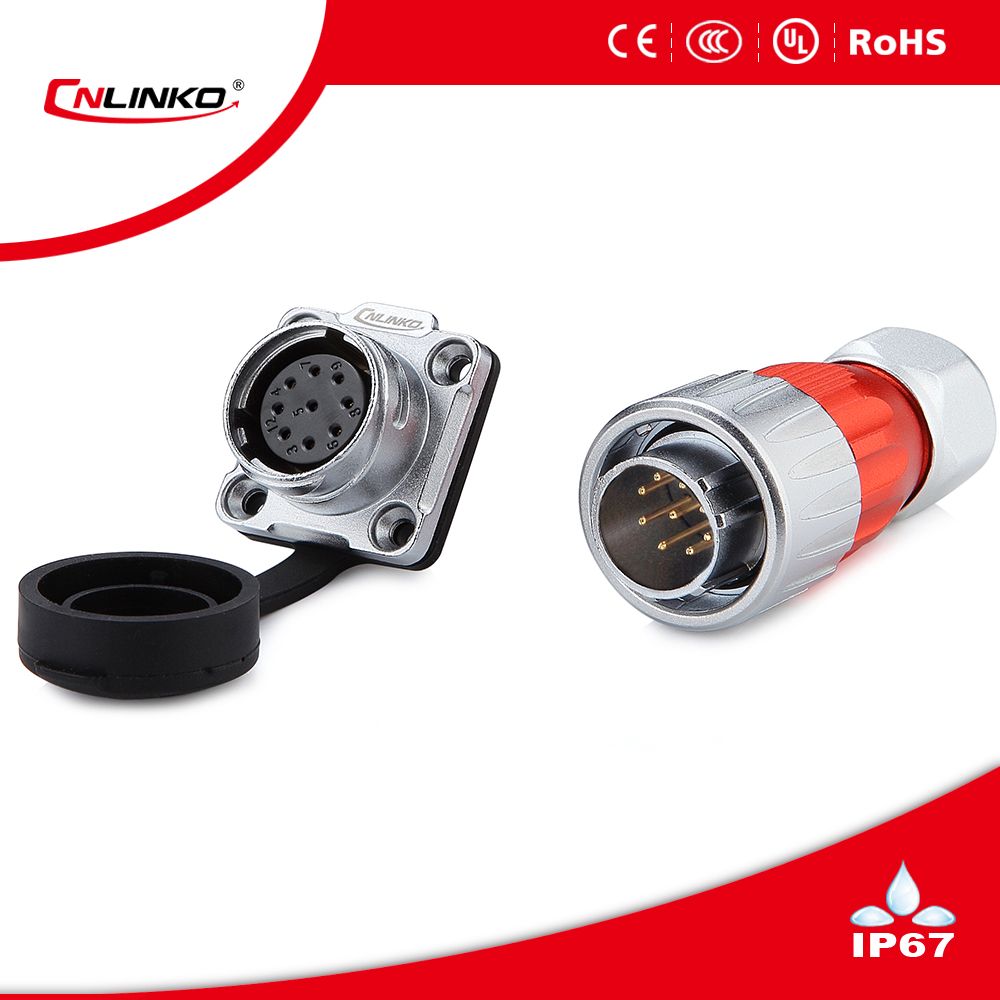

9 pin Metal female socket signal and power connector
Products picture website:
http://www.cnlinko.com/admin/kindeditor/attached/image/20160727/20160727071103_21380.jpg
DH20 serials waterproof connector, with unique wave spring design, standard card slot, rotary locking type and fashionable design to meet customer's demands, widely be used in LED display screen, industrial equipment, stage lighting equipment and other field.
1.Three positioning, designing with wave spring knob, the outer ring card point locking snap engaged with the socket, easy to operate with uniform intensity engaging, and keeping the current and signal transmission more stable.
2.Using wave spring structure,making elastic wave spring stranded automatically while connection.
3.Using outer alloy ring, keeping the plug and socket more stable while closed , making the power supply or signal transmission more stable and comparable while connection.
4.Using tail jaws designing, to tighten and twisted the wire more effective, improving the waterproof rating ,tensile strength , and making the nuts anti-back effectively.
5. Waterproof clip coil designing, making the products have better waterproof rating while closed.
6. Waterproof IP65/IP67 while connection.
| Cable specification: | 0.15mm²~0.2mm²/26-24 AWG |
| Diameter range: | Φ5.5mm~Φ7mm |
| Contact diameter × number: | Φ1.0×9 |
| Rated Current: | 5A |
| Operating voltage (AC.V.rms): | 400V |
| Contact resistance: | <5mΩ |
| Temperature rise: | / |
| Withstanding Voltage(AC.V)1 minute: | 2500V | Insulation resistance: | >500MΩ |
|---|
| Protection level: | IP65/IP67 | Durability: | ≥500 times |
|---|
| Working temperature: | -40ºC~80ºC | Connecting mode: | 1/4 Bayonet connector |
|---|
| Assembly wire: | solder | Housing: | Zinc alloy |
|---|
| Hardware: | Zinc alloy(pearl hard chromium) | Copper needles: | Copper alloy (gold-plated 4U) |
|---|
| Waterproof circle: | Silica gel | Flammability rating: | UL94-V0 |
|---|
Packing & Payment term & Shippment
Package: 10PCS/Small Box, 100PCS/Middle Box, 240PCS/Carton
Payment term: T/T or western uion (100% full payment before shipment)
Delivery time: 3-5 working days after got your payment
Shipping way: By air, by sea or by express (depends on customer's request)
FAQ:
Q1: What are connectors?
A1: Connectors are connected to the electrical and mechanical components of electrical circuits
Q2: What classes do connectors have?
Shape | Frequency | Function |
| circular | high-frequency | for printed board; cabinets; |
| rectangular | low frequency | socket connectors; for audio equipment, power, signal, etc.
|
Q3: Why to choose CNLINKO? Any advantages?
A3: The answer is Yes. There are 5 major advantages (reasons).
1) Mutual Benefits: Our connectors are with high quality and competitive in price.
2) Customize: We can make the product as per your special request, Shape and Quality can meet your request.
3) OEM: Design your packing box(≥1000PCS per model).
4) Mix Order: We accept mix order, different model and small quantity order.
5) high quality: Our products have passed UL,CUL,CCC,CE and ROHS certification.
Using PBT material that import from abroad, carrying stable,compression, anti-explosion and anti-deformation quality; Using Zinc alloy material against high frequency noise and electromagnetic interference Use gold-plated contact with high performance of corrosion resistance and electrical conductivity effectively deal with temperature rise.
Q4: Can I order one piece for sample testing usage?
A4: Yes, we recommend you to check the sample before order. Please order the sample from us directly.
Q5: May I have your catalogue and price list for trial order in MOQ quantity?
A5: All our products were shown on alibaba, please have a detailed looking and choose the interested models from our site, sending us inquiry directly, we'll quote you accordingly right away.
Q6: Is there cheap shipping cost to import to our country?
A6: For small order, express will be best. As for bulk order,sea ship way is best but takes much time.
For urgent orders, we suggest via air to airport plus our ship partner send to your door.
Q7:Can we get support if we have our own market position?
A7: Pls inform us your detailed mind on your market demand, we will discuss and propose helpful suggestion for you, to find the best solution for you.
