90 Degree 110 IDC CAT6 Keystone Jack for Patch Panel

Name: 90 Degree 110 IDC CAT6 Keystone Jack for Patch Panel
Brand: all-electronics-online.com
SKU: 791321835
Availability: InStock
Rating: 4.4 (40 reviews)

Price:	US $ 0.4-1.5/Piece
Min Order:	2000/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	SL-6JACK02+UTP90
Standard:	T568-B
Usage:	Workstation
Type:	Wired
Support Network:	Ethernet
Information Content:	Data
Certification:	RoHS
Condition:	New

Product Description

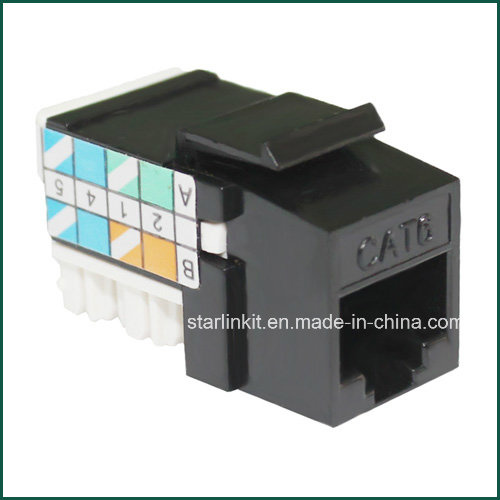

Cat 6 Keystone Jack 90 Degree, 110IDC

Feature

1. Keystone Jack, Cat.6 UTP type, fit for connecting application of communication ports in working area.

2. A compact & ingenious designing, with the punching sequence direction marks on the punching cover of the keystone jack, which can provides a correct and quick guide for punching and connecting operation. And the fastener hats will make sure the cable can be fixed reliably in the IDC clips.

3. According to the standard of ISO/IEC 11801:2002 Class D & ANSI/TIA/EIA 568-B.2-1 CAT.6, T568A punching sequence and T568B punching sequence are both compatible.

4. Connection type: FCC connector for RJ45 patch cord and IDC for 4-pair Cat.6 cables.

5. Fitting for the Cat.6 general cable distribution system. Compatible for Cat.6 systems.

Technique Characteristics:

1. Material of plastic parts: PC UL94V-0

2. Material of the FCC connectors' 8 pin of the RJ45 jack: Phosphor bronze with golden plated 3U,6U,15U,30U,50U at option. Inserting duration: 750 times.

3. Material of the IDC clips: tinned phosphor bronze pins. Fit for 22AWG/23AWG/24AWG cables. Punching duration: 250 times.

4. Punching tools:110 punching tools

5. Testing condition of transmitting capability: 250MHz

ORDERING INFORMATION:

Product Code	Description	Packaging	Carton Size	Carton Size
SL-6JACK02+UTP90	Cat 6 Keystone Jack 90 Degree, 110IDC	1000 PCS	*402953 cm*	13kg

Star Link IT Co., Ltd was founded in 2007, one of the leading suppliers of LAN Cables, Fiber Optic Cables, HDMI Cables, USB Cables, Patch Cords & CCTV Cables in China. Over the years, we have been serving customers from over 15 countries & regions, helping them lower their buying costs for copper data cabling as well as fiber optic products.

Star Link IT Co., Ltd leads the Cables & Wires manufacturing services industry in technical expertise and operational experience. Through strategic movement and an established long-term customer base, we have deep insight into the needs of the market, the technical convergence requirements and the competitive challenges that drive the need for continuous reevaluations of the supply chain. These insights drive our strategy of providing end-to-end solutions for networking and optical products.

Over the years, we have brought in advanced product facilities and built up a well-trained, qualified team, which continuously guarantees state-of-the-art quality and first-class service. We are young but dynamic, creative, flexible and continually striving to provide our customers with easy solutions. We pride ourself to partner with a certain number of the cross-regional top 500 companies.

Our goal is to be your very first source for data cabling.
