| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Impedance: |
75 Ohm&50 Ohm |
| Business Type: |
OEM &ODM |
| Lead Time: |
7-10 Days |
| Certification: |
ISO 9001:2008 |
| Rhos Compliant: |
Yes |
| Port: |
Shenzhen ;HK |
| Type: |
Generally Coaxial Connector |
| Coupling Mechanism: |
Double Bayonet Plug-in |
| Brand: |
Renhotec |
| Shape: |
Optional |
| Medium Pressure: |
Optional |

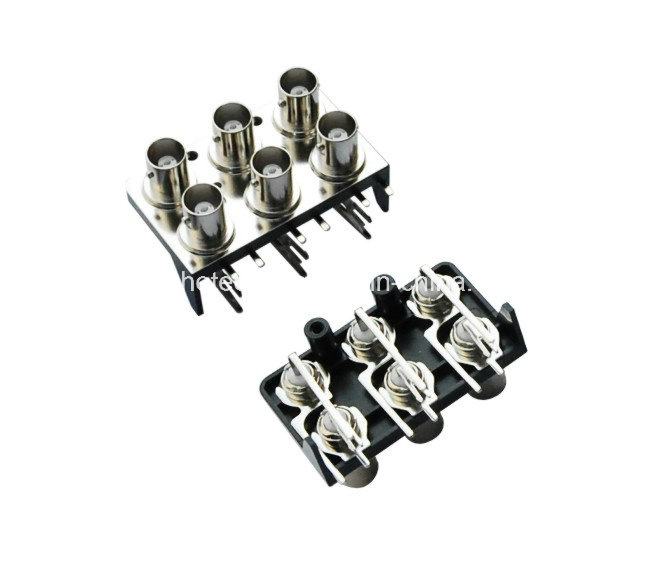

Product Description
Features & Benefits
. |
Bayonet coupling mechanism provides quick mating and unmating |
. |
50 Ω and 75 Ω impedance designs allow customers to match impedance to system requirements |
. |
50 Ω and 75 Ω connectors are intermateable to ensure non-destructive mating |
. |
Three grades of connectors are available for military, industrial and commercial applications |
Applications
. |
Antennas |
. | Automotive |
. |
Base Stations |
. |
Broadcast (75 Ω) |
. |
Cable Assemblies |
. |
Cable Modems |
. |
Components |
. |
Computers/LANs | . |
Instrumentation |
. |
Oscilloscopes |
. |
Medical Equipment |
. |
Mil-Aero |
. |
Radios |
. |
Satcom |
. |
Surge Protection |
. |
Telecom |
|
|
|
|
50/75 Ω Specifications
Electrical |
Impedance |
50/75 Ω nominal |
Frequency Range |
0-4 GHz with low reflection |
Voltage Rating |
500 volts peak |
Dielectric Withstanding Voltage |
1,500 volts rms |
VSWR |
M39012 straight connectors: 1.3 max 0-4 GHz
M39012 right angle connectors: 1.35 max 0-4 GHz |
MIL-C-39012 Contact Resistance |
Center contact: 1.5 mΩ; Outer contact: 0.2 mΩ |
MIL-C-39012 Insulation Resistance |
5,000 MΩ |
MIL-C 39012 Braid to Body |
0.1 milliohm |
MIL-C-39012 RF Leakage |
-55 dB min at 3 GHz |
MIL-C-39012 Insertion Loss |
0.2 dB min at 3 GHz |
Mechanical |
Mating |
2-stud bayonet coupling per M39012 |
Braid/Jacket Cable Affixment |
All crimps are hex braid; clamps are screw-thread net and braid clamp |
Center Conductor Cable Affixment |
Crimps are crimp or solder; all other are solder only |
Captivated Contacts |
All crimps unless specified otherwise |
Cable Retention |
Crimps: 20-100 lbs; All others: 30-70 lbs |
Material |
Male Contact |
Brass |
Female Contact |
Beryllium copper or phosphorous bronze, silver or gold-plated |
Other Metal Parts |
Brass, nickel finish; M39012 is silver finish |
Insulator |
TFE, copolymer of styrene, glass-TFE (hermetically sealed) |
Crimp Ferrule |
Copper/brass |
Environmental |
Temperature Range |
TFE insulators: - 65°C to + 165 °C
Copolymer of Styrene: - 55°C to + 85°C |
Weatherproof |
Clamps with clamp gaskets; crimps with heat-shrink tubing |
Quality: Quality is the most important thing in our company.We use only the best quality(original) components to ensure the standard of our product range is of the highest caliber.All products we sold out are strictly selected and tested by our QC department.
Warranty: We provide comprehensive after-sales service,including quality service,guidance services,We focus on customer needs in every detail. Please contact us if you need our detail warranty term.
Payment: We accept payment via TT,Western Union, Paypal and so on.
Shipping: We offer as many shipping options as possible.including DHL,UPS.TNT,Fedex and EMS.
RENHOTEC GROUP, established in May of 2005, specializes in operating businesses of precise Board to Board, Wire-to-board connectors, Solar photoelectric connectors, RF coaxial connectors, Industrial Terminal blocks and cable assemblies for computer & peripheral devices.After 10 years of rapid development, it owns two factories at present:Dongguan RENHOTEC Hardware Electronics Co., Ltd and Hubei RENHOTEC hardware Electronics Co., Ltd.Since its foundation, the company sticks to the principle of specialization and tries its best to supply customers with products of high quality at competitive prices, regarding the development and design of metal and plastic molds, precision high-speed punch molding, precision die casting molding, zinc (aluminum) die casting, precise plastic injection molding and automatic assembly with the support of a skilled R&D and management team.
Since company foundation of the, we emphasize canonical management and high-quality requirements.We has already acquired ISO9001, ISO14001, QC080000 and TS16949 international quality, environment and management systems certification.The company main ten series products obtained American UL & cUL certification, with the No.E248993, the solar connector components acquired Germany TUV certification, All items are in line with EU RoHS and REACH environmental requirements.
Our quality policies:Innovation and development, continual improvement, quality foremost, and customer satisfaction.
Our environmental policies:Stand to environmental protection laws and regulations, devote to pollution treatment and environmental protection, reasonably allocate and utilize resources, manufacture green products, strengthen environmental protection awareness, and ceaselessly improve environment.
Our managing principles:Good quality, loyalty and common prosperity.
