90 Degree Compression Connector RF Connector

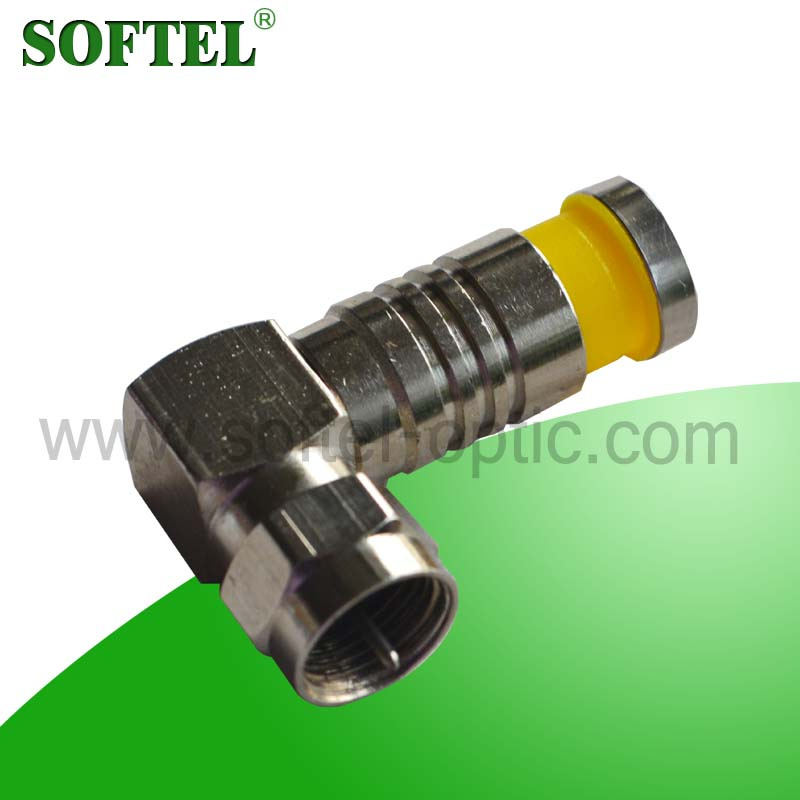

Name: 90 Degree Compression Connector RF Connector
Brand: all-electronics-online.com
SKU: 688161672
Availability: InStock
Rating: 4.3 (144 reviews)

Price:	US $ 0.26-0.267/Piece
Trade Terms:	FOB,CIF,CPT
Min Order:	500/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	90 degree compression connector
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Frequency Range:	5-1000MHz
Power Pass:	All Port Power Pass
Color:	Brass
Uninterrupt Switch:	for Easy Maintenance
F-Connector:	5/8"
Delivery:	15 Days
MOQ:	500 Pieces
Type:	Connector for RG6
Coupling Mechanism:	Connector for RG6
Application:	Coaxial Cable
Brand:	Softel ,OEM, ODM

Product Description

1. Hardline cable to port entry connectors provide solid interface while preserving impedance characteristics
2. Wide bandwidth for use in broadband systems
3. Center pin "Funnel Guide" reduces installation time and connector mating guesswork
4. Standard pin length alcommodates all amplifer and multitap mating requirements
5. Notched center conductor cutting guide assures accurate cable center conductor length
6. High return loss for excellent digital signal performance
7. Solid construction and intergral sleeve provides optimum RG shielding
8. High retention center conductor seizure mechanism
9. Superior power capability provides a minium of 20 Amps current capacity on all connectors and adapters
10. No-twist center conductor seizing mechanism eliminates radial stress ,ensuring consistent application without cable damage
11. O-ring sealed ,watertight. compression RF connector

RG11 90 Degree Compression Connector

1. Manfactured of high quality brass with nickel plating of superior protection against v-corrosion
2. Designed to be watertight for outdoor applications
3. Offer excellent RFI shielding properties
4. Easy-grip free-spinning nut for fast installation and installer comfort
5. Universal for standand. Tri-shield or quad-shield RG6 coaxial cable

Parameter:

*Impedance 75 Ohms
*High Return loss
*Low Insertion Loss
*Operating Voltage 90V (at 60 Hz continuous AC)
*Operating temperature -40° F to +140° F

Hangzhou Softel Optic Co., Ltd. (Brand: SOFTEL) was established in 2006, which Located in the HangZhou Hi-Tech Development Zone. Taking advantage of the modern broadcast and optic fiber communication technology, we are specializing in R&D of CATV system equipment, and leading manufacturer of HFC broadband Optic Transmission equipment with strong R&D capability in this field.

We have more than 100 staff in which 10% of senior technicians. It has more than 1, 000 square meters standards production assembling line, we have strict QC procedure, each unit of our products will go through 3 layer QC procedure, material checking before production, stability and performance testing after production, packing checking before delivery.

Currently, we supplying to numerous agents, integrated dealers and equipment producers all over the world, most of our products move to South America, Russia and north European countries.

Through keen international business competition in good faith, all of our staffs feel big accomplishment & work under heavy responsibility. In addition, we are much proud of providing our invaluable customers with our high quality, high reliability, high efficiency, competitive products.
