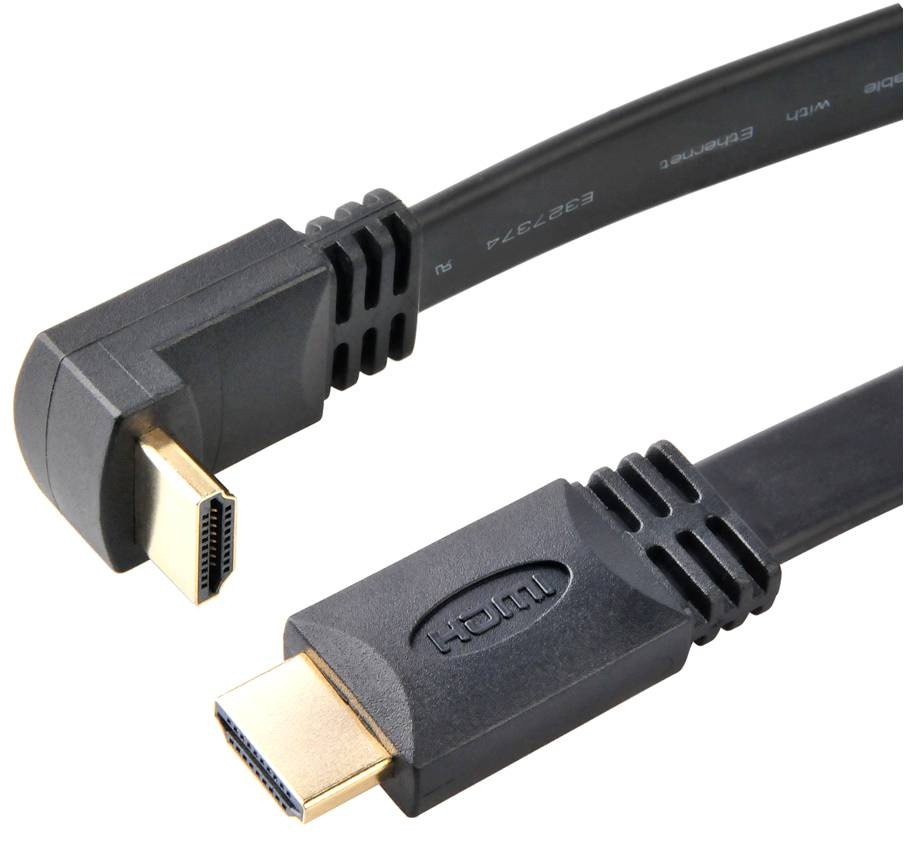

90 Degree Flat HDMI Cable (YLC-HR306)

Name: 90 Degree Flat HDMI Cable (YLC-HR306)
Brand: all-electronics-online.com
SKU: 721783335
Availability: InStock
Rating: 4.7 (103 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	100/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	YLC-HR306
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Multimedia, DVD Player, Computer
Certification:	RoHS, CE
Connector:	HDMI

Product Description

Features:

1, Center conductor: High quality digital signal delivered by oxygen-free copper
2, Insulation: Using foamed PE as the insulation, ensure image quality and transmit image signal with stability.
3, Inner shield: 100% Aluminum/Mylar foil shield, prevent high frequency noises and interference
4, Outer shield: 95% copper braid shield, prevents most low frequency noises and interference.
5, function: Suitable for HDTV, home theater, DVD player, projector, PS3, xBox 360 and other HDMI devices.
6, High density triple shielding for maximum rejection of EMI and RFI
7, Transfer speed: 10.5Gbps
8, connectors: 24K gold-plated to ensure superior signal transfer and lifetime of maximum performance
9, Color optional: Pearl golden, Matter black, Silver, Golden, Shiny black, white porcelain, black porcelain, chrome

SPECIFICATIONS
Conductors	High purity Oxygen Free Copper
Insulation	Outer Jacket with protective nylon sleeve. (color optional)
Contacts	24K Gold Plated
Connectors	Metal shell type (optional)
Available lengths	3FT to 50FT ( 1m,1.8m,3m,5m,10m,15m ) optional
Available terminations	HDMI,19PIN,Male to Male, Version 1.4v, up to 1440P
Available gauge	24/26/28/30AWG(optional) OD:6.2/7.3/9.0mm
Certification	RoHS,UL,CE
Shielding	AL+ ML+ Braiding+ Ferrite
AWG	24/26/28/30

ELECTRICAL
Quality Control	operation according to regulations & rules in ISO9001:2008
Voltage	DC300V 5M ohm/10ms
Insulation Resistance	10M min
Contact Resistance	2 ohm max
Working Temperature	-25C-80C
Data transfer rate	10.2Gbps Max
Differential Impedance	100±10Ω(TDR)
