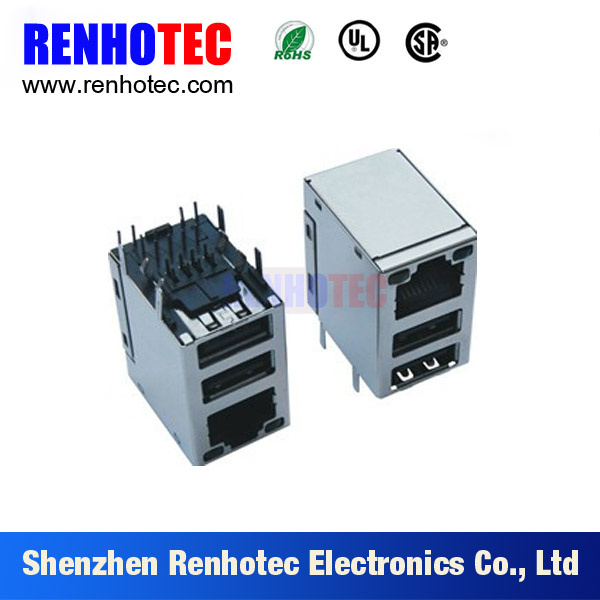

90 Degree Network Modular Jack RJ45 Connectors with Dual USB

Name: 90 Degree Network Modular Jack RJ45 Connectors with Dual USB
Brand: all-electronics-online.com
SKU: 724297455
Availability: InStock
Rating: 4.5 (30 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,EXW,CIF
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	RH-rj45
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Business Type:	Manufacturer
Connector Type:	RJ45 Jack Connector
Gender:	Female
Positions:	6/8/10 Pins
LED:	Optional
Shielded:	Yes
Application:	Battery
Installation Mode:	Clamshell-Type T-Flash Jack
Type:	Multi-Tube Jack
Interface Type:	USB
Shape:	Rectangular
Production Process:	Injection
Customized:	Non-Customized
Working Frequency:	High Frequency
Feature:	Moistureproof
Cards Support:	Dual Card

Product Description

90 Degree Network Modular Jack RJ45 Connectors with Dual USB

»Description:

1000Base-TX RJ45 Tab-up with LEDs Integrated magnetics connector (ICM), designed to support

Applications, Such as Network Interface Cards (NIC), LAN-on Motherboard (LOM), and PC

Applications.

»Features and Benefits:

* Single port (1X1) Tab-up RJ45 with internal magnetics.

* RoHS-6 peak wave solder temperature rating 260 0C.

* Suitable for CAT 5 & 6 Fast Ethernet Cable or better UTP.

* Internal magnetics are 100% electrically tested for HI-POT and functionality.

Product Series	RHT-620
Application-LAN	ETHERNET(NON POE)
AutomDX	YES
Bst Circuit	YES
Configuration RX	T,C
Configuration TX	T,C
Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Cores Per Port	4
Diodes	NO DIODES
LED Option	WITH/WITHOUT LEDS
Latch	UP/DOWN
Number of Ports	SINGLE PORT WITH USB
PCB	FR4
PCB Mount Angle	SIDE ENTRY
PCB Retaining Post	T POST
Pin Type	THT SOLDER
RoHS Compliant	YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search	YES
Shield EMI Tabs	WITH OR WITHOUT
Speed	10/100/1000/10G BASE-T
Temperature	0 TO 70°C/-40 TO 85°C
Turns Ratio RX	1CT:1
Turns Ratio TX	1CT:1

»Material Specifications:

* Insert:Plastic:Reinforced FR PA66-B30 UL94V-0.

* Contact Area:Phosphor Bronze, Gold Plated, 6U~50U Optional.

* PCB Terminal:Phosphor Bronze, Tail-Tin over Nickel

* Housing:Reinforced FR PA66-B30 UL94V-0.

* Metal Shell:Copper Alloy, Nickel Plated

* Case:Phenolic, UL94V-0 Black.
